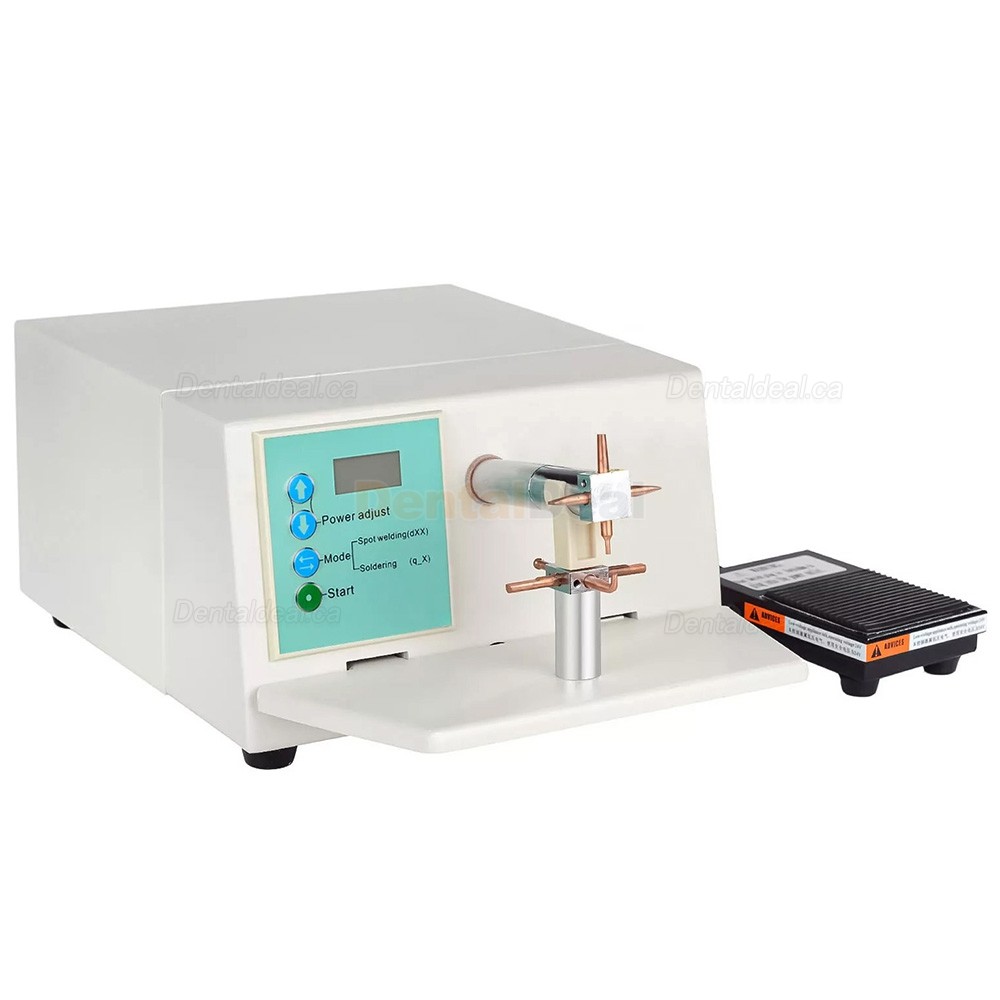

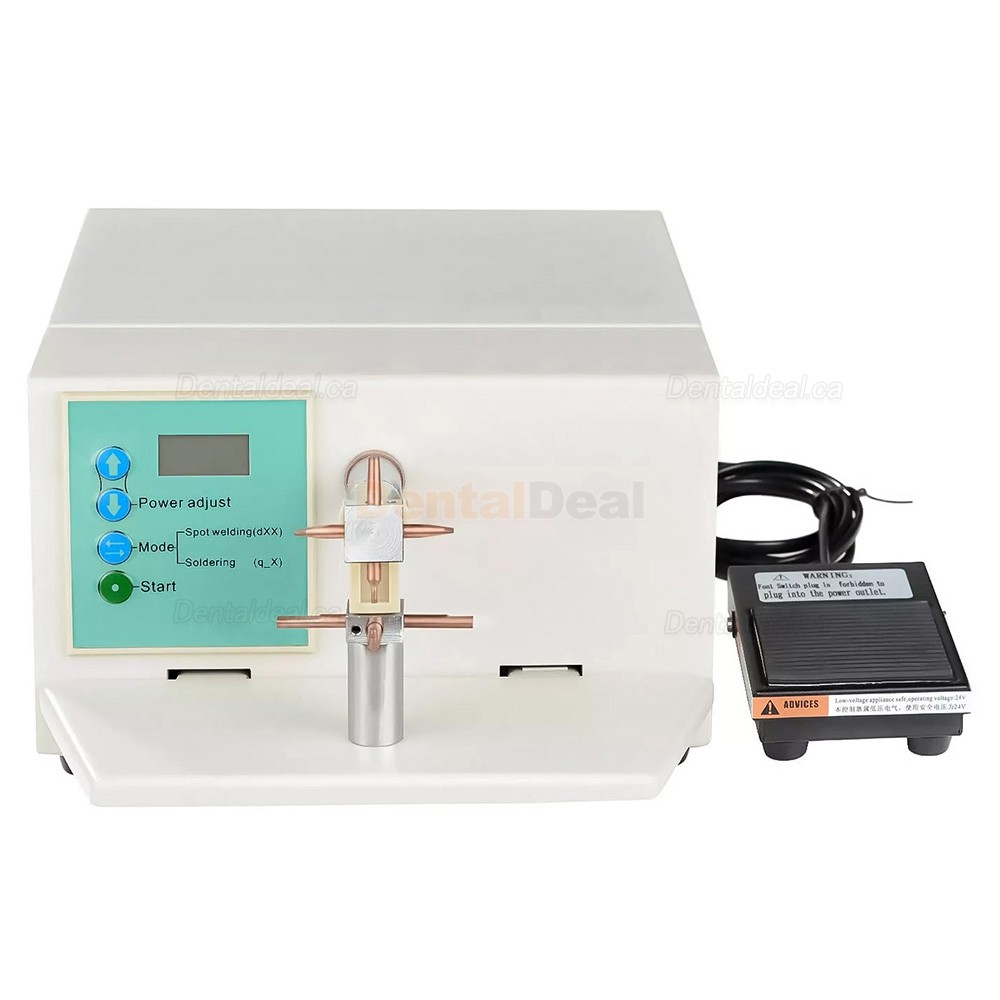

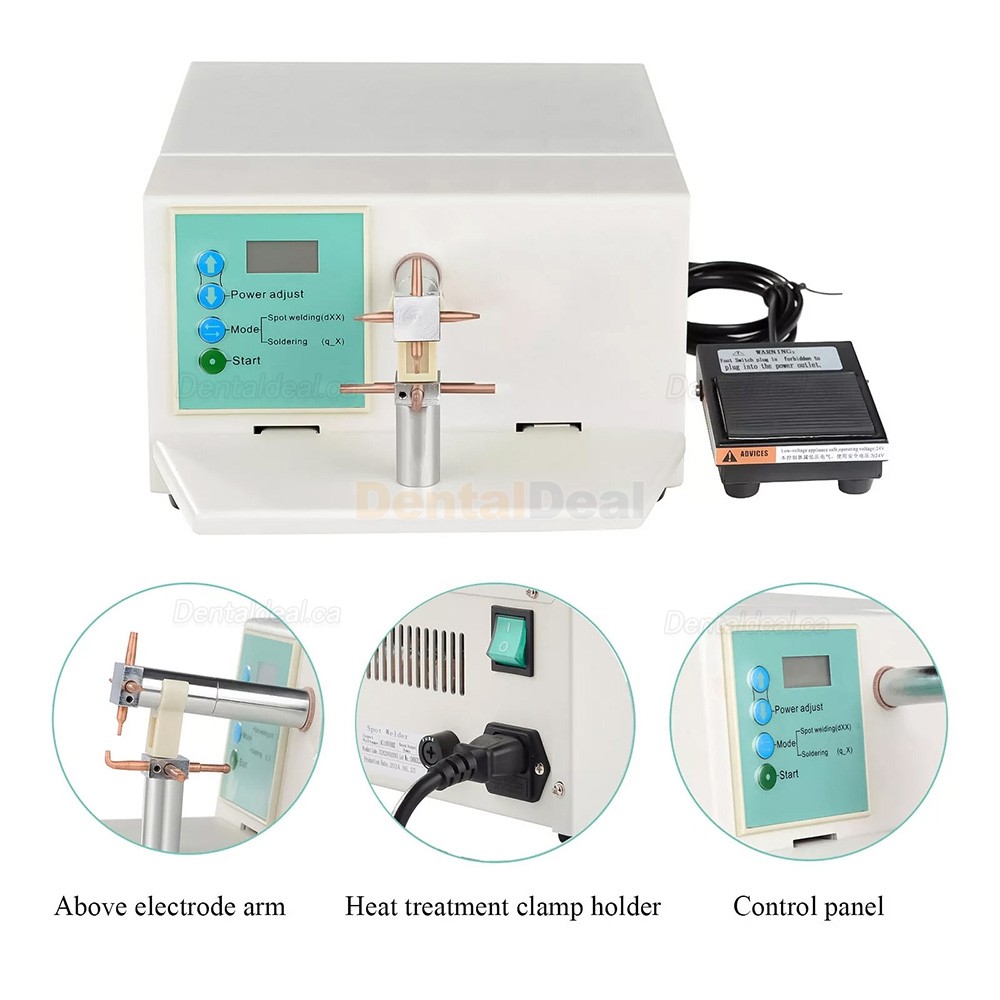

ZoneRay® HL-WDI Dental Spot Welding Machine Orthodontic Spot Welder

ZoneRay® HL-WDI Dental Spot Welding Machine Orthodontic Spot Welder

Specified Use:

HL-WD I: used for welding stainless steel wire, stainless steel sheet in dental orthodontics and treatment.

HL-WD II/ HL-WD III: multi-functional spot welding used for welding stainless steel wire, stainless steel sheet, also be used for heat treatment of arch wire materials forming in dental orthodontics and treatment.

Main characteristics:

1. Adopt microprocessor control system .

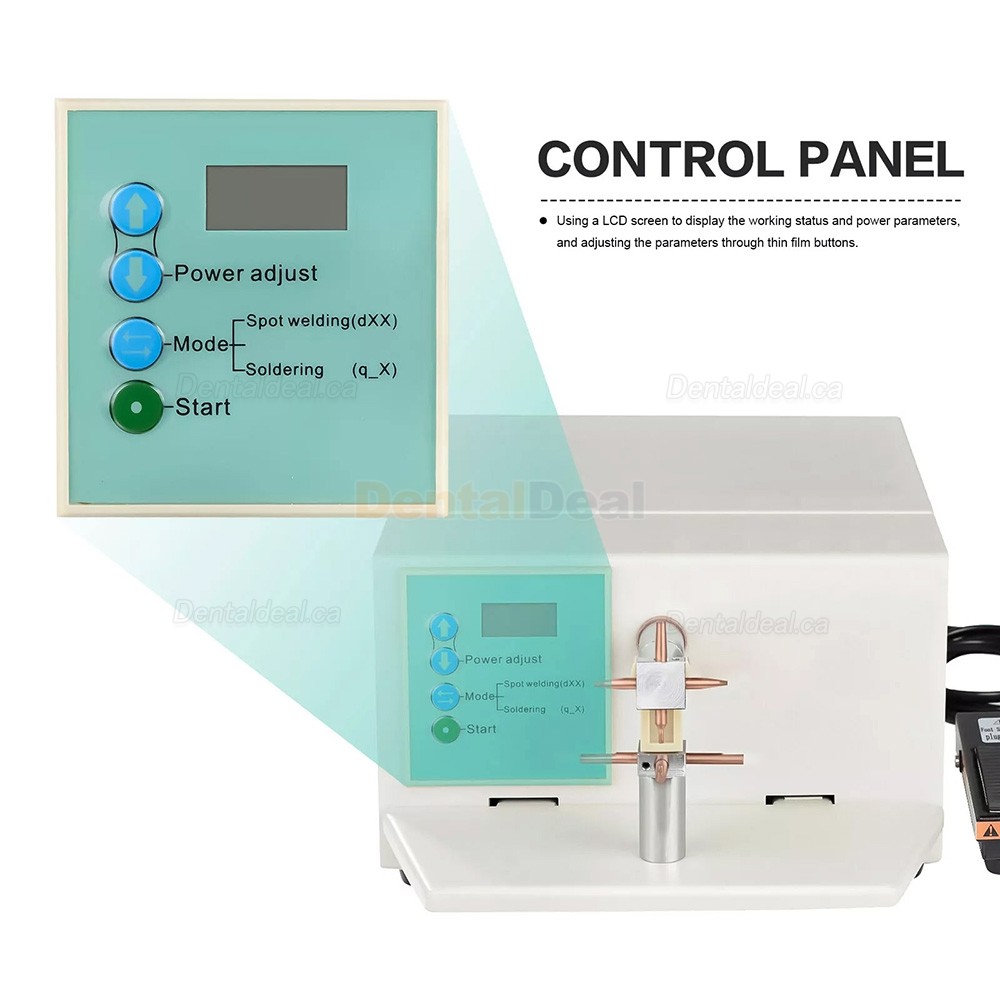

2. Adopt digital display functional mode and power parameter, through membrane button to adjust the parameter.

3. Equipped with safety features including an overheating protection system, as well as indicator and alarm functions for sub-pressure, overpressure, and improper operation.

4. With the welding parameters memory function, when switch on, it will automatically show the same parameters as the last set, so there’s no need to adjust parameter again at the same condition.

Technique parameter:

Power supply:  110V, 60Hz

Power: maximum current 20A

Transformer output power: 2000W,  output voltage: 5V

Incorrect operation alarm: when operation condition don’t accord with SET mode, the display shows Error beep.

Security type: belongs classⅠ, type B

Transformer overheating protection: 85℃

Energy regulation: Spot welding (dxx)      1~30

                                  Braze welding   (QXX)         1~9

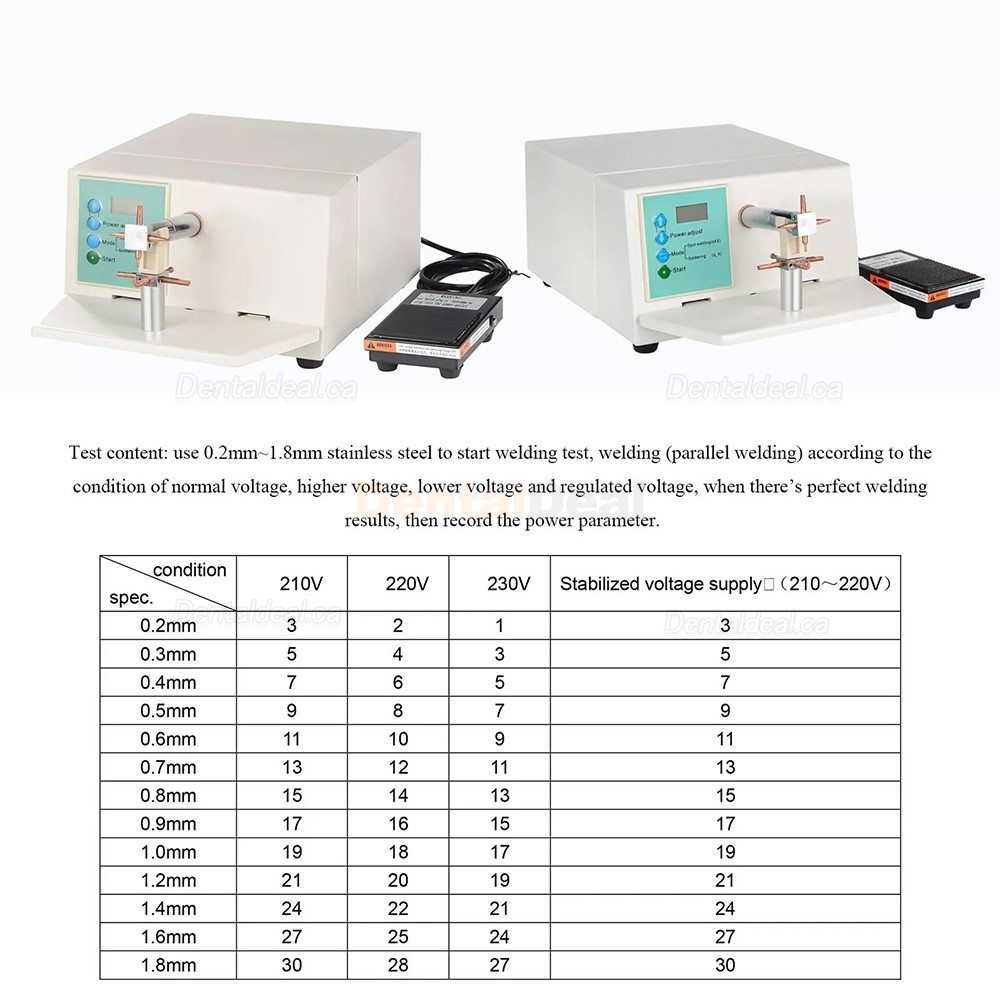

Dimensions of weldment: Ф0.2mm~1.8mm stainless steel wire

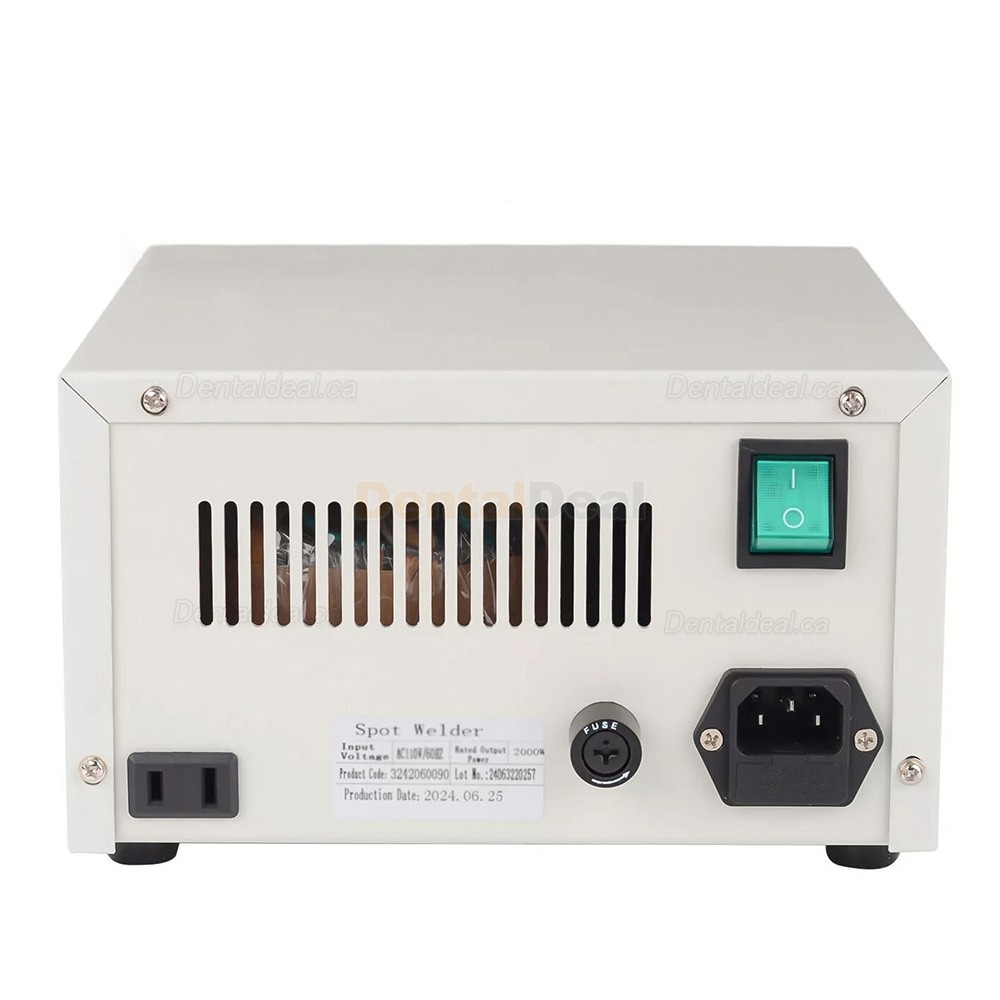

Fuse: Ф5×20mm, 20A

Environment conditions: Temperature 5℃~40℃

                                              Relative humidity ≤80%

Storage condition: Temperature: -10℃~55℃

                                   Relative humidity ≤80%

Weight: 8 kg

Package size: 36*29*20 cm

Packing list:

Main machine x1

Power code x1

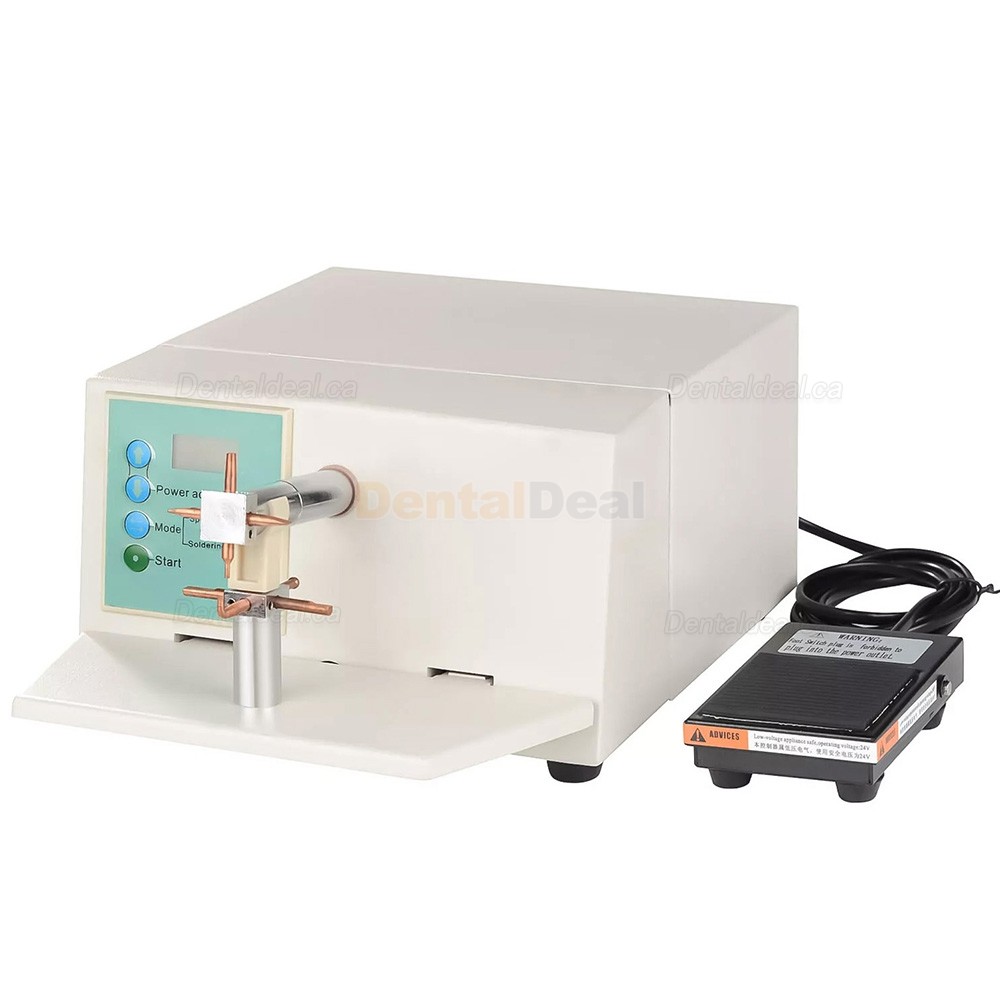

Foot switch x1

Manual x1
