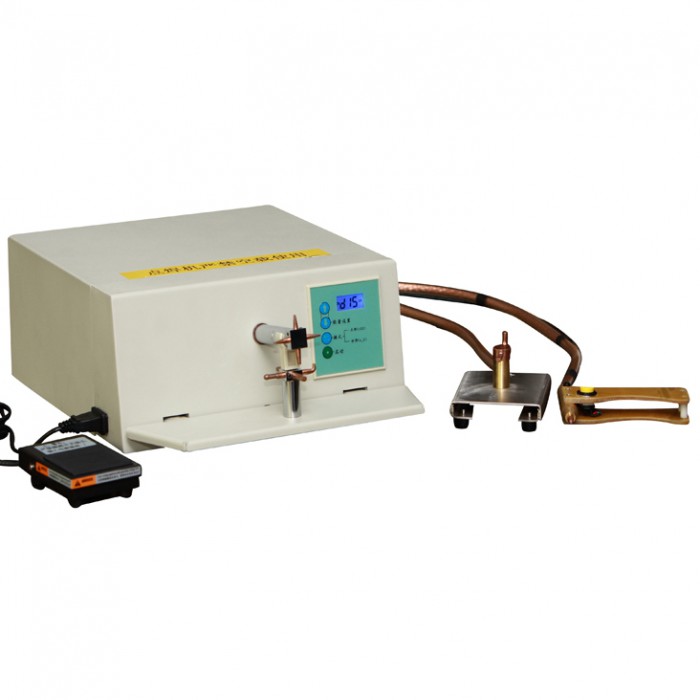

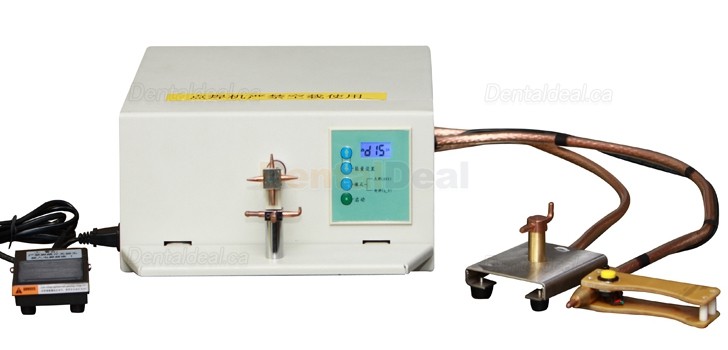

Zoneray HL-WD-V Orthodontic Dental Spot Welder Machine

Zoneray HL-WD-V Orthodontic Dental Spot Welder Machine

Technical Parameters

Power Supply:

AC 110V, 60Hz

AC 120V, 60Hz

AC 220V, 50Hz

AC 230V, 50Hz

AC 240V, 50Hz

Power: maximum instantaneous current 20A

Transformer Output: 3500W, 5V

Alarm: error beep when operation conditions do not match settings

Security Type: Class I, Type B

Transformer Overheat Protection: 95°C

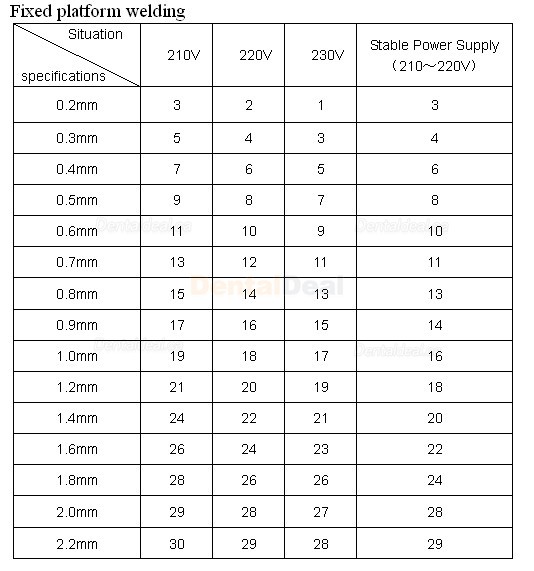

Energy Regulation:

Spot Welding (dxx): 130

Braze Welding (qxx): 19

Weldment Diameter: 0.2mm~2.2mm stainless steel wire

Fuse: 5×20mm, 30A

Environmental Conditions:

Operating Temperature: 5°C40°C, RH ≤80%

Storage Temperature: -10°C55°C, RH ≤80%

Application

Used for welding stainless steel wire and sheets in jewelry, dental orthodontics, and treatment settings.

Packing List

Main Machine x 1

Power Cord x 1

Foot Switch x 1

Fuse 30A x 1

State Block x 1

Certificate x 1

Warranty Card x 1

Manual x 1
