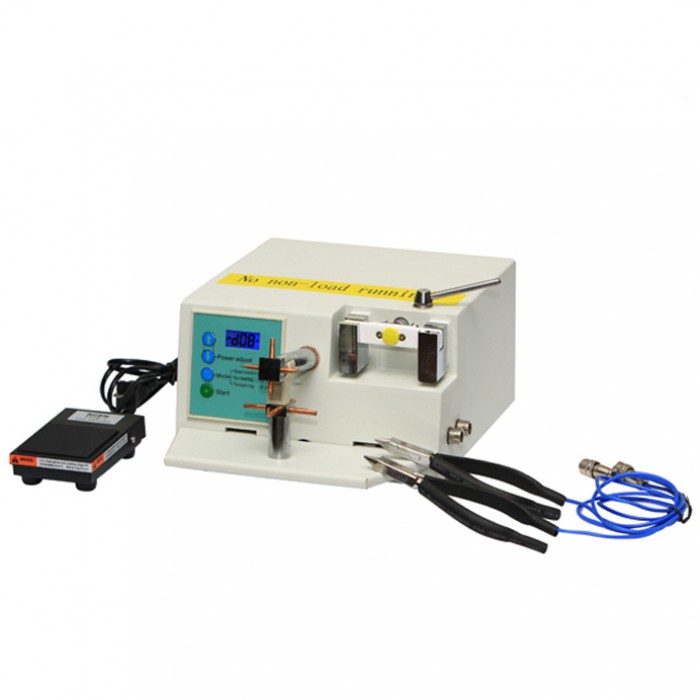

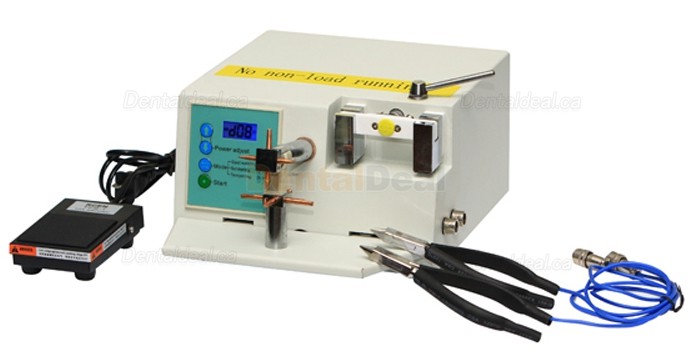

Zoneray HL-WD-III Dental Spot Welder Orthodontic Arch Wire Forming Welding Machine
Zoneray HL-WD-III Dental Spot Welder Orthodontic Arch Wire Forming Welding Machine

2. Technique Parameter
Power supply:
AC 110V, 60 Hz
AC 120V, 60 Hz
AC 220V, 50 Hz
AC 230V, 50 Hz
AC 240V, 50 Hz
Power:maximum instantaneous current 20A
Transformer output power:2000W, output voltage: 5V
Incorrect operation alarm:when operation condition don’t accord with SET mode, the display shows Error beep.
Security type:belong to classⅠ, type B
Transformer overheating protection:85°C

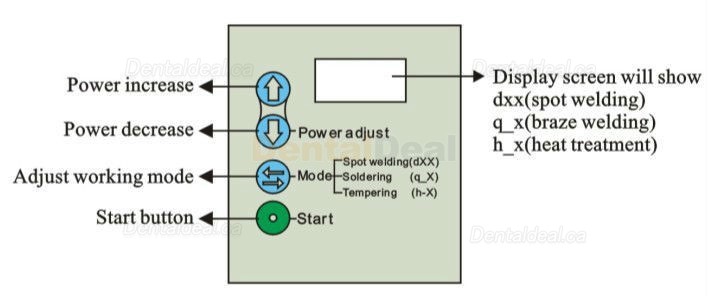

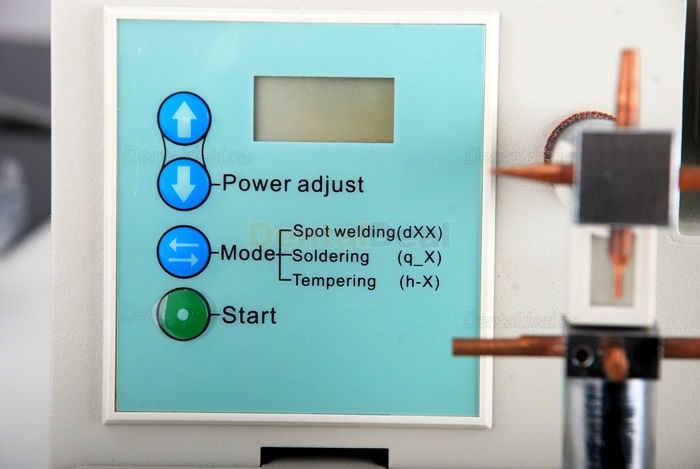

Energy regulation:
Spot welding (dxx) 1~30
Braze welding (q_x) 1~9
Heat treatment (h_x) 1~9
Dimensions of weldment:Diameter 0.2mm~1.8mm stainless steel wire
Fuse:Diameter 5×20mm, 20A
Environment conditions:temperature 5°C~40°C, Relative humidity ≤80%
Storage condition:temperature -10°C~55°C, Relative humidity ≤80%
3. Application

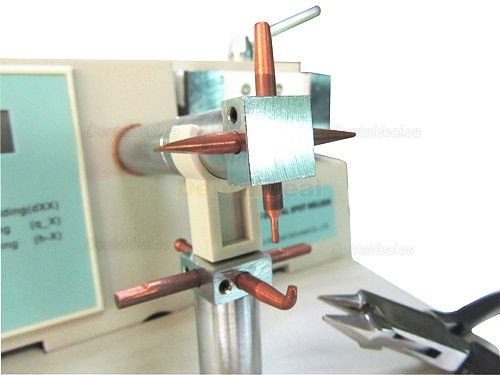

Multi-functional spot welding used for welding stainless steel wire, stainless steel sheet, also be used for heat treatment of arch wire materials forming in dental orthodontics and treatment.
4.Packing list
Main machine X1
Power cord X1
Foot switch X1
Fuse 20A X1
Function clamps X2
State block X1
Heat treatment clamp holder X1
Certificate X1
Warranty card X1
Manual X1

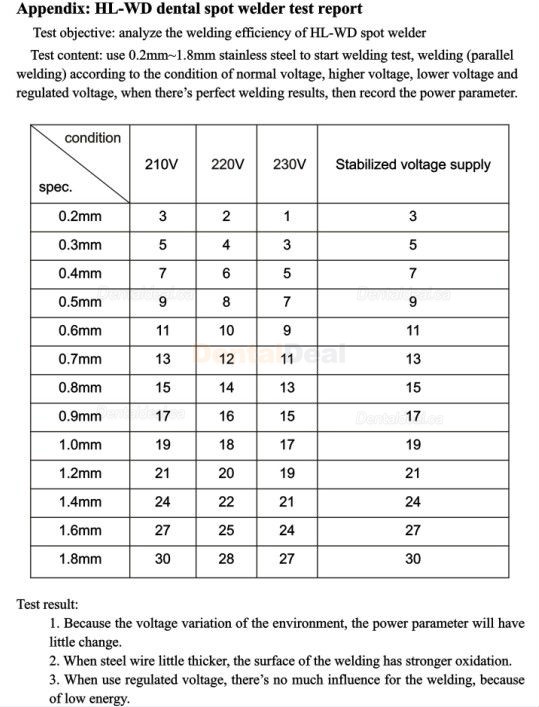

5.Test report
