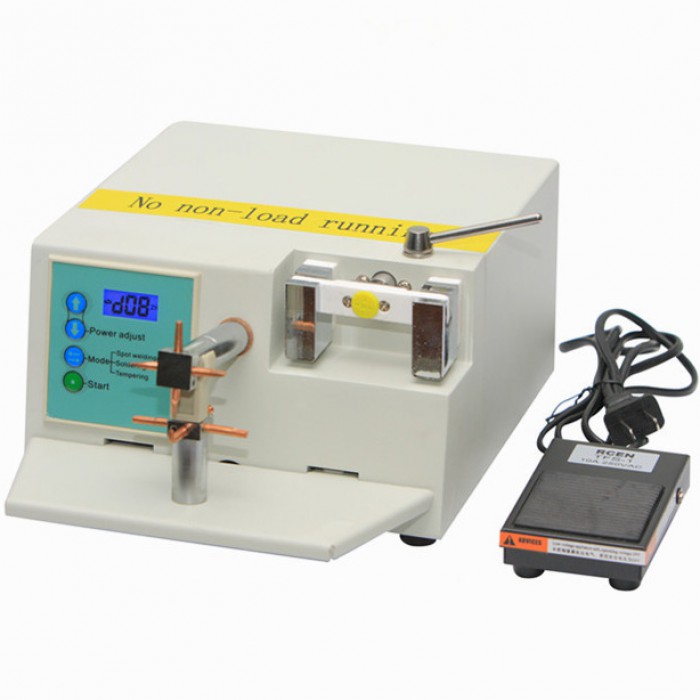

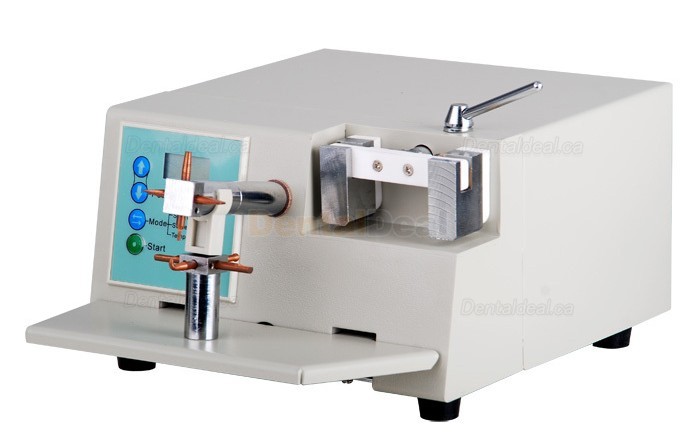

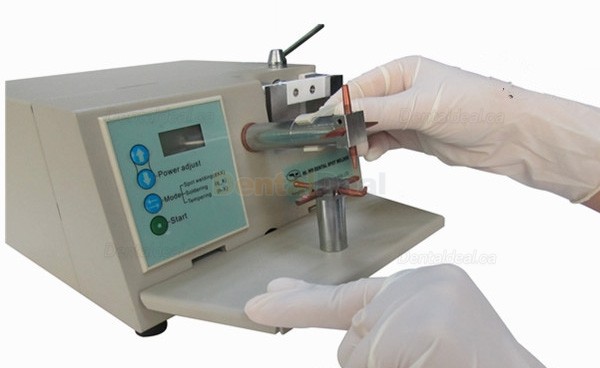

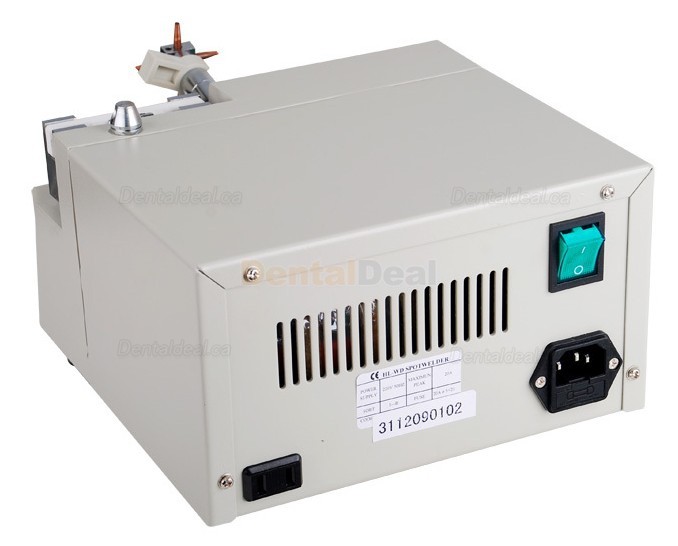

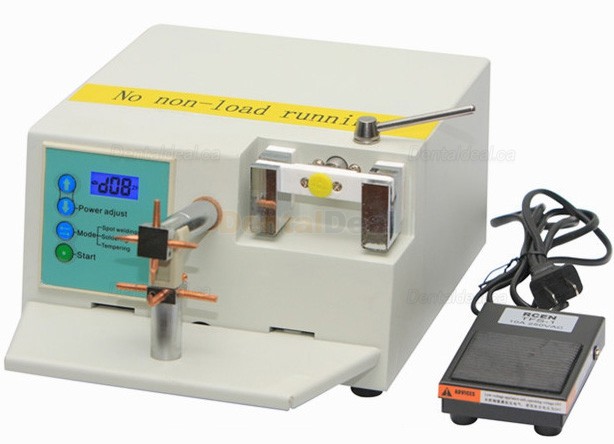

Zoneray HL-WD-II LCD Dental Spot Welder Orthodontic Welding Machine
Features
Storage condition: temperature -10℃~55℃, relative humidity ≤80%
HL-WDIII Spot Welder may be used for heat treatment of orthodontic materials. Materials: stainless steel wire, thickness 0.2–1.8mm.
Characteristics:
Microprocessor-controlled system

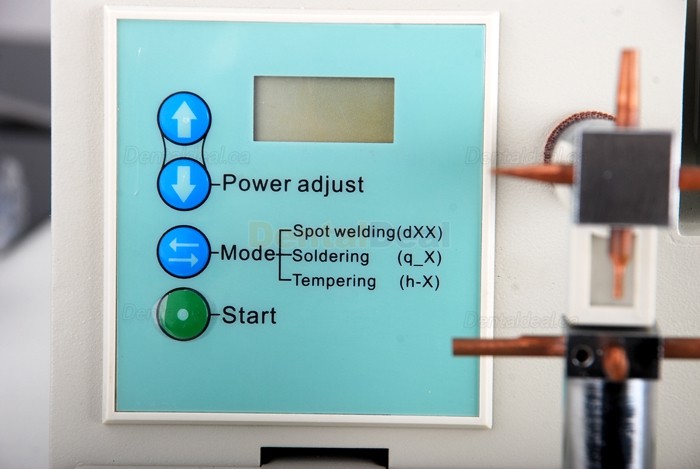

Digital display; parameters adjustable via buttons
Protection and indicator for overheating, sub-pressure, overpressure operation.
Memory function for previous welding parameters.

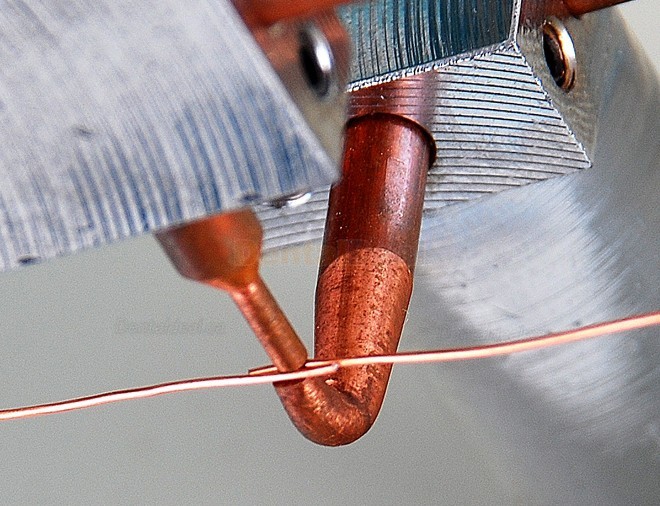

Selectable welding electrodes

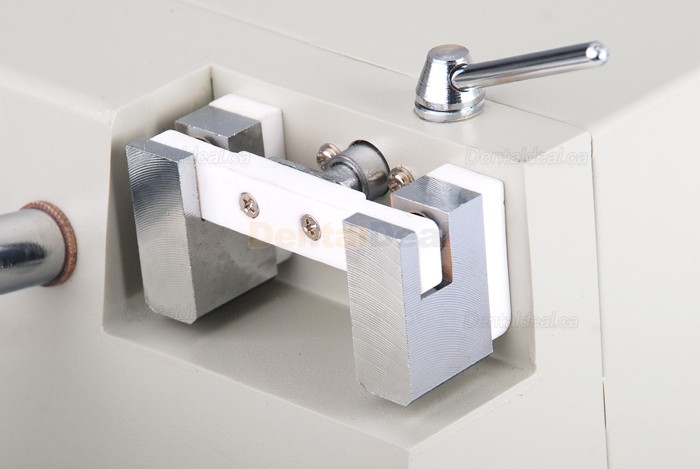

Functions: spot welding, braze welding, heat treatment; clamps usable for heat treatment.
Main technical parameters:
Power supply: 110V/220V, 50/60Hz
Maximum current: 20A
Transformer output power: 2000W, voltage: 5V
Alarm indicates operation not matching set mode
Security type: class I, type B
Transformer overheating protection: 85℃;
Energy regulation:
Spot welding (dxx) 1–30
Braze welding (q_x) 1–9
Heat treatment (h_x) 1–9
Dimensions of weldment: Ф0.2–1.8mm stainless steel wire
Fuse: Ф5×20mm, 20A
Environment: temperature 5–40℃, relative humidity ≤80%
