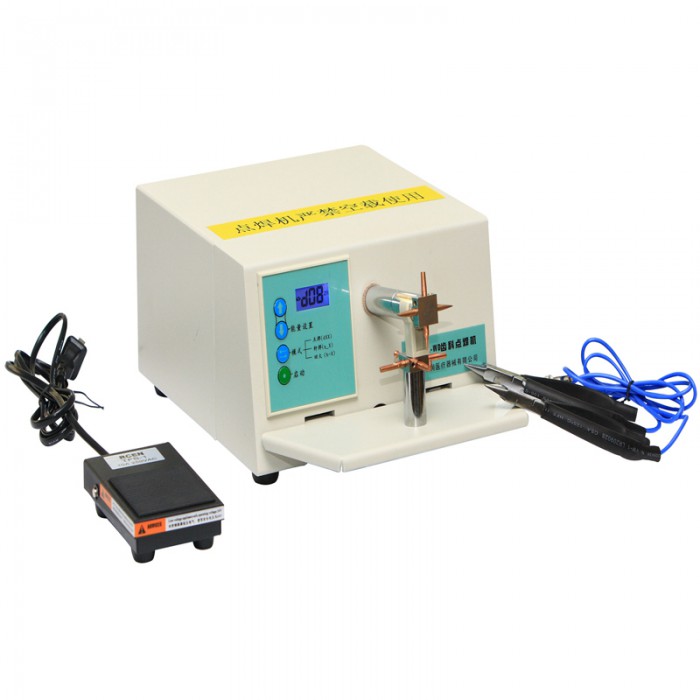

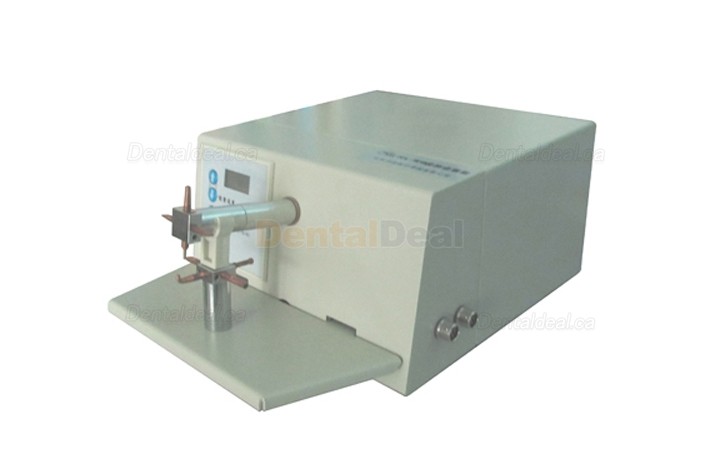

Zoneray HL-WDIV Dental Micro Spot Welder Arch Wire Forming Welding Machine



Power Supply: AC 110V-120V 60Hz, AC 220V-240V 50Hz



Output Voltage: 5V



Power: instantaneous current up to 20A



Transformer Output: 2000W, 5V



Alarm: error beep when operation conditions do not match settings



Security Type: Class I, Type B



Transformer Overheat Protection: 85°C

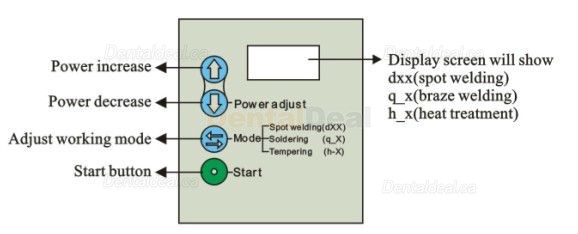

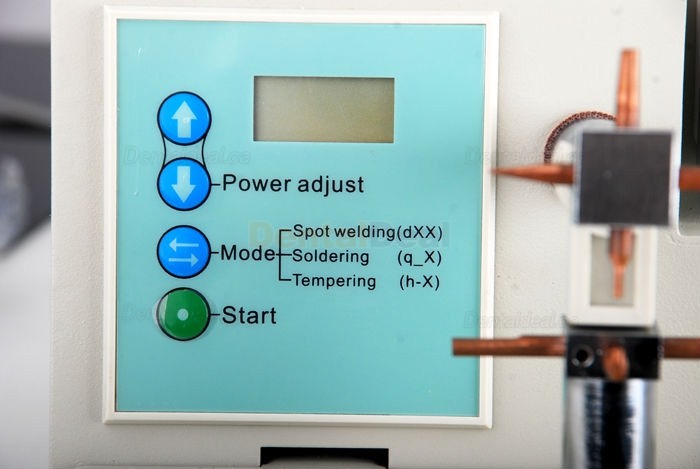

Spot Welding (dxx): 130



Braze Welding (q_x): 19



Heat Treatment (h_x): 1~9



Weldment Diameter: 0.2mm~1.8mm stainless steel wire.



Fuse: 5×20mm, 20A



Operating Conditions: 5°C~40°C, RH ≤80%



Storage Conditions: -10°C~55°C, RH ≤80%



Weight: 7.9 kg



Dimensions: 37 × 30 × 20 cm



Rated Capacity: 50 J



Certification: CE & ISO 13485;







Designed for spot welding and braze welding of stainless steel wire and sheets. Can also be used for heat treatment of arch wire materials in dental orthodontics and laboratory settings.

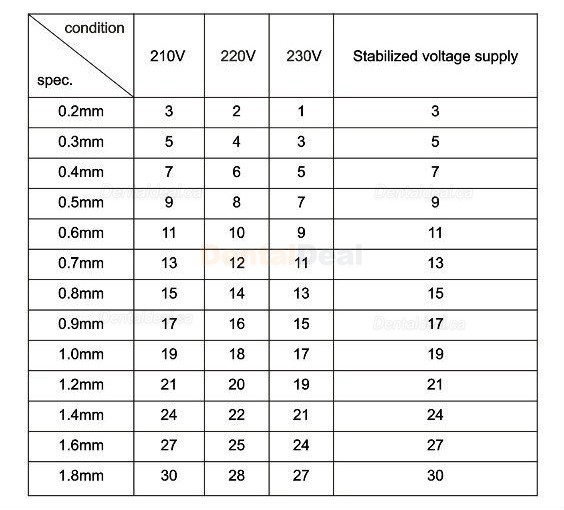

Test Details: Spot welding tests conducted under standard, regulated, and varied voltage conditions, with power parameters recorded during operation.





Main machine x1

Power cord x1

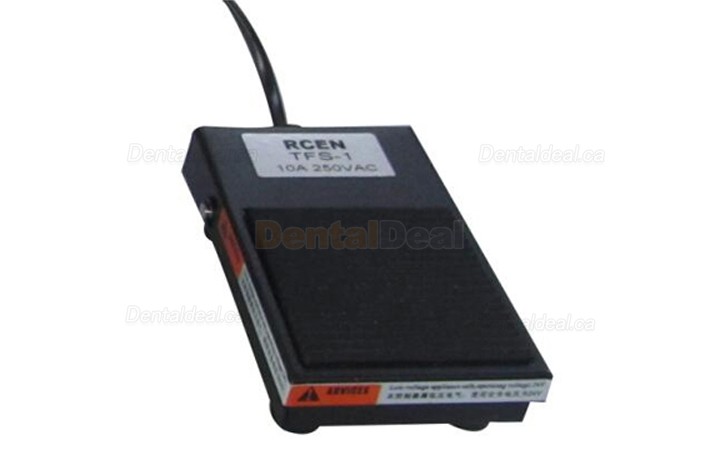

Foot switch x1

Fuse 20A x1

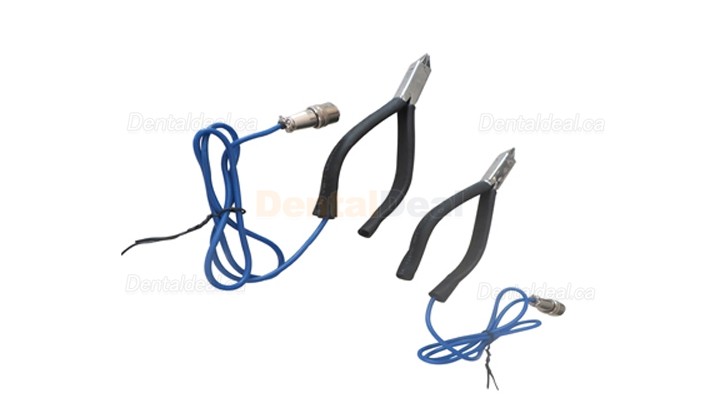

Function clamps x2

State block x1

Heat treatment clamp holder x1

Certificate x1

Warranty card x1

Manual x1
