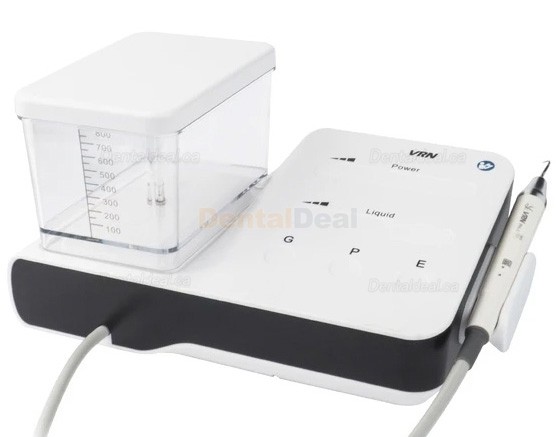

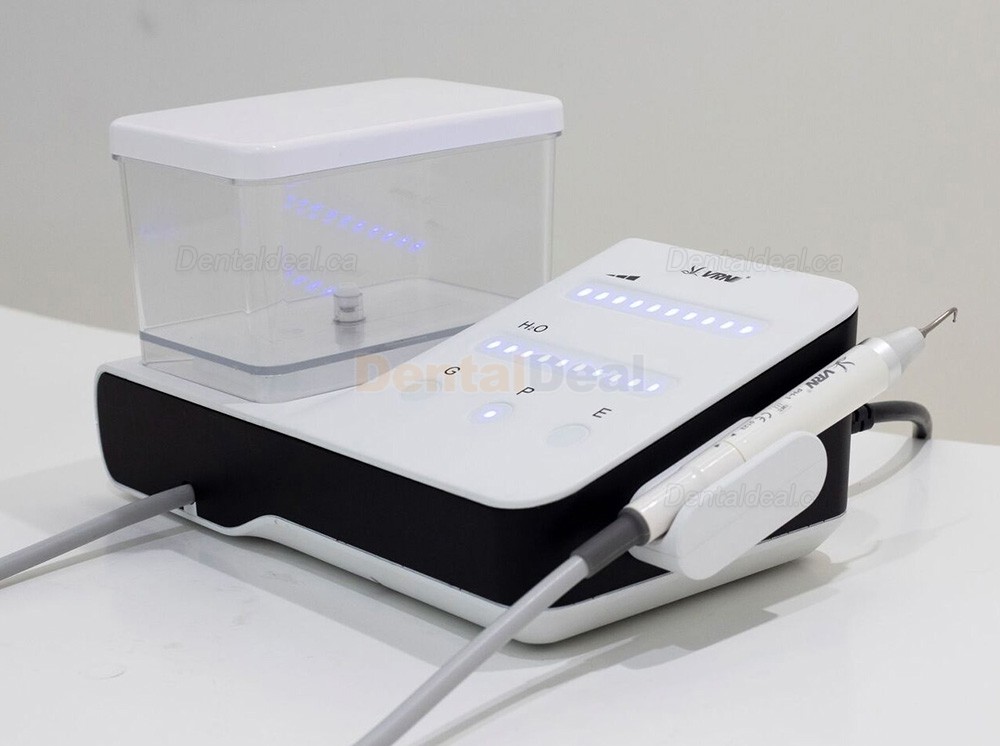

VRN DA-20 Dental Ultrasonic Scaler with LED Handpiece Fit EMS Woodpecker

VRN DA-20 Dental Ultrasonic Scaler with LED Handpiece Fit EMS Woodpecker

Features:

Liquids commonly used in clinics, such as hydrogen peroxide, chlorhexidine, and sodium hypochlorite, can be applied through the automatic water supply mode for teeth cleaning and root canal irrigation.

The handpiece can be sterilized at 135℃ and 0.22 MPa.

The device is designed to adjust working conditions automatically.

Equipped with a built-in microprocessor to control working power,.

A wireless foot switch for remote operation of the unit. A wired option is also available based on user needs.

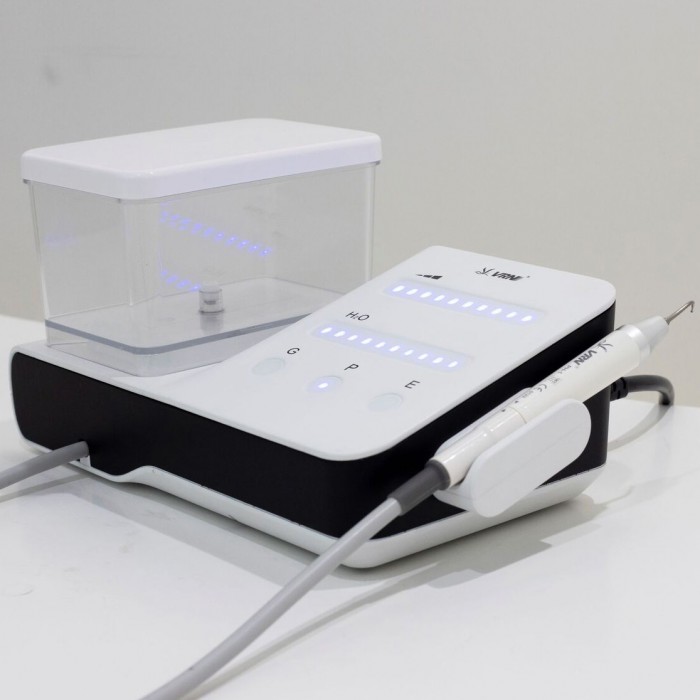

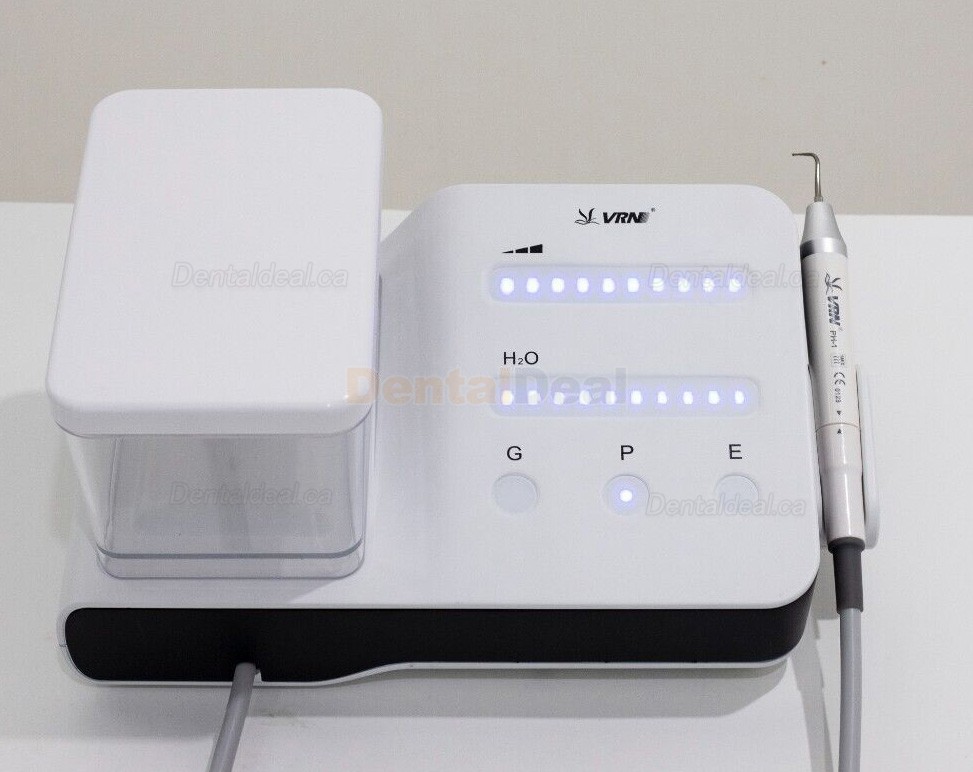

Built-in with LED illumination and compatible with standard plug-in handpieces.

Specifications:

Input Voltage: 220 V ±22 V, 50/60 Hz

Input Power: 35 VA

Wireless Foot Switch Batteries: AA × 2

Receiving Sensitivity: -114 dB, Receiving Frequency: 2.4–2.5 GHz

Tip Amplitude:Range of 1 μm (±50%) to 100 μm (±50%);

Half Deflection Force:Range of 0.1 N (±50%) to 5 N (±50%);

Vibration Frequency of Tip: 18–45 kHz

Note: Frequencies vary depending on tip type but are within the specified range.

Output Power of Tip: 3–20 W

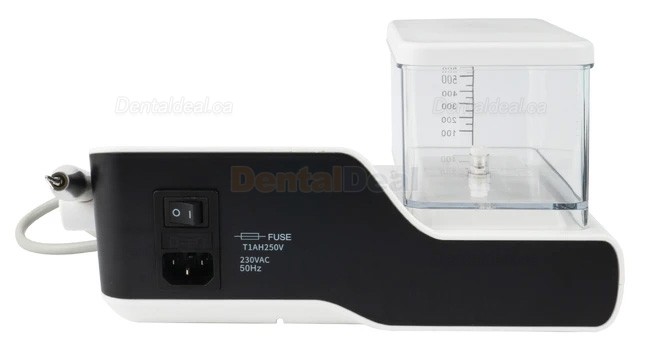

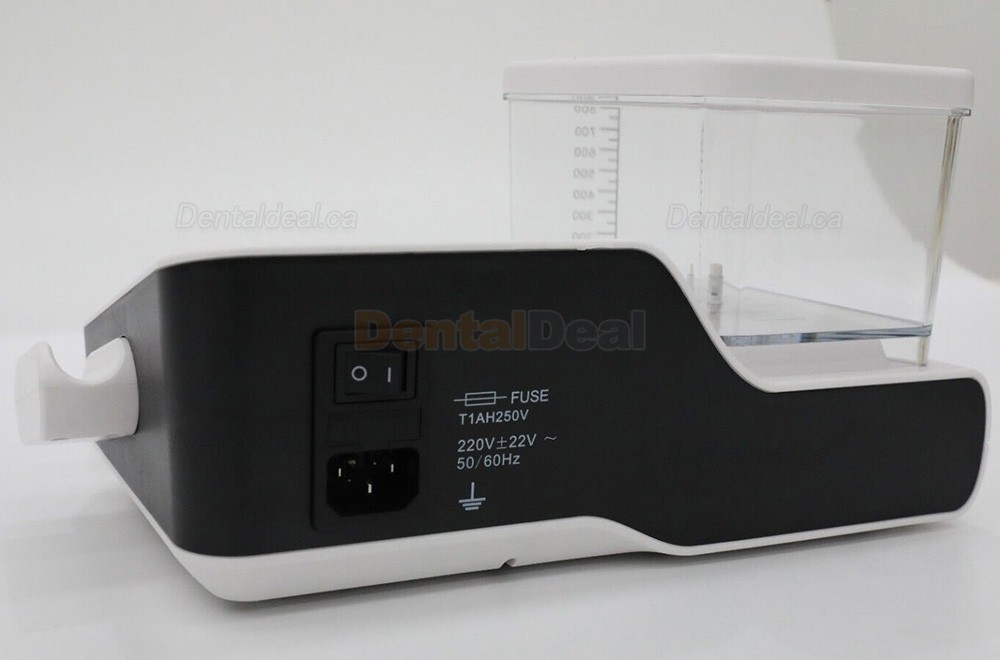

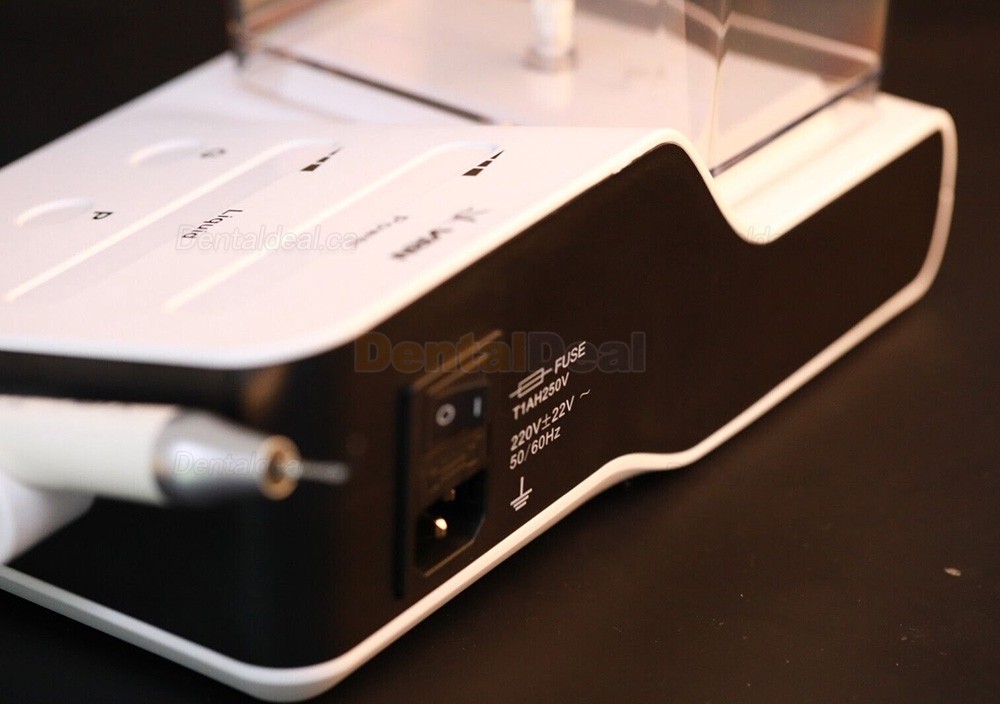

Fuse: T1AH250V

Weight: 1.8 kg

Protection Against Electric Shock Rating: Class II equipment

Applied Part Classification: Type B

Ingress Protection Rating: Main unit: IPX0; Wired foot switch: IPX1; Wireless foot switch: IPX4

Safety in Flammable Environments: Non-AP, APG type equipment

Wireless Foot Switch:

Emission Frequency: 2.412–2.462 GHz

Modulation Type: GFSK

Radiated Power: 12 dBm;

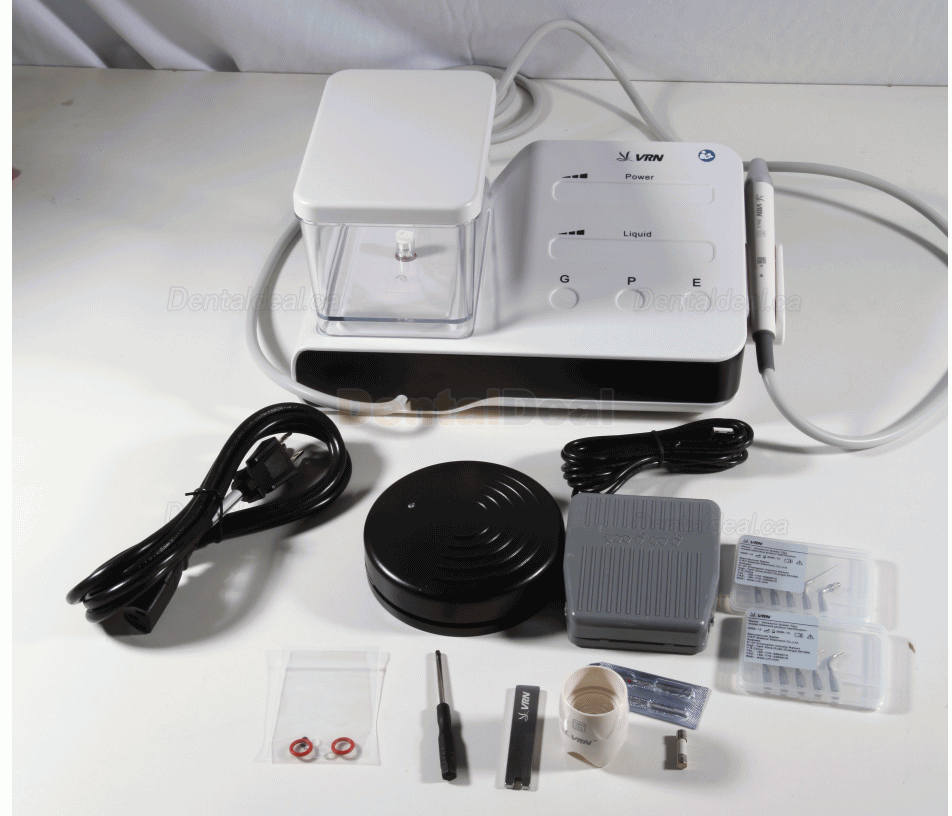

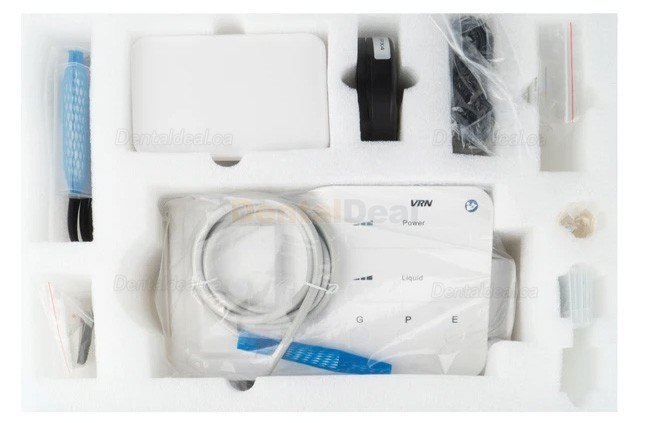

Packing List:

Main Unit × 1

PH-1 LED Scaler Handpiece × 1

Power Supply Cord × 1

Wireless Foot Control × 1

Water Bottle × 1

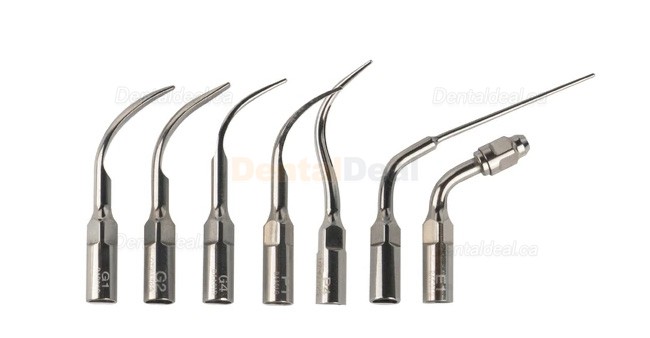

Scaler Tips × 13 (E14 ×1, P1 ×2, G2 ×1, G1 ×2, G4 ×2, E1 ×1, P4 ×1)

Endo Files × 2 (#25)

O-rings × 2

Torque Tip Wrench × 1

Endo File Wrench × 1

Water-resistant Sticker × 1

Screwdriver × 1

Wired Foot Control × 1

Tips Contrast Cord × 1

Fuse × 1
