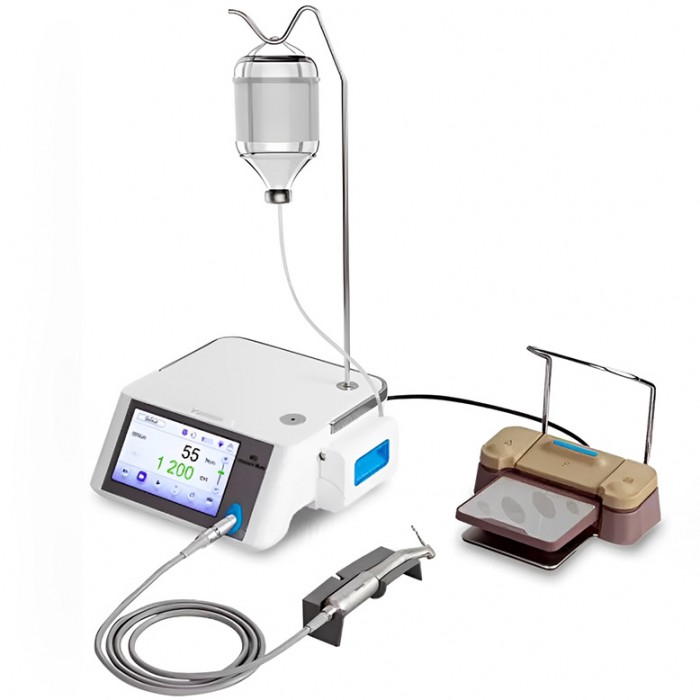

Mate M3 Dental Brushless Implant Motor Implant Surgical Machine

Features:

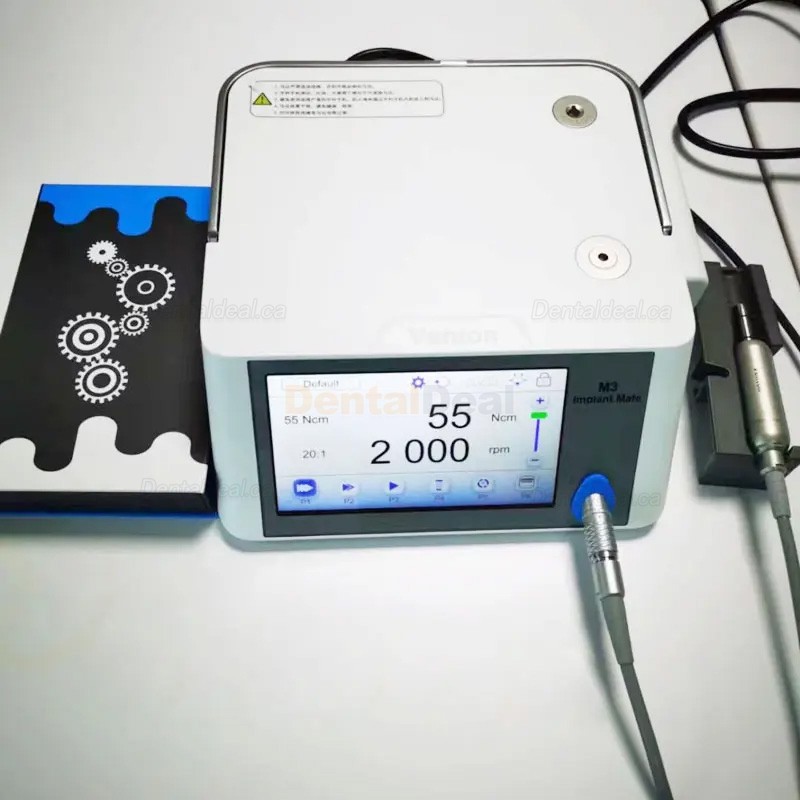

7-inch touch screen interface; Data export via USB.

Includes 10 configurable programs to accommodate procedural preferences.

20:1 contra-angle handpiece with compact form and torque range of 5–70 N·cm.

Multifunctional foot control includes: water volume control, program selection, direction switching, and variable speed adjustment.

Automatic Thread Cutting Mode:

In this mode (P5), forward and reverse speeds are fixed at 20 rpm.

When the pedal is pressed, the bur rotates forward until it reaches the set torque.

Upon reaching torque, the bur switches to reverse rotation automatically.

Releasing and pressing the pedal again returns it to forward operation.

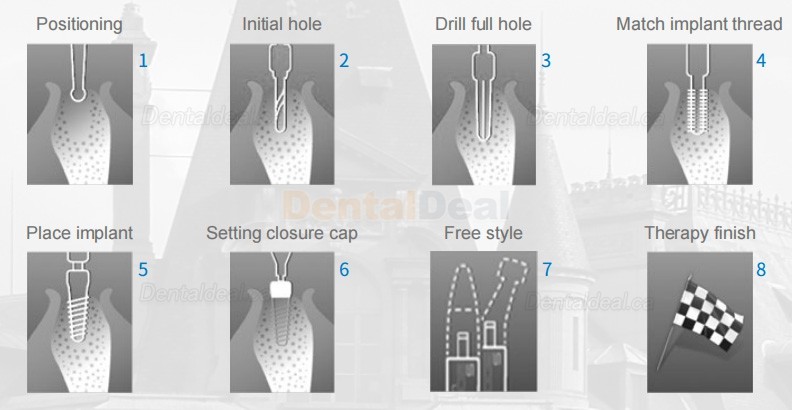

Setting:

	Positioning	Initial hole	Drill full hole	Match implant thread	Place implant	Setting clos ure cap
RPM	1200-1500	1000-1200	800-1000	15	15	15
N.cm	100%	100%	100%	50	30	30
Coolant volume level	Third level	Third level	Third level	Close	Close	Close
Handpiece ratio	20:1	20:1	20:1	20:1	20:1	20:1

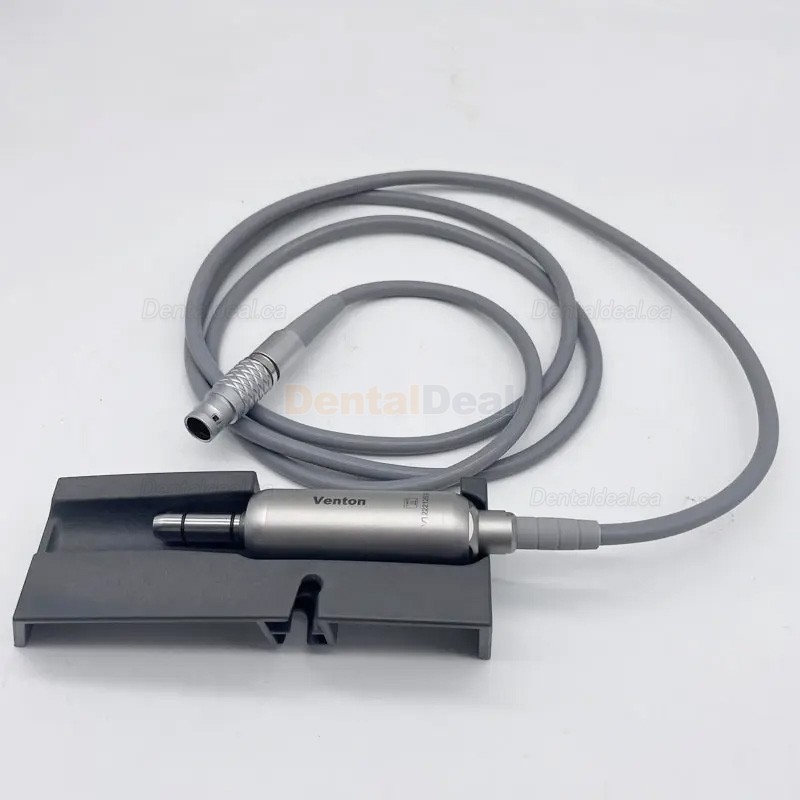

20:1 Handpiece technical parameters:

-	Motor without LED	Motor with LED
Maximum torque of motor	5.5N.cm	5.5N.cm
Dimension of motor	L49xW22mm	L69xW23.9mm
Net weight of motor	110g	139g
Length of motor cable	1.8m	1.8m
Autoclavable motor and cable	134°C, last at lease 3 mins	134°C, last at lease 3 mins
The maximum noise of the motor without loading	<40dB	<40dB
Motor with LED light at high color rendering index	-	Natural daylight,adjustable brightness levels

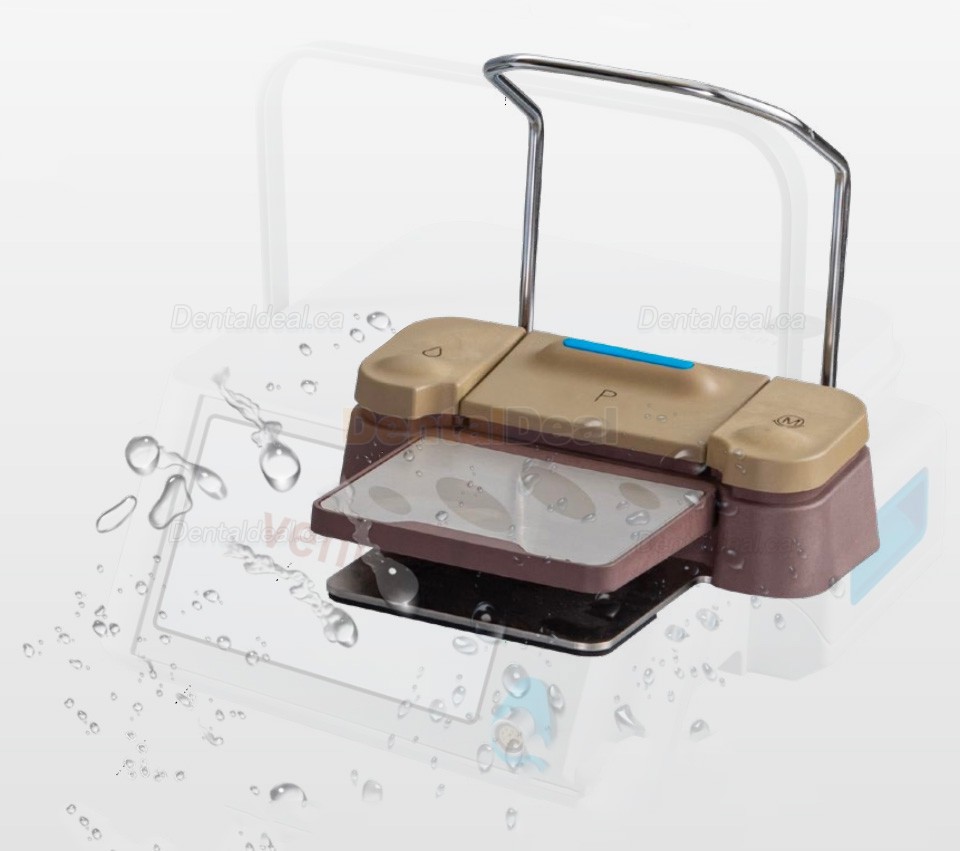

Foot control technical parameters:

Waterproof level of foot control: IPX6

Dimension of foot control (LxWxH): 200X210X85mm

Cable length of foot control: 2.8m

Technical parameters:

Model	M3
Touch screen size	1024x600mm (7 inches)
Speed and torque display	Real time
Program settings	10 types
User modes	9 types

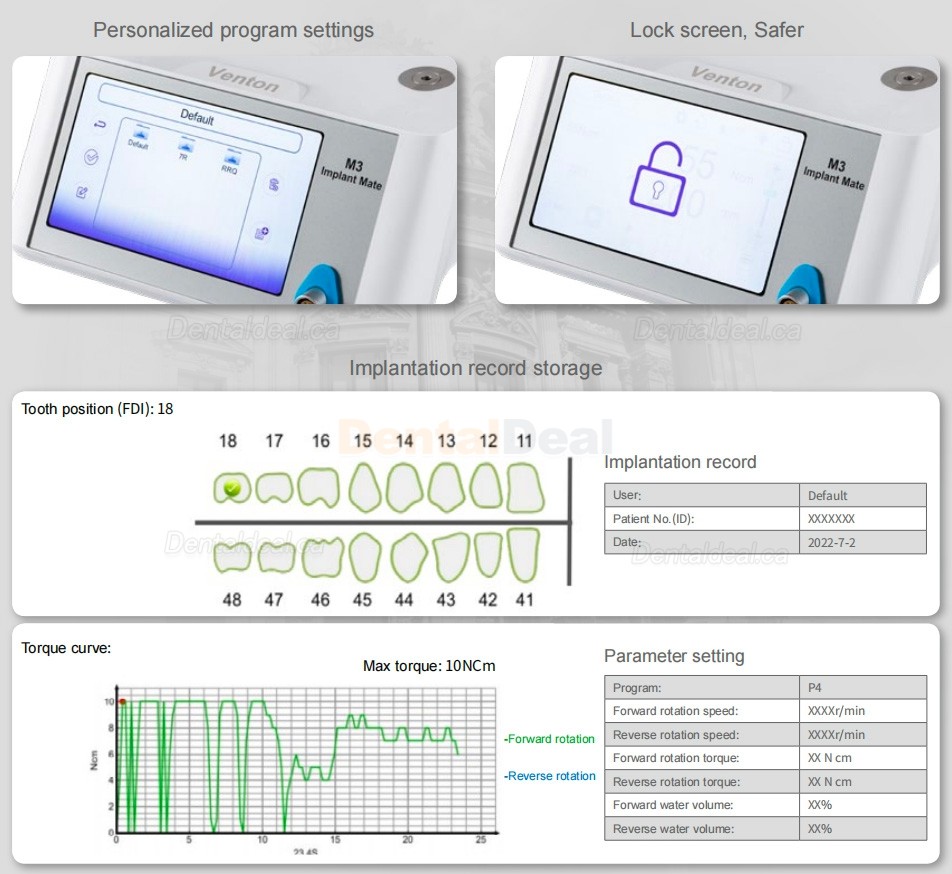

Curve of torque during implantation	Allow data storage and export
Implant record	Allow data storage and export
Setting parameter record	Allow data storage and export, indudes: program,speed,torque, coolant volume
Torque testing of handpiece	Yes
Lock screen function	Yes
Automatic thread cutter function	Yes
Adjustable motor rotation	100-40,000rpm
Motor with LED light at high color rendering index	Natural daylight, adjustable brightness levels
Transmission ratio of handpiece	1:1,20:1
Maximum torque of bur	7ONcm
Waterproof level of foot controller	IPX6
Function of foot controller	Coolant pump ON/OFF, Program change, Forward/reverse rotation

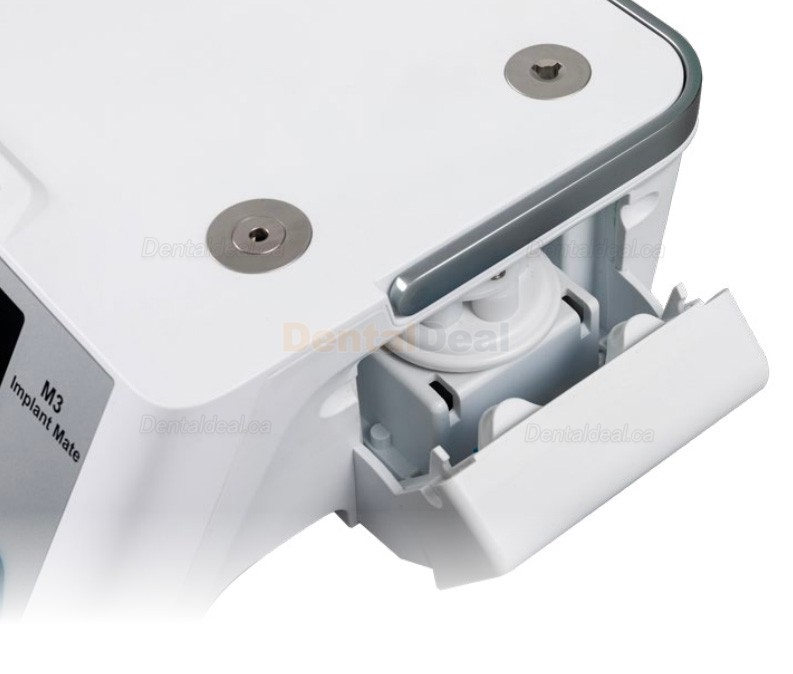

Coolant pump	Built-in
Coolant volume at 100%	>90mL/min
Colour of main unit	White
