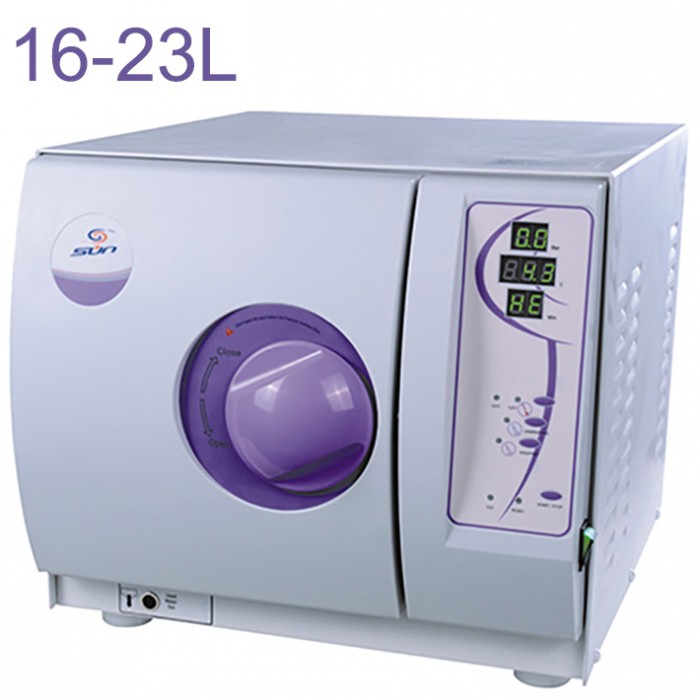

Sun® SUN-I-D Tabletop 16-23L Dental Steam Autoclave Sterilizer Class N

Sun® SUN-I-D Tabletop16-23L Dental Steam Autoclave Sterilizer Class N

Features:

Microprocessor-controlled autoclave for frequent sterilization tasks.

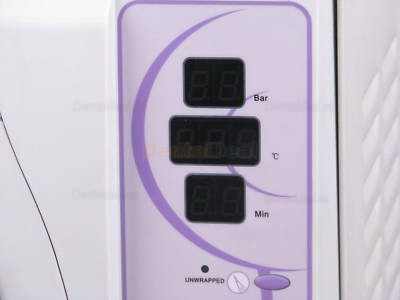

Displays parameters and conditions. Automatic malfunction evaluation. Shuts off at excessive temperature or pressure.

For sterilizing dental, ophthalmic, and laboratory equipment, and heat-resistant materials.

Preparation Before Operation

I. Connect the power source properly.

II. Connect the power cable from the back left side to the power socket and switch on the autoclave.

III. Press the main power button; the indicator light will turn on, confirming the system is initialized.

IV. The autoclave does not heat during initialization.

Complies with the standard Class-N type.

Specifications:

Rated Voltage: 220V±22V, 50Hz±1Hz, 110V±11V, 60Hz±1Hz

Rated Power: 1800VA / 2000VA

Sterilizing Pressure/Temp: 0.9-1.3 bar / 120ºC, 2.0-2.3 bar / 120ºC (Standard atmospheric pressure)

Fuse: T15A / T30A

Water Tank Capacity: 2L

Water Consumption (per cycle): 0.3L

Operating Temp: 0-40ºC

Model Options

SUN16-I(N)

Appearance Size: 445x550x395mm

Inside Dimension: Ø230x360mm

Power: 1800W

Tank Capacity: 16L

Weight (G/W): 32kg

SUN18-I(N)

Appearance Size: 445x550x395mm

Inside Dimension: Ø249x355mm

Power: 1800W

Tank Capacity: 18L

Weight (G/W): 33kg

SUN23-I(N)

Appearance Size: 445x640x395mm

Inside Dimension: Ø249x450mm

Power: 2000W

Tank Capacity: 23L

Weight (G/W): 39kg
