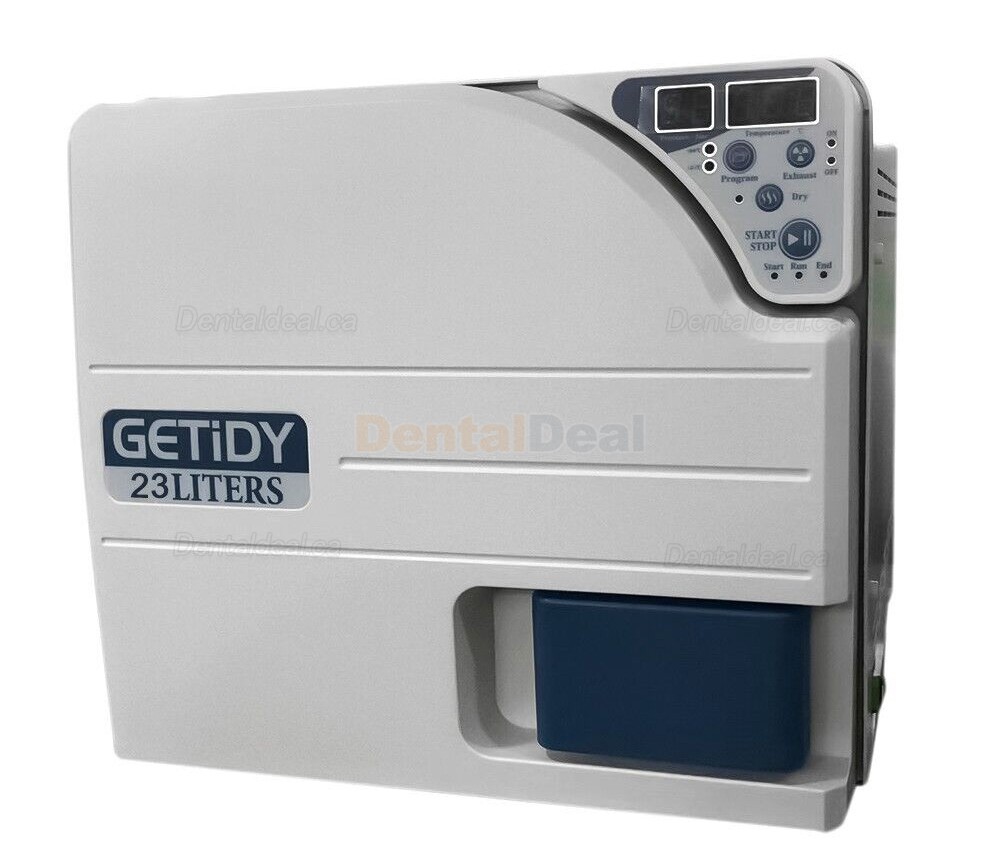

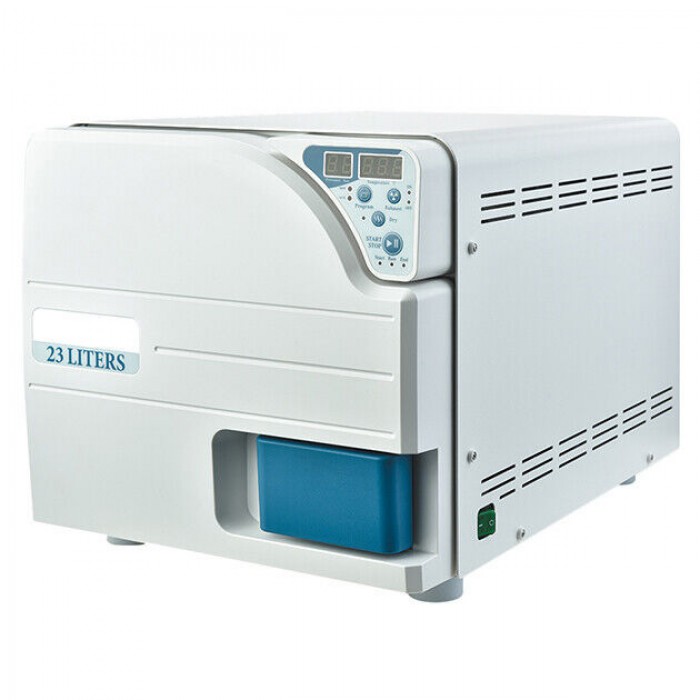

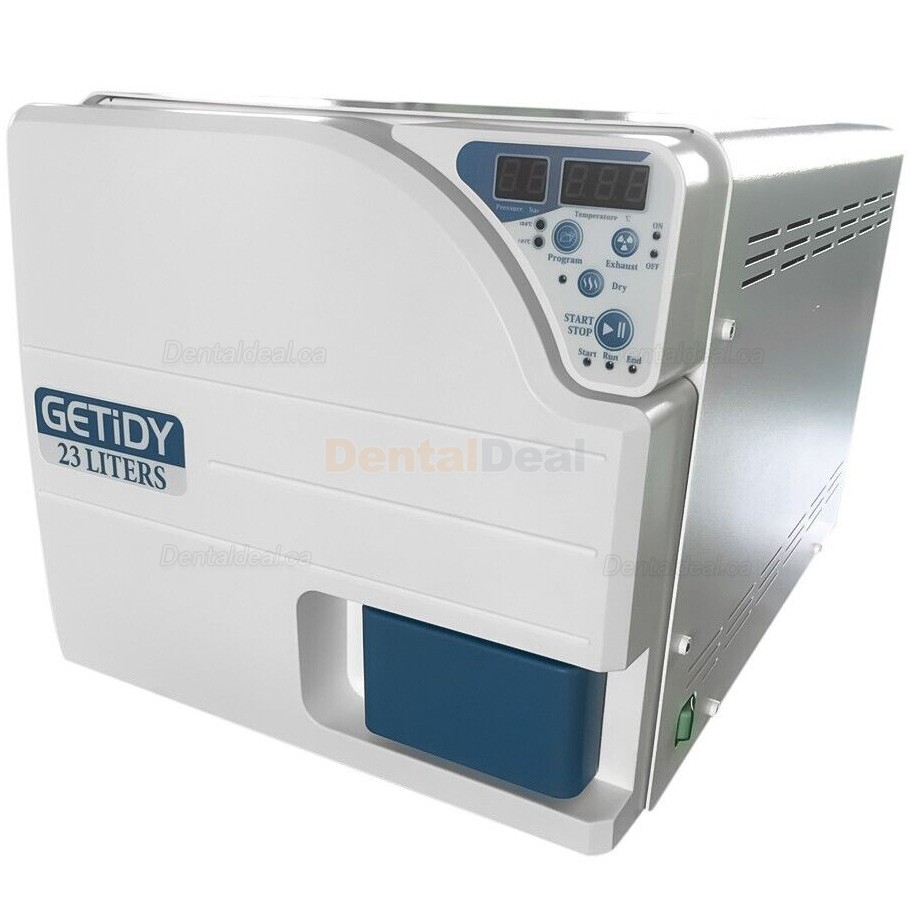

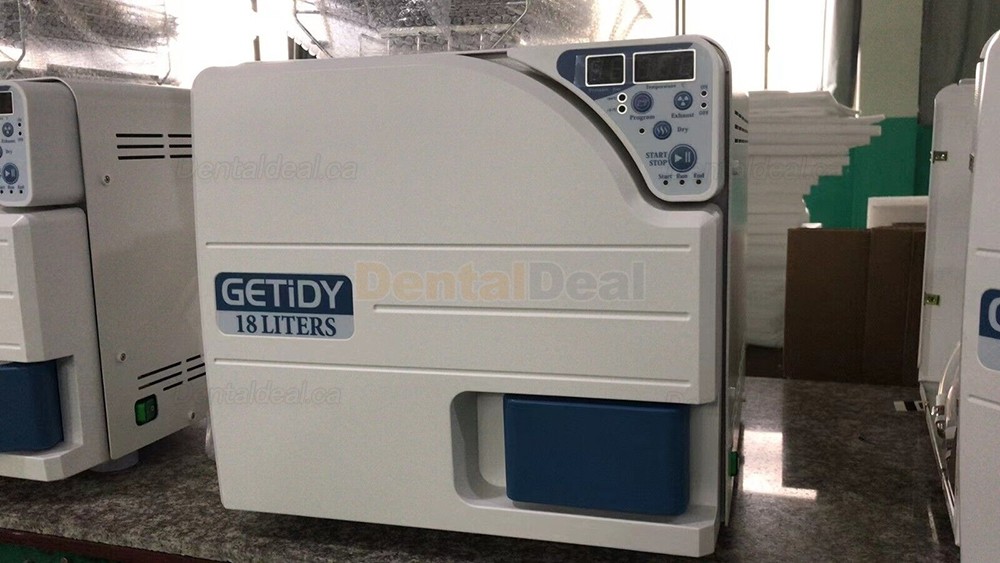

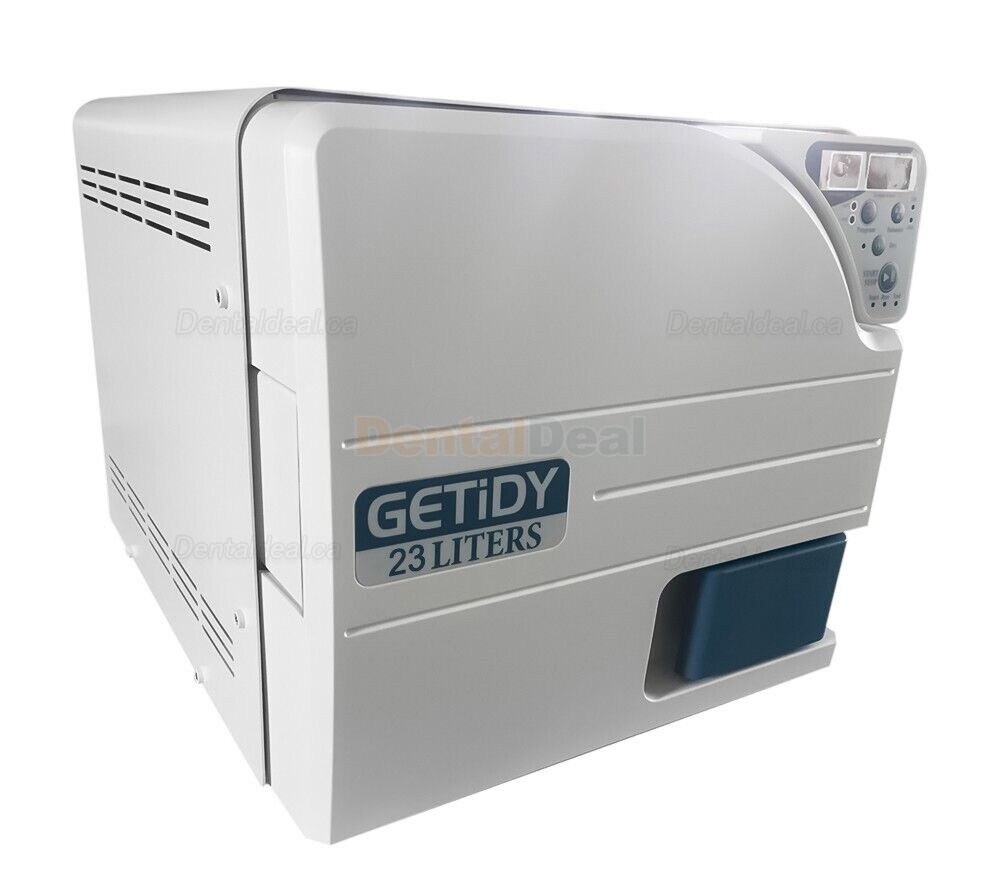

Getidy JCH 16L/18L/23L Benchtop Dental Autoclave Sterilizer Class N with Dryer

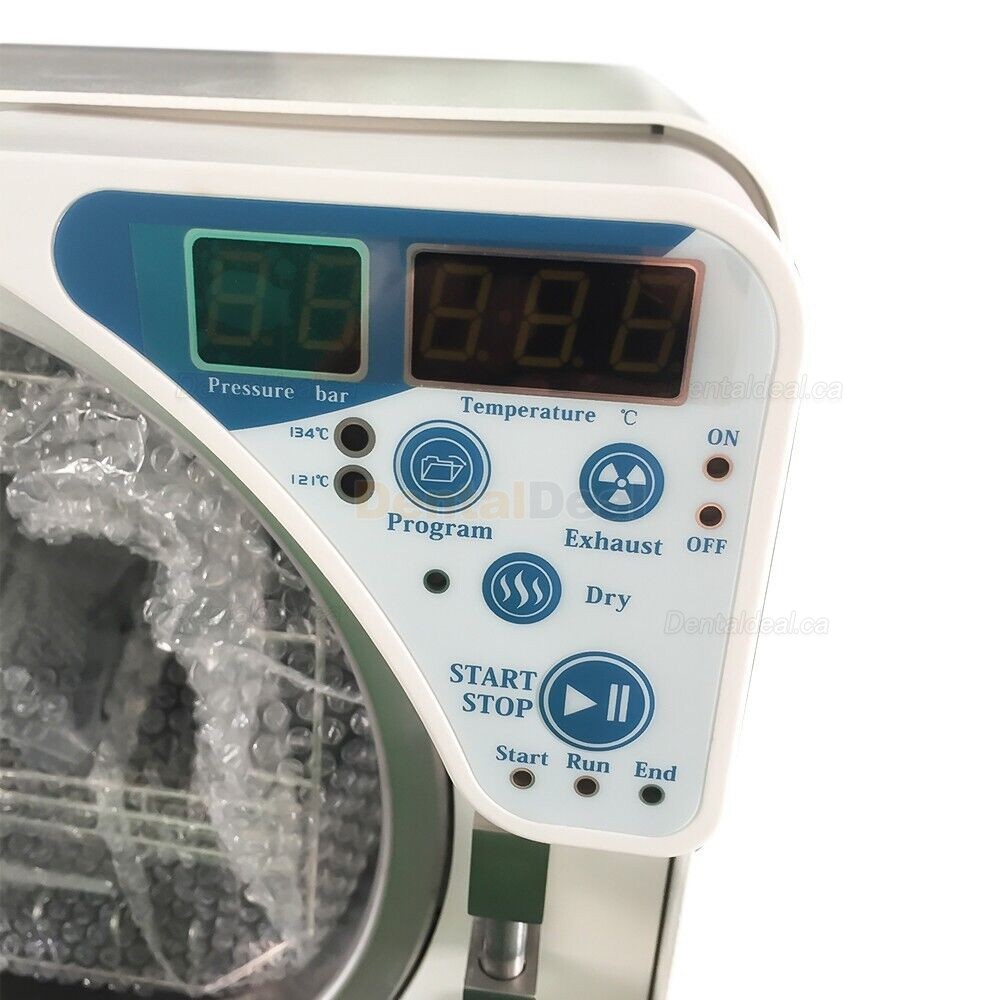

Class N, white light imported digital LED screen for pressure and temperature, Motorola pressure sensor, Double control with electric and mechanical lock, automatic temperature control and Over-heat protection, automatic drying function (with heating ring), equipped with two large diameter imported electromagnetic valves, automatic drainage and steam exhaust

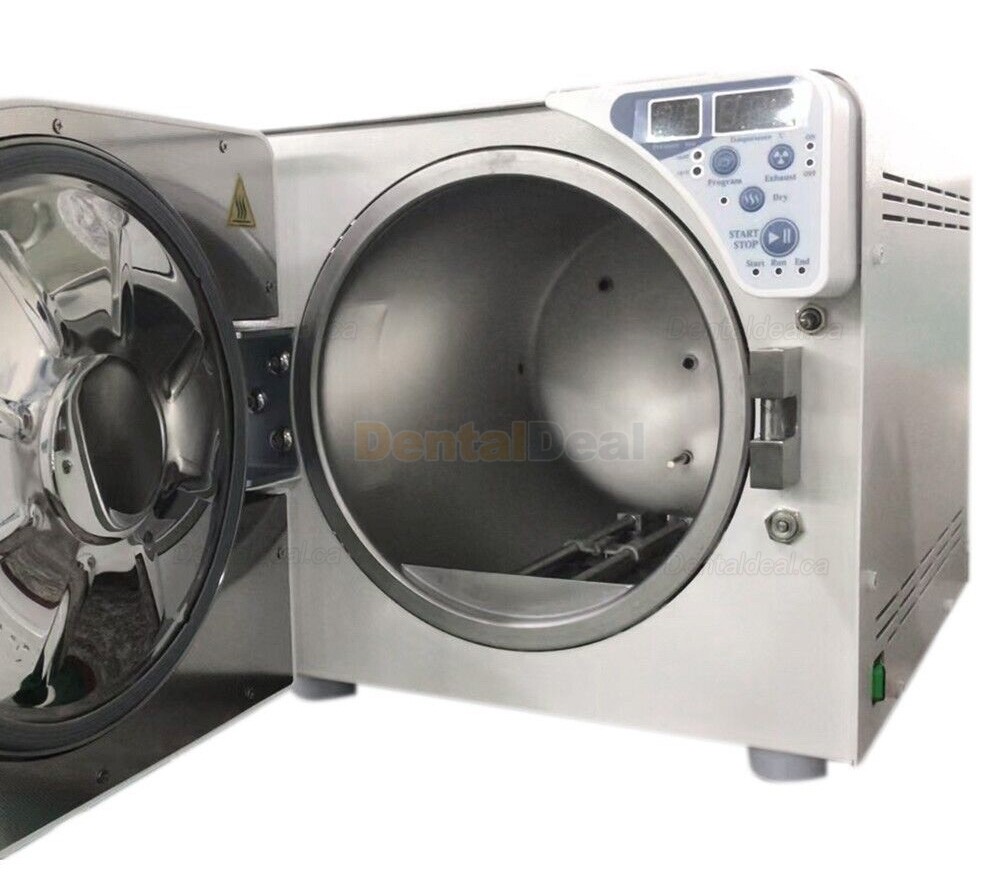

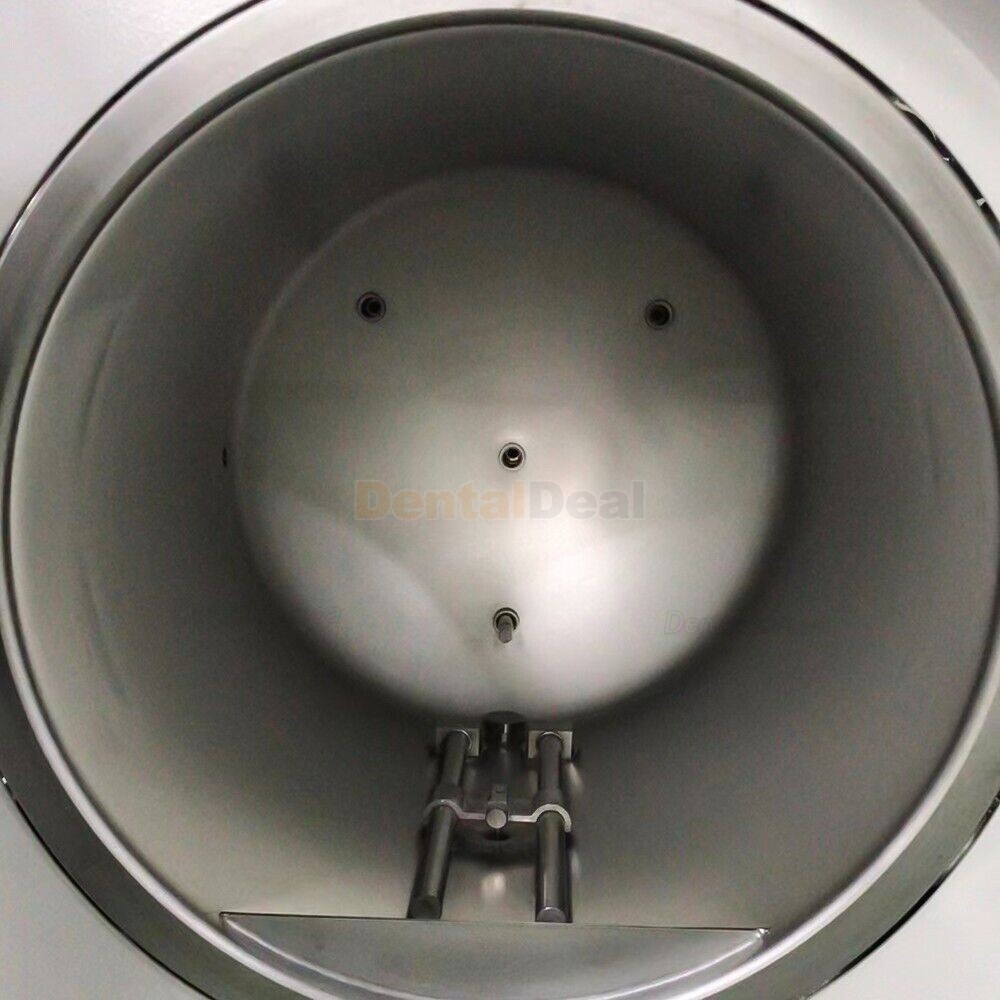

1.1 Chamber size(stainless steel SU304):

16 liter(Φ230mmX360mm) 18 liter(Φ250mmX355mm)

23 liter(Φ250mmX450mm)



1.2 Machine size:

16 liter(W:385mm H:365mm D:475mm)

18 liter(W:385mm H:365mm D:475mm)

23 liter(W:385mm H:365mm D:575mm)



1.3 Power: AC 110/1200W/11A；AC 220/1400W/6.3A

1.4 Sterilization temperature/sterilization pressure:

121℃-1.2bar(0.012Mpa) 134℃-2.2bar(0.022Mpa)

1.5 Sterilization time: 25Min（121℃） 6Min（134℃）

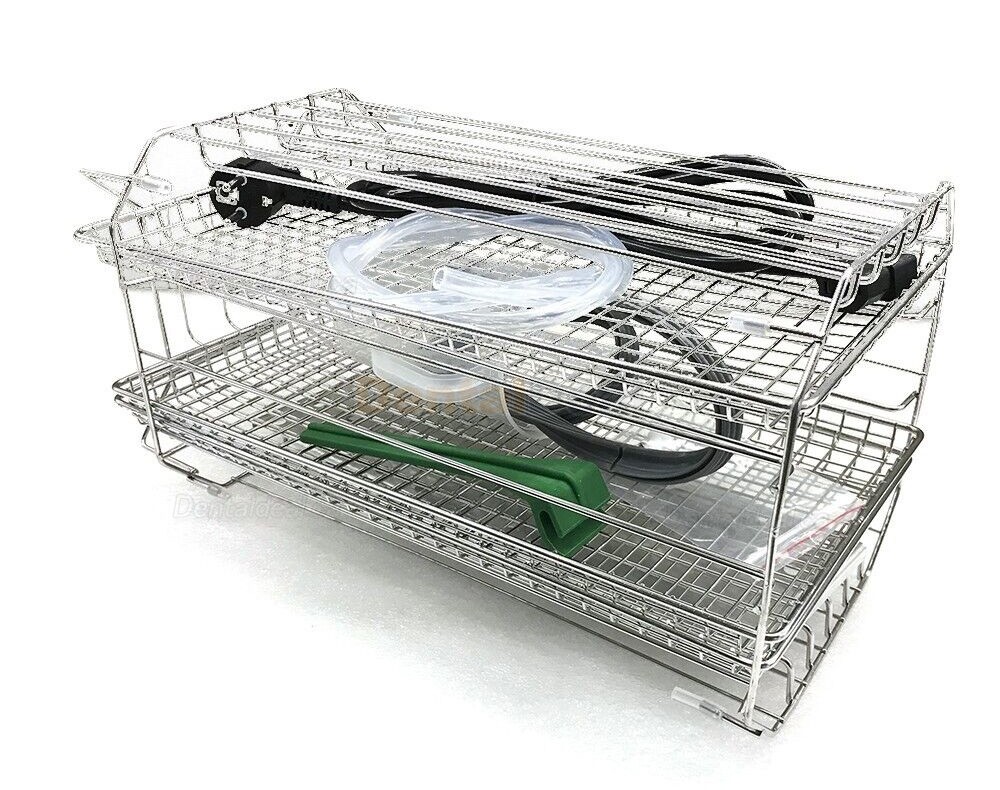

1.6 Accessories:

Tray rack*1pc tray*3pcs Tray holder*1pc

Fuse*2pcs Drain tube*1pc Measuring cup*1pc



1.7 Lock system:

Double control with electric and mechanical lock



1.8 Guard against dry-combustion

1.9 Safety:

Over-heat protection Safety valve



1.10 Machine weight:

16 liter(G.W:28.8kg，N.W:27.3kg)

18 liter(G.W:29.9kg，N.W:28.4kg)

23 liter(G.W:33.8kg，N.W:32.3kg)
