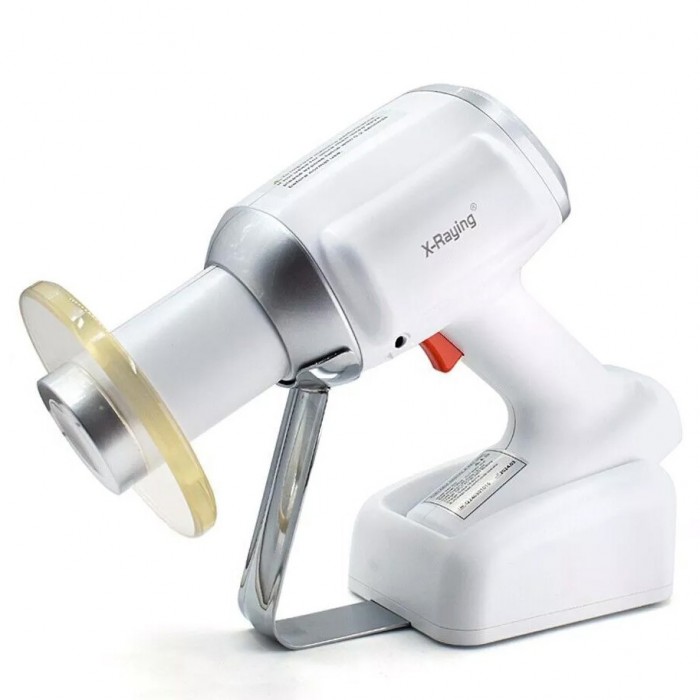

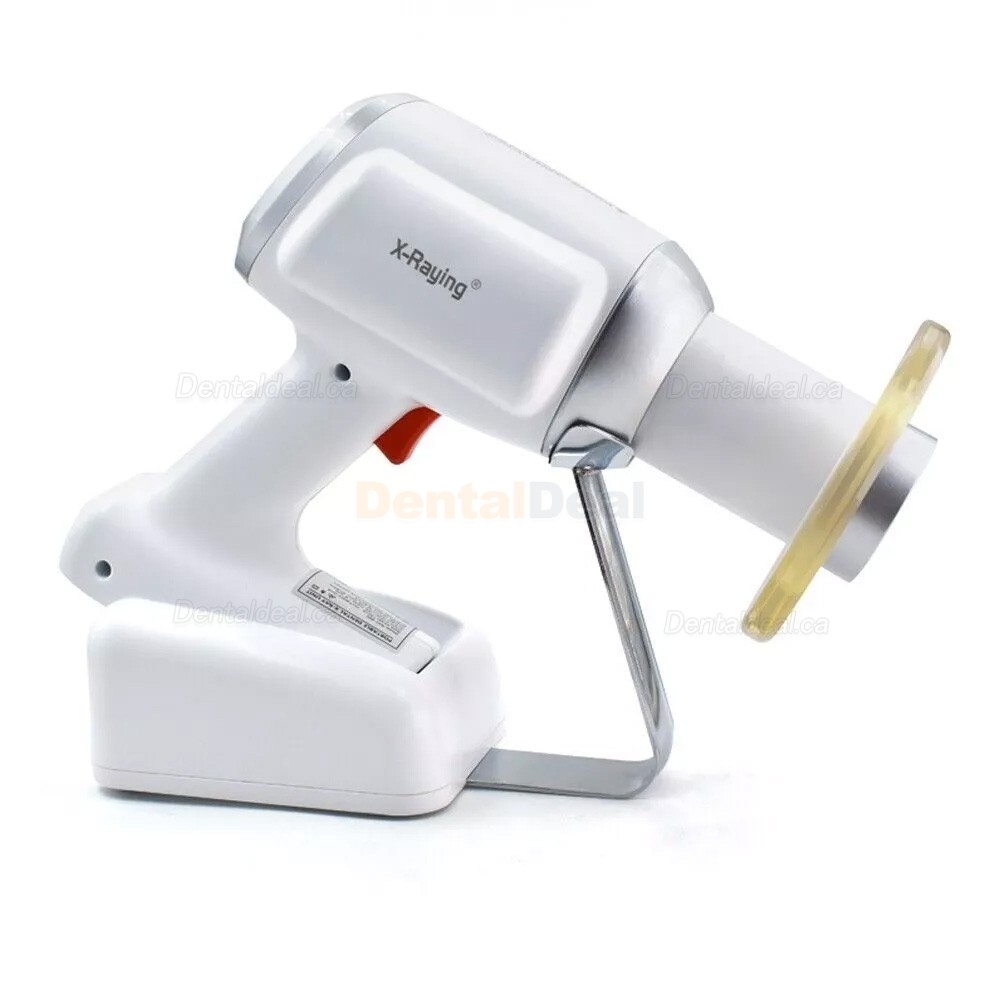

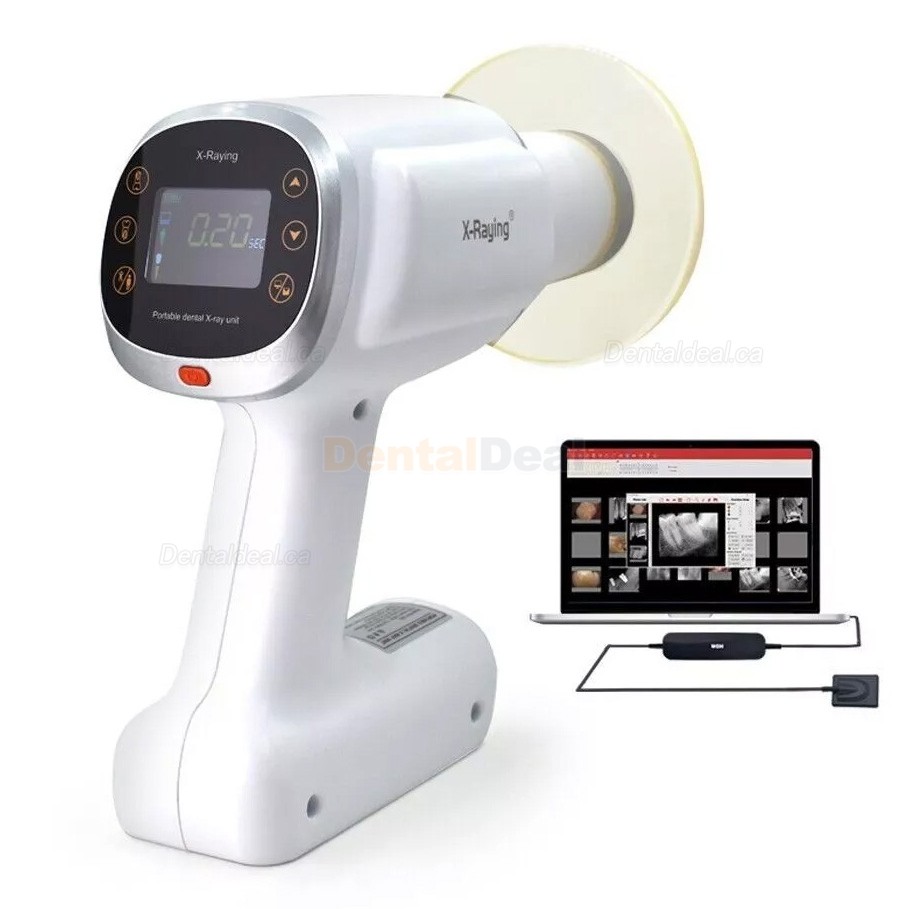

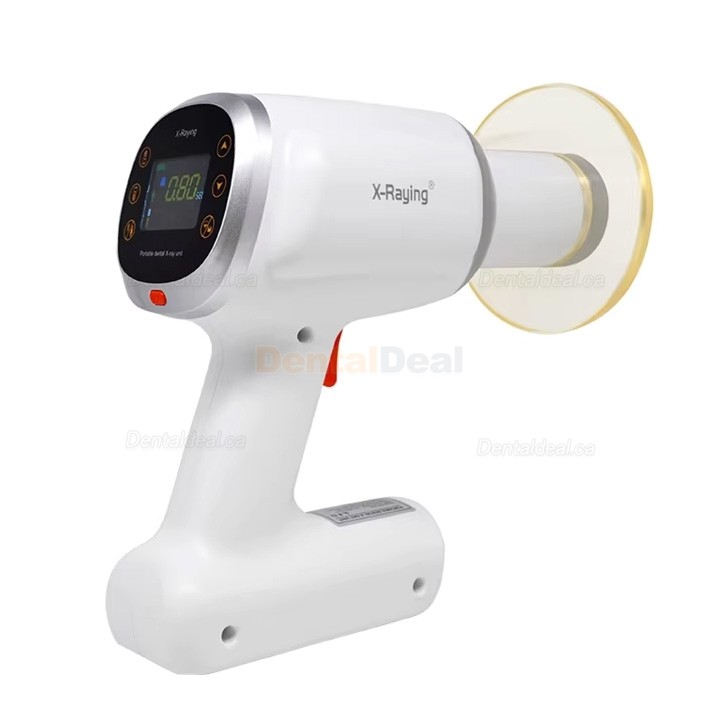

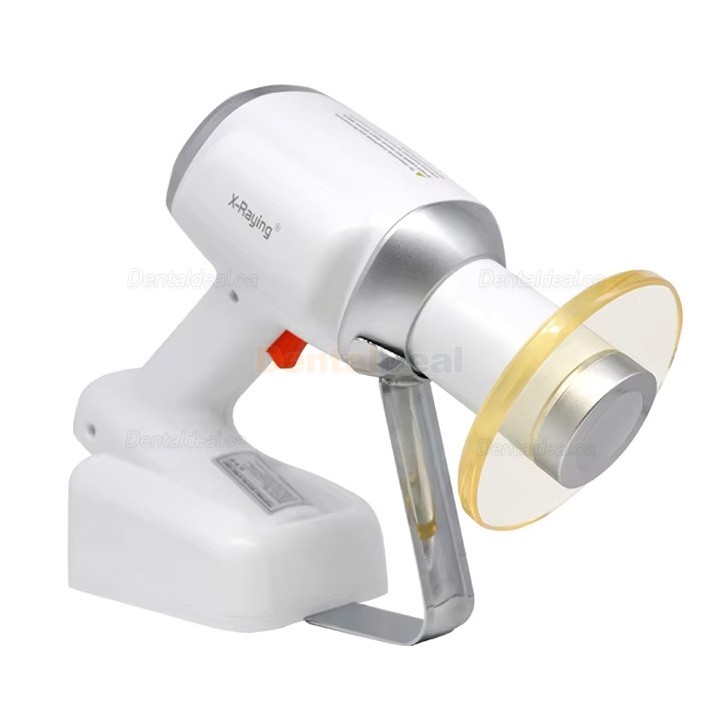

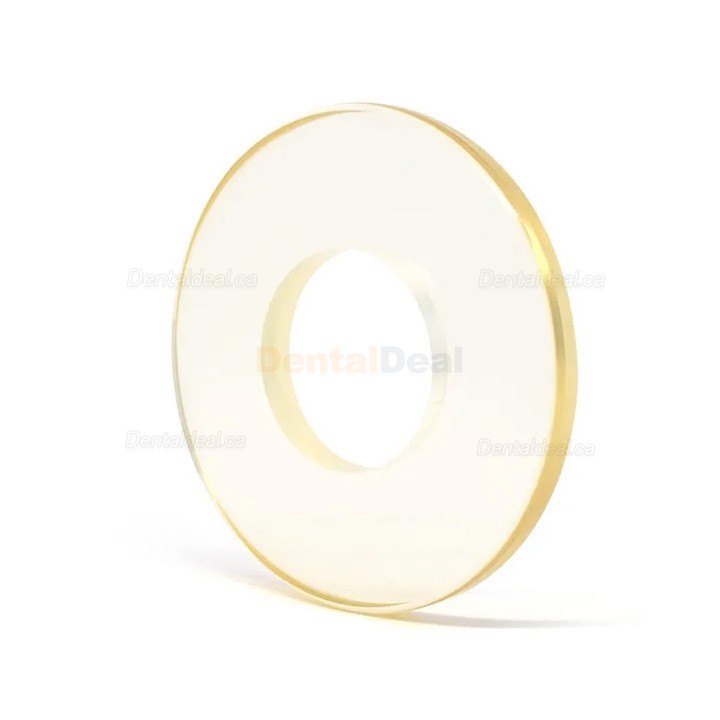

RAY-500X Portable Handheld Digital Dental X-Ray Machine with Protective Shield

RAY-500X Portable Handheld Digital Dental X-Ray Machine with Protective Shield

Working Principle:

The device uses an X-ray tube, where electrons are generated at the cathode and accelerated toward a metal target to produce X-rays. These X-rays pass through tissues and are captured by image-receiving devices (e.g., phosphor screens, film, or digital sensors) to create images of internal structures.

Application:

For intraoral dental imaging. When used with compatible image receivers, the device captures images.

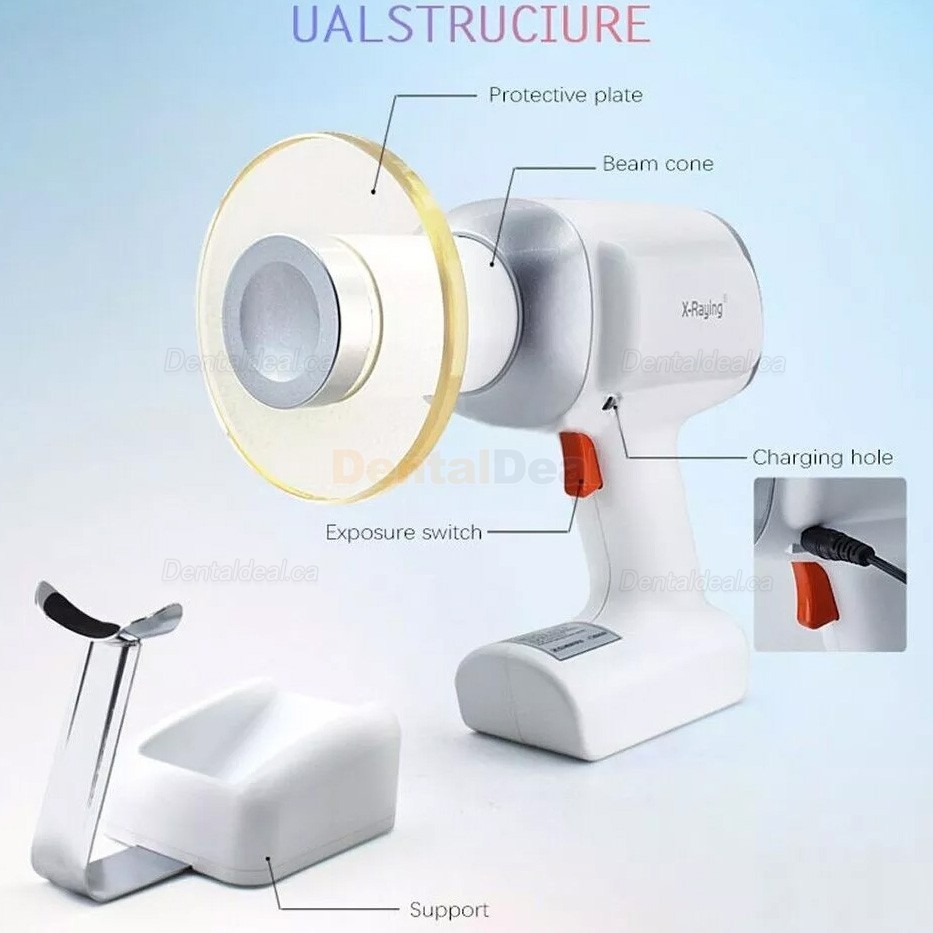

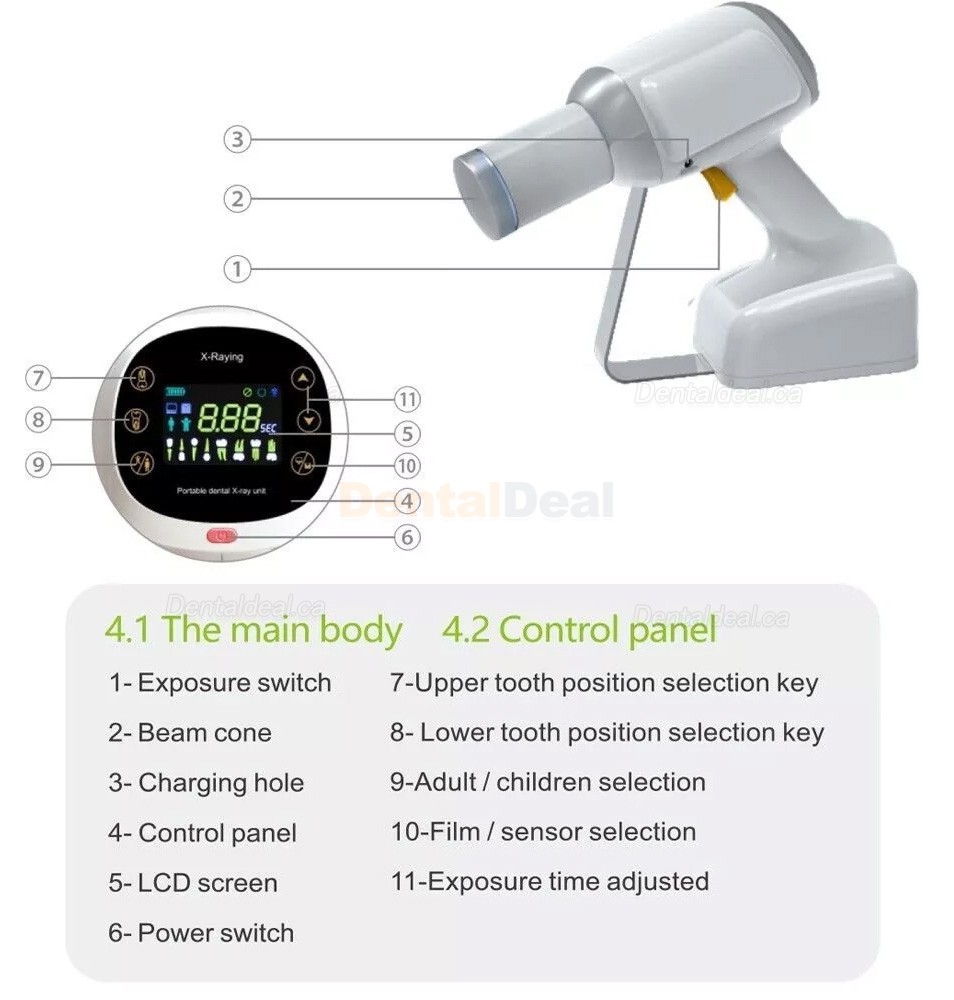

Structure:

The system includes a main unit (X-ray tube, controller, rechargeable battery), beam-limiting tube, power adapter, stand, and exposure switch.

Specifications:

Tube Voltage: 60kV

Tube Current: 2mA

Exposure Time: 0.1–2.0 seconds

Frequency: 30kHz

Rated Power: 120VA

Distance from Skin to Cone: 150 mm

Tube Focus: 0.4 mm × 0.4 mm

Battery Capacity: 1550 mAh

Charger Input: AC 110V–240V

Output Voltage: DC 14.8V–16.8V

Operating Temperature: 5°C – 40°C

Relative Humidity: <75% RH

Net Weight: 1.7 kg

Gross Weight: 4.0 kg

Device Dimensions: 276 × 125 × 235 mm

Packaging Dimensions: 420 × 185 × 350 mm;

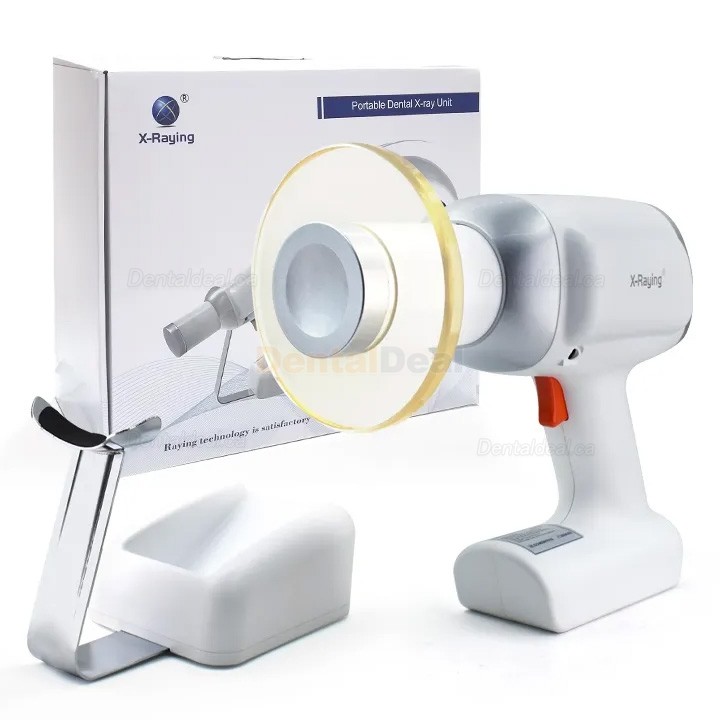

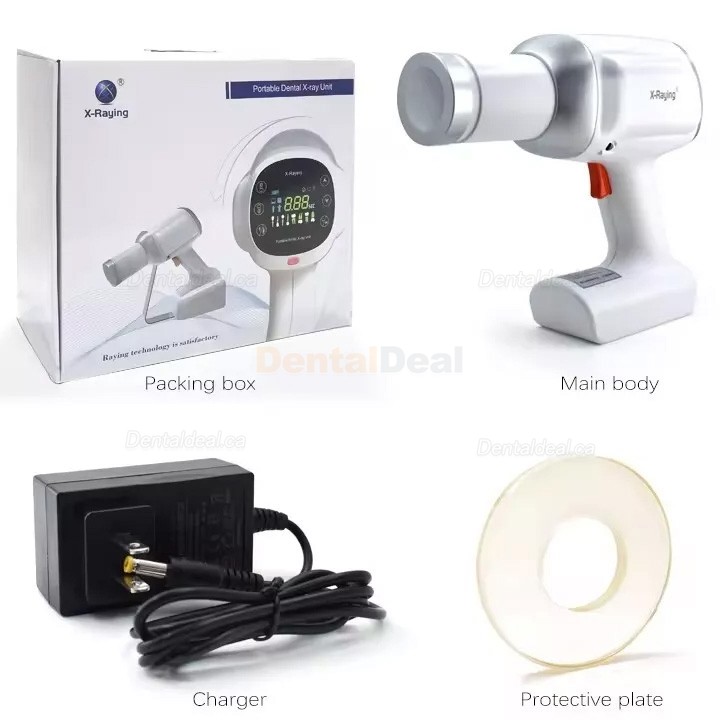

Packing List:

Main Unit ×1

Adaptor ×1

Power Cord (2m) ×1

Beam Limiting Device ×1

Lead Apron ×1

English Manual ×1

Packing Box ×1
