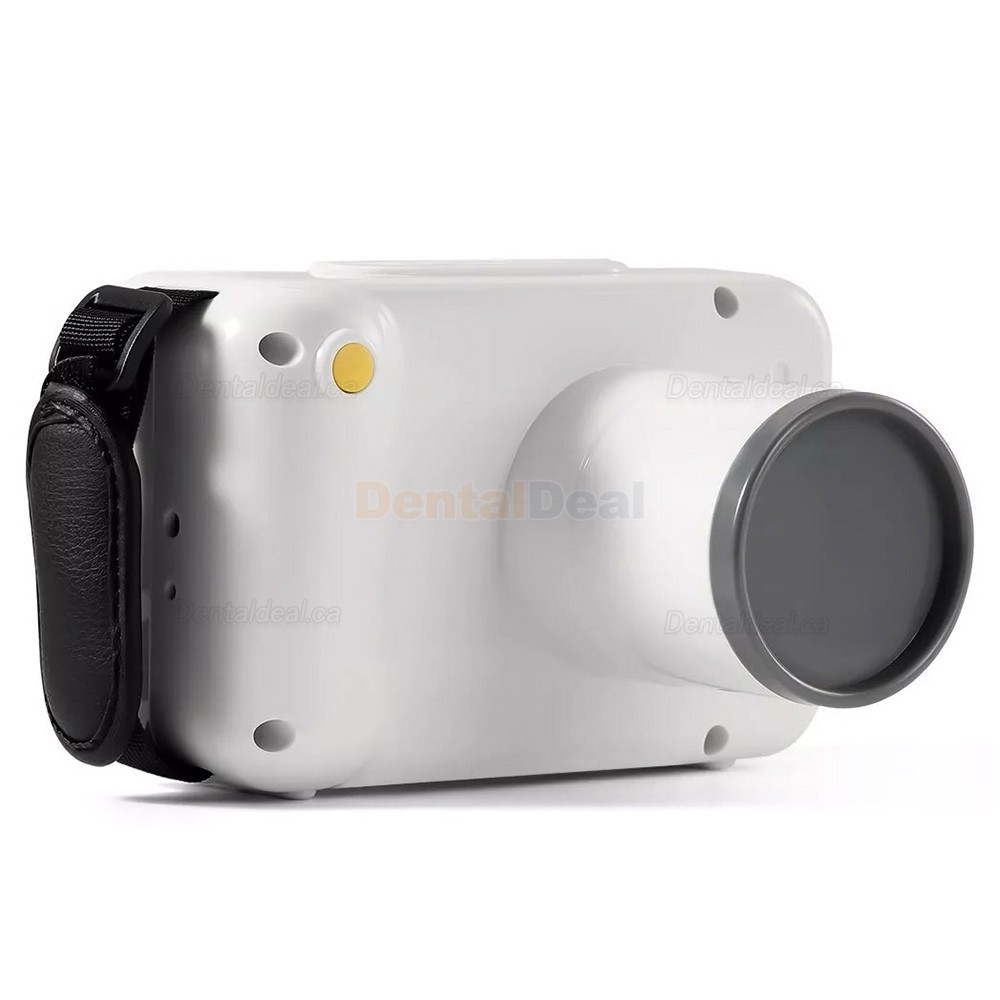

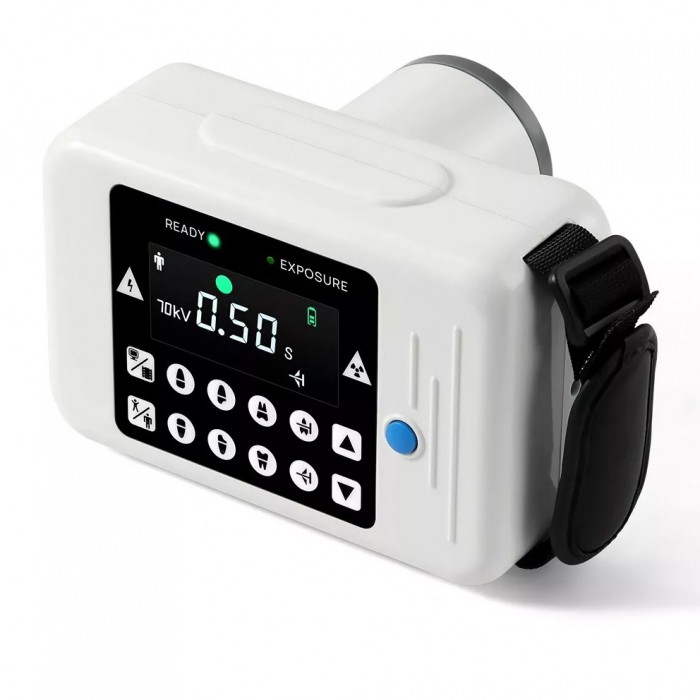

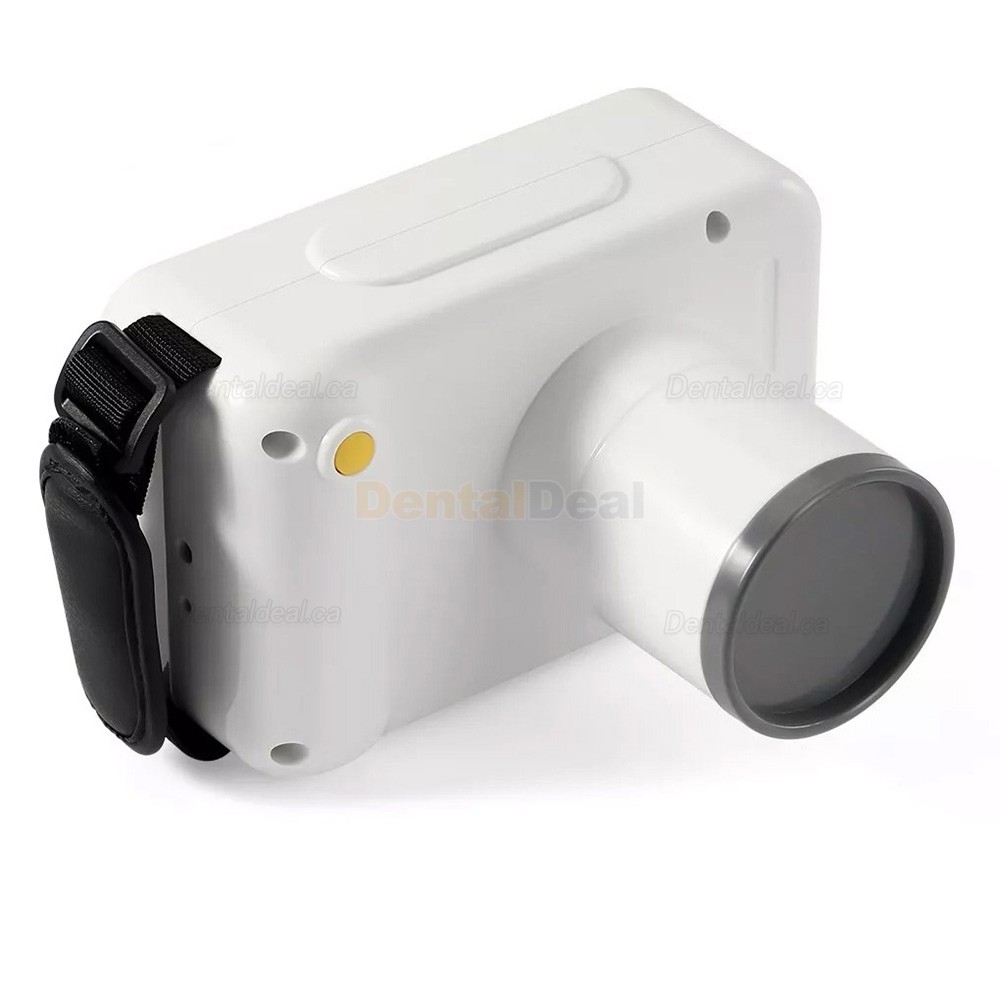

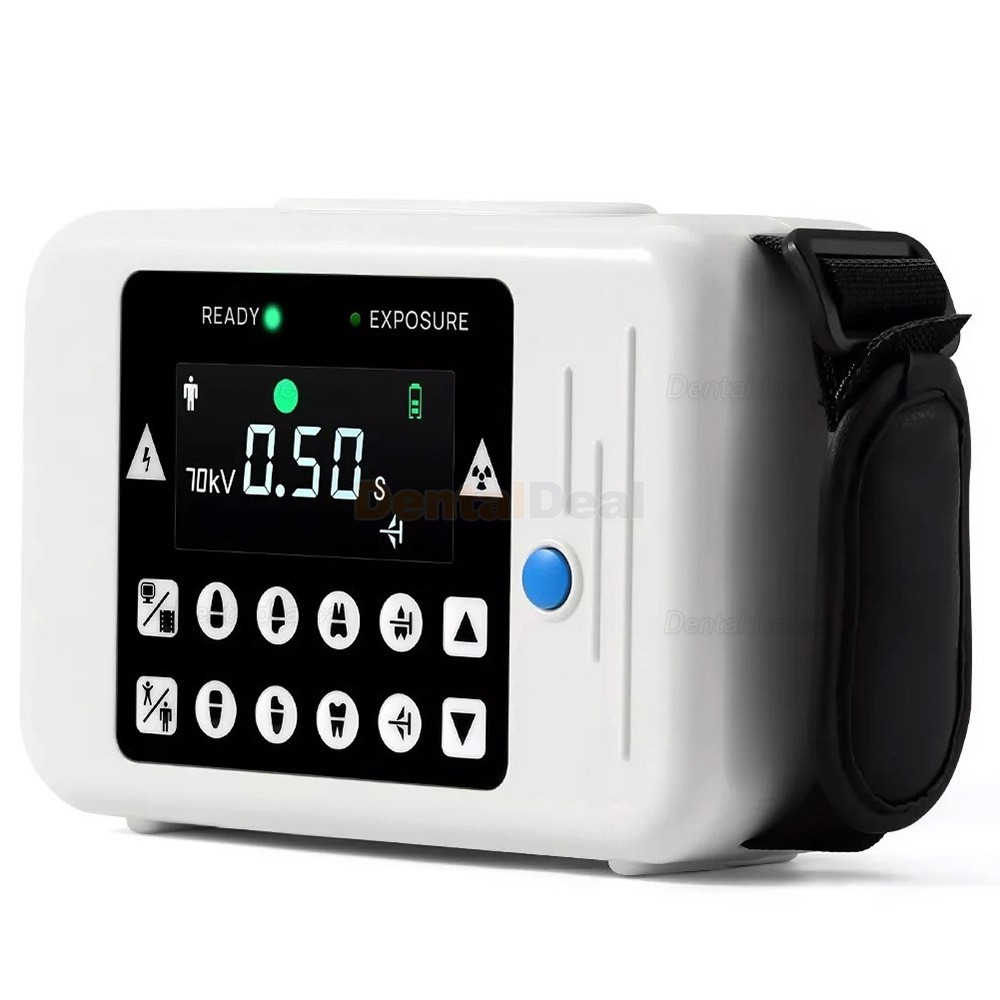

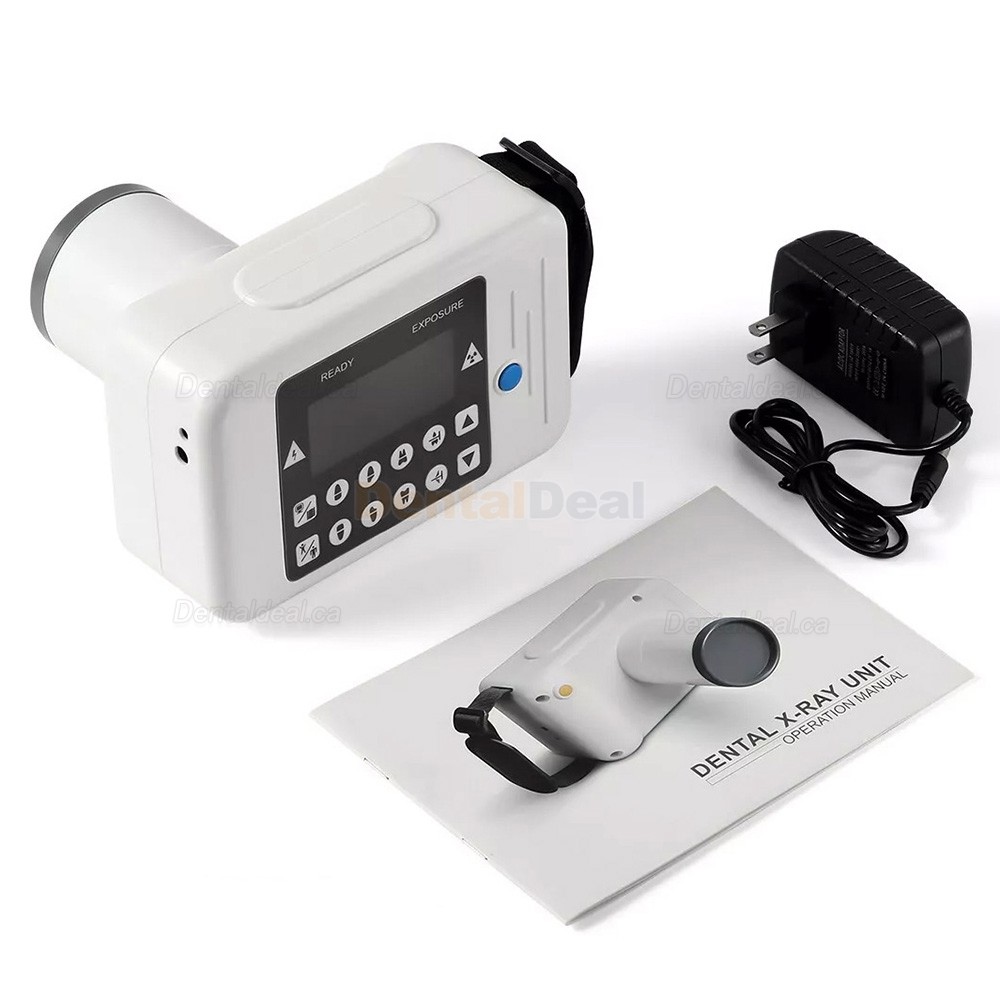

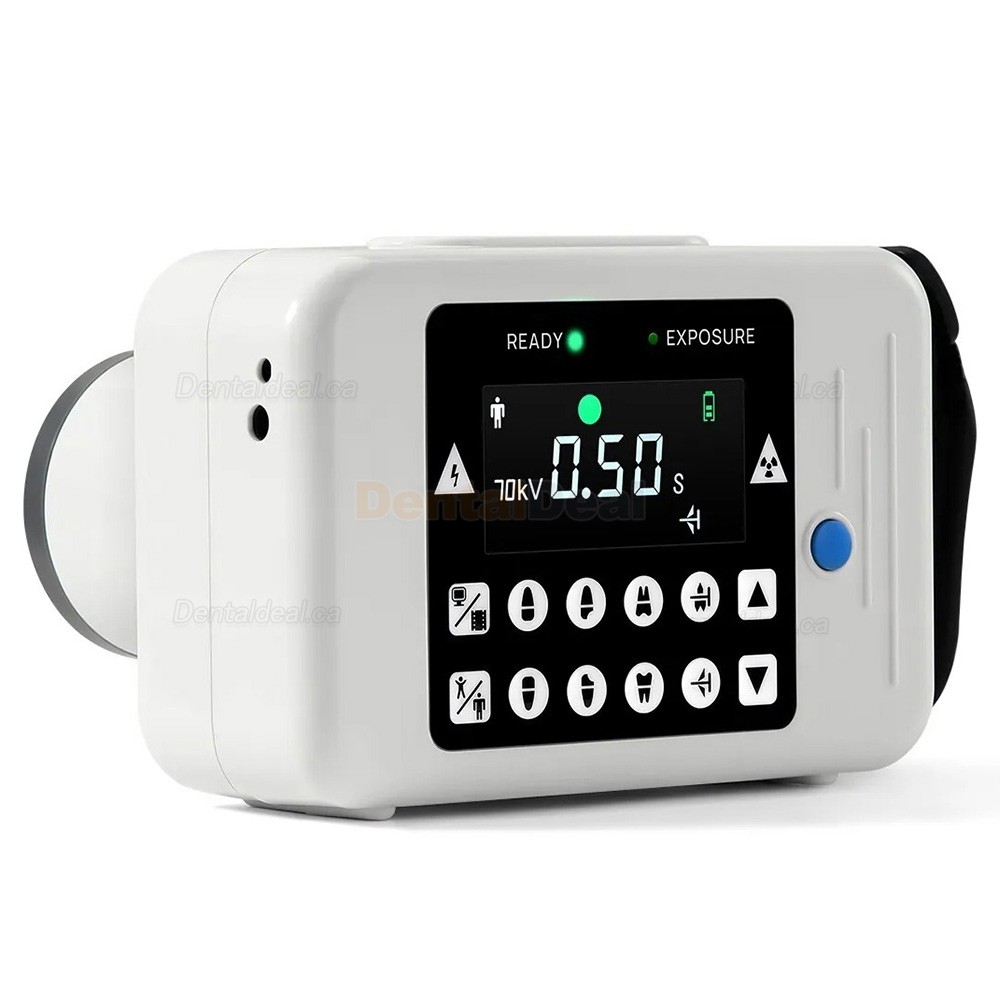

RAY-121 Digital Handheld Dental X-ray Machine Portable Dental Xray Imaging Unit

RAY-121 Digital Handheld Dental X-ray Machine Portable Dental Xray Imaging Unit

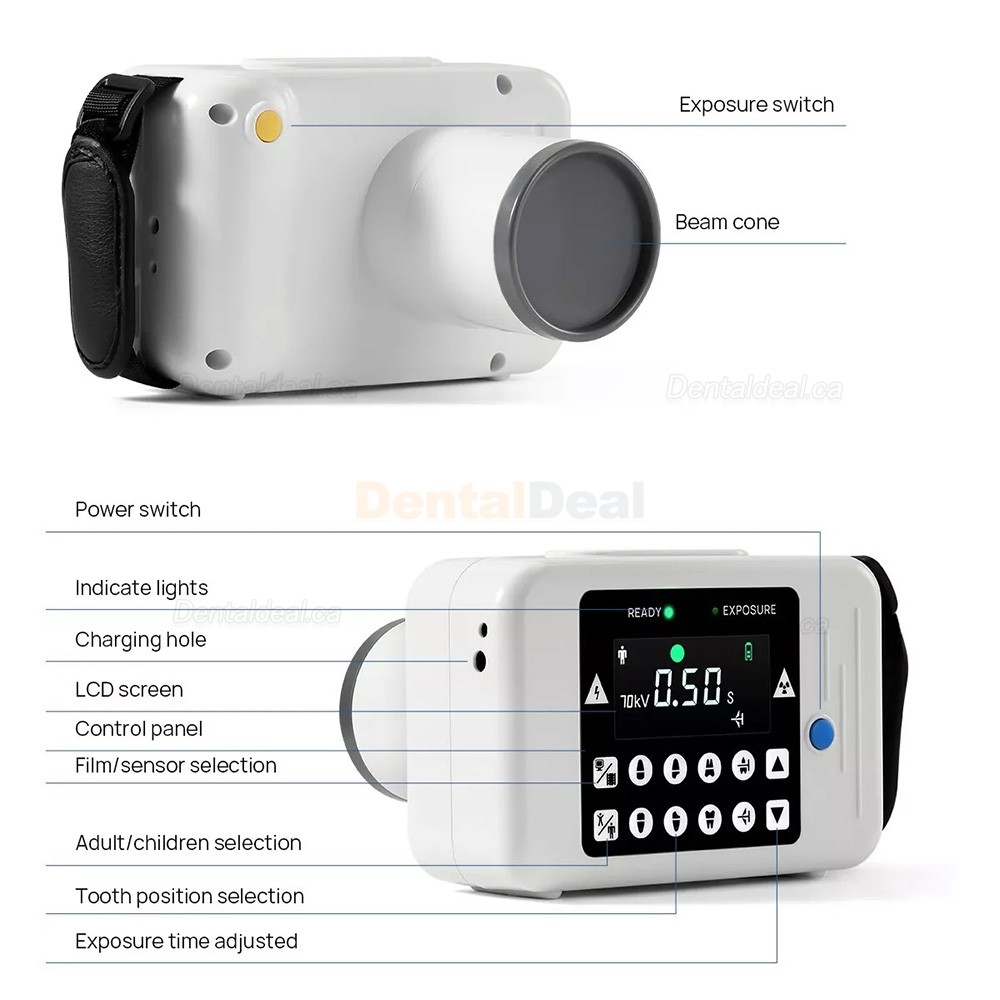

Features:

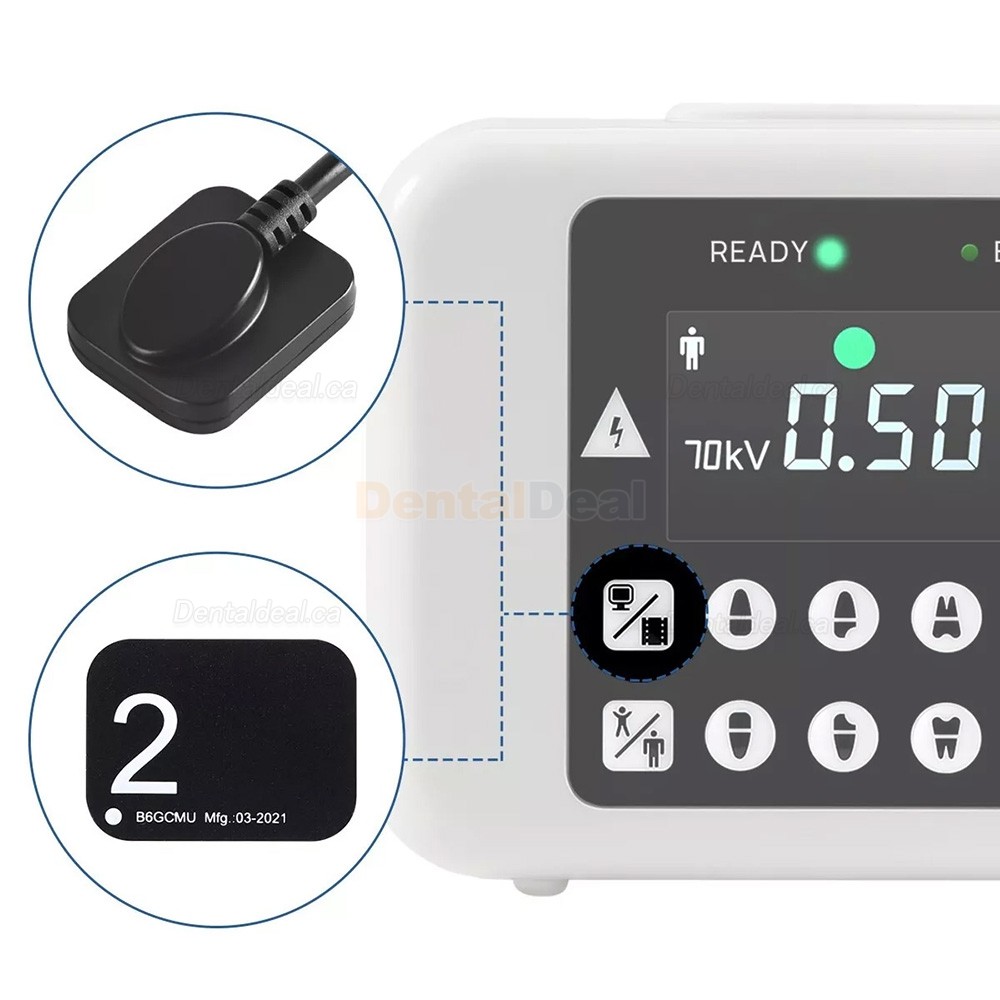

Compatible with digital sensors, X-ray film, and image plate scanners.

Compact and portable for clinical or field use.

Operates with frequency conversion and direct current (DC) technology.

The structure is designed to reduce radiation leakage (≤20 μGy/h).

Uses an integrated circuit system for coordinated function and insulation protection.

Preset exposure modes available for both adult and pediatric use.

Powered by a rechargeable battery; Designed for approximately 400 exposures per full charge.

Technical Parameters:

Tube voltage: 60 kV

Tube current: 2 mA

Exposure time: 0.1–2.0 seconds

Frequency: 30 kHz

Rated power: 120 VA

Distance from skin to cone: 105 mm

Focal spot size: 0.8 mm × 0.8 mm

Battery: DC 14.8V, 1600 mAh

Charger input voltage: AC 100V–240V ±10%

Charger output voltage: DC 16.8V

Operating temperature: 5°C – 40°C

Relative humidity: <75% RH
