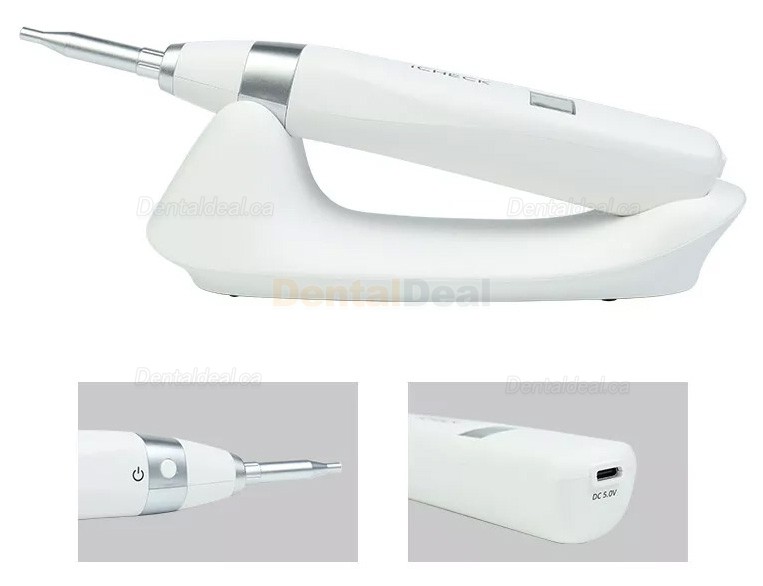

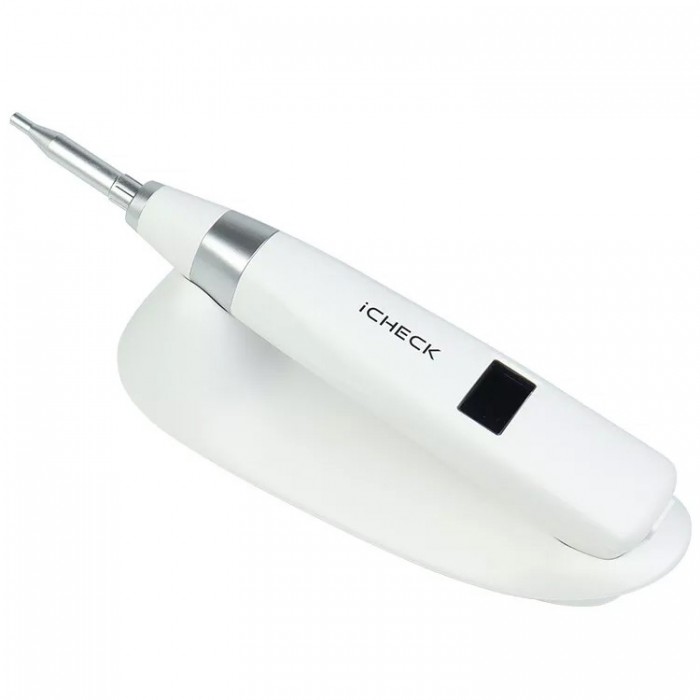

YAHOPE iCHECK Implant Stability Meter Dental Implant Tester ISQ Monitor
Special Offer in July:
- C$10 Off Over C$150
- C$20 Off Over C$300
- C$35 Off Over C$500
- C$55 Off Over C$800
- C$70 Off Over C$1000
- C$100 Off Over C$1500
- Enjoy Discount at Checkout!
- Valid Till July 31th, 2026
- Note:No coupon code needed, please place order directly!
Buy It Now:C$1336.99
- Manuals and Documentation:
YAHOPE iCHECK Implant Stability Meter Dental Implant Tester ISQ Monitor
Description:

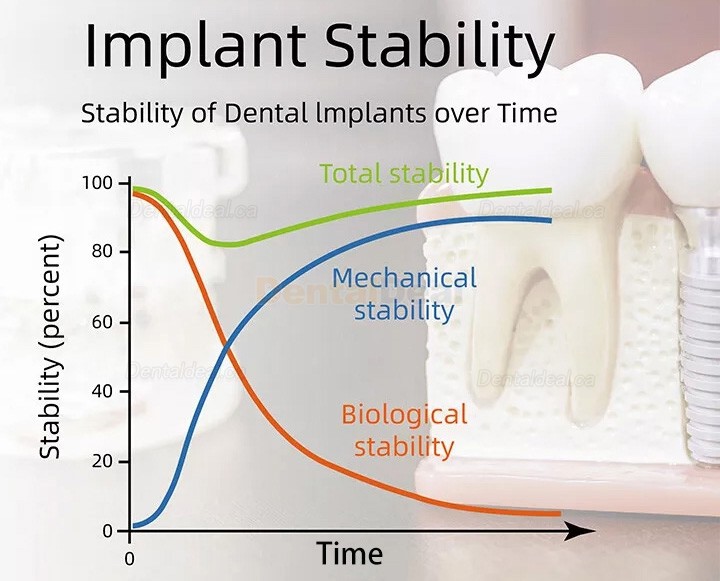

Mechanical stability refers to the initial physical stability between the implant and bone after implantation.
Biological stability refers to tissue-related stability around the implant during the healing period.
Total stability refers to the overall stability condition involving the implant, bone, and surrounding tissues.
Features:
Alternative to torque wrench-based detection.
Uses tapping technology and an automatic system for implant stability assessment.

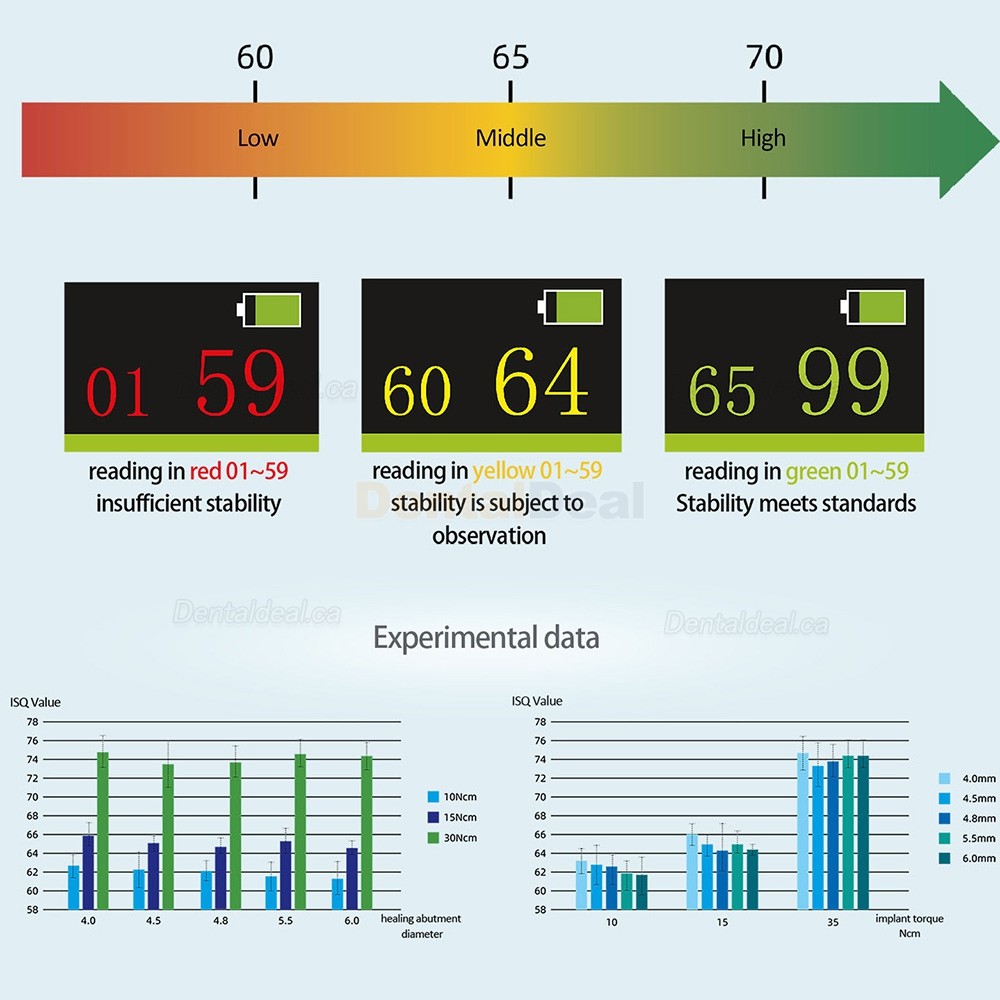

Tricolor display with values shown from red to green.
Technical Specifications:
Accuracy: Display value ±3
Tapping Speed: 0.5 sec per tap
Tapping Strength: <1.0N
Number of Taps: 2-4 taps until the measured value reaches 1-59; for values 60-99, the device taps 6 times to assess stability.

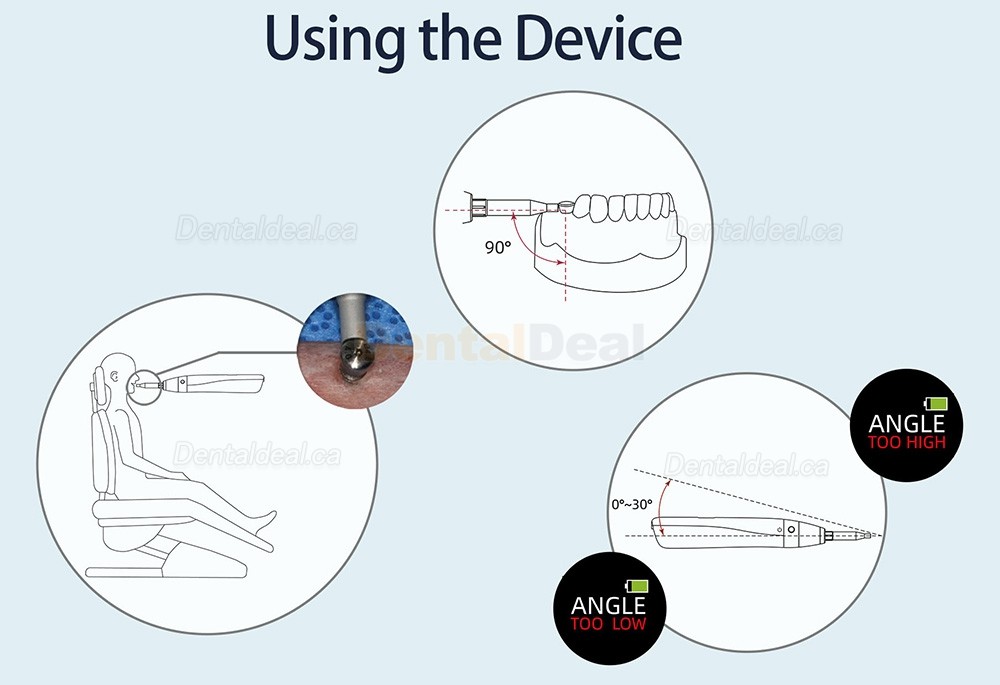

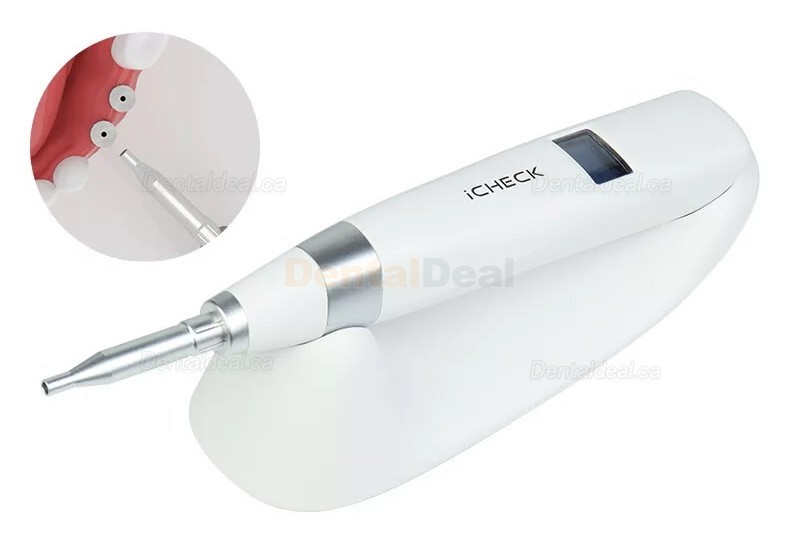

Using the Device:
Keep the host as close to the horizontal line as possible, within 0 to 30 degrees.
Perform the test twice: once on the buccal side and once on the lingual side.
If the difference between the two measurements is less than 5, take the value from the first measurement.
If the difference between the two measurements is 5 or greater, perform a third measurement.

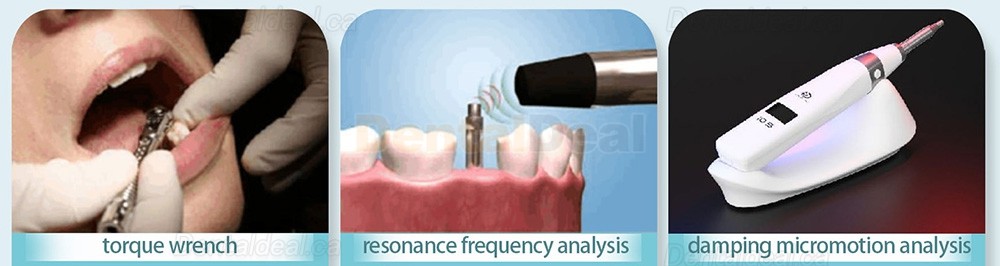

Comparison of methods for measuring implant stability
Torque wrench: For implant placement only.
Resonance frequency analysis: Cannot be used after prosthetic restoration is placed.
Damping micromotion analysis: The product features measurements and protective programs.
