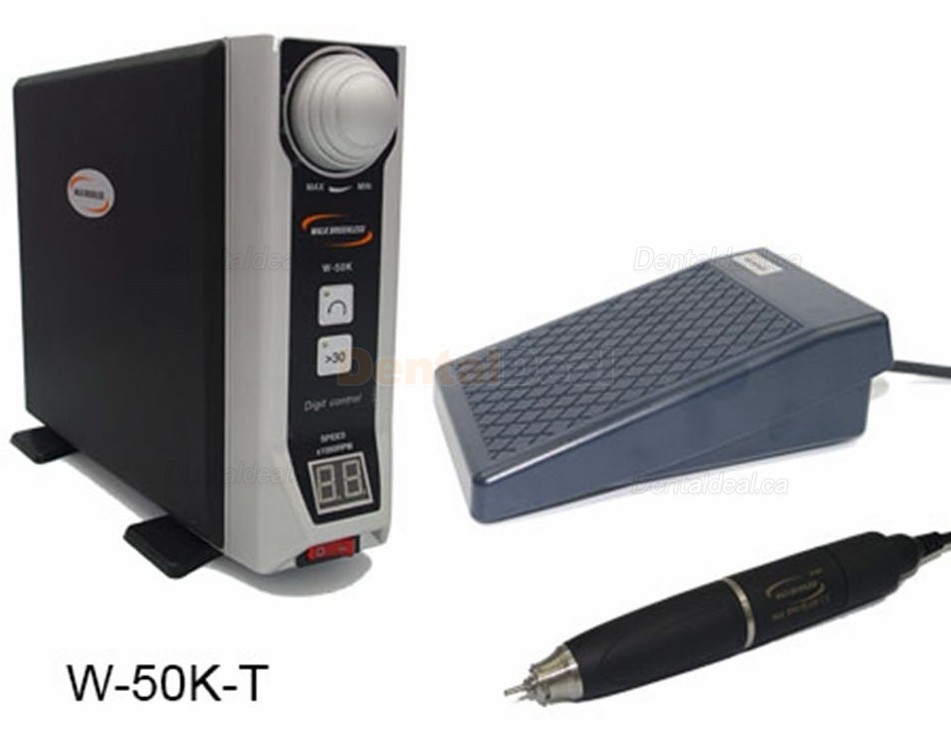

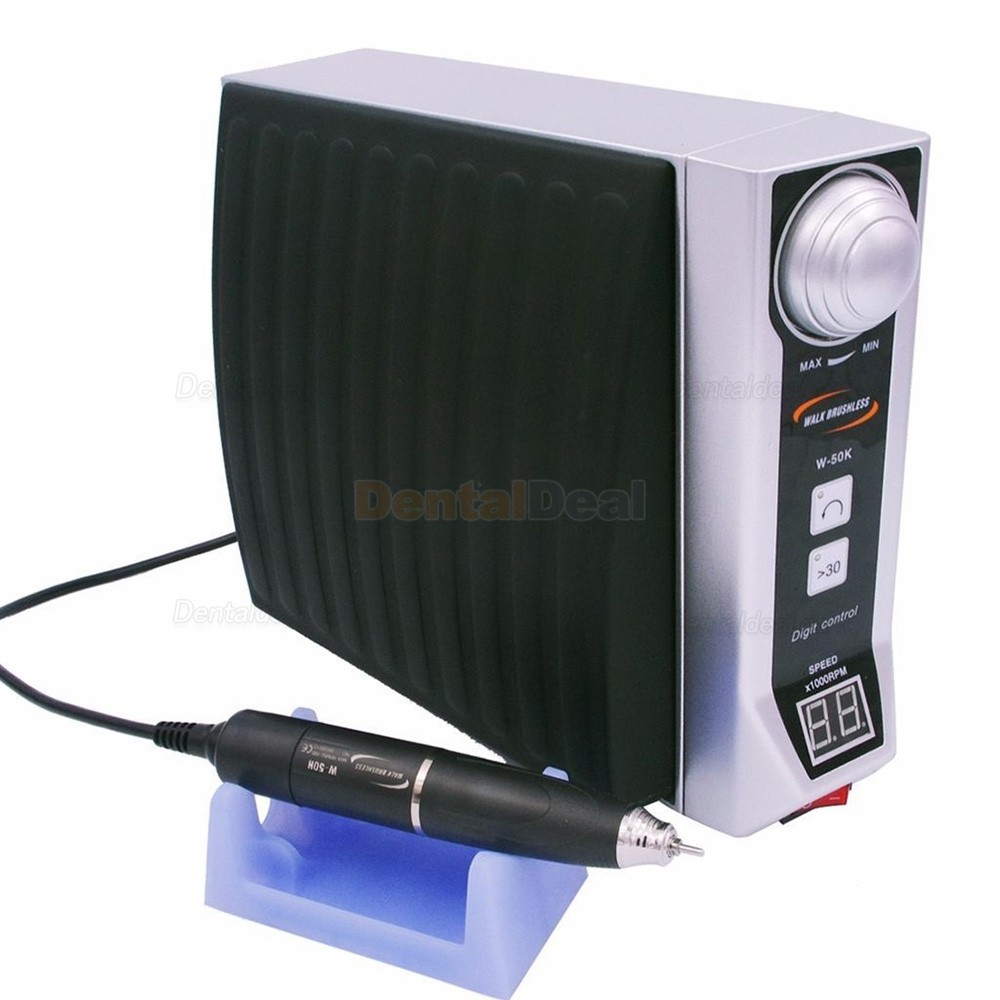

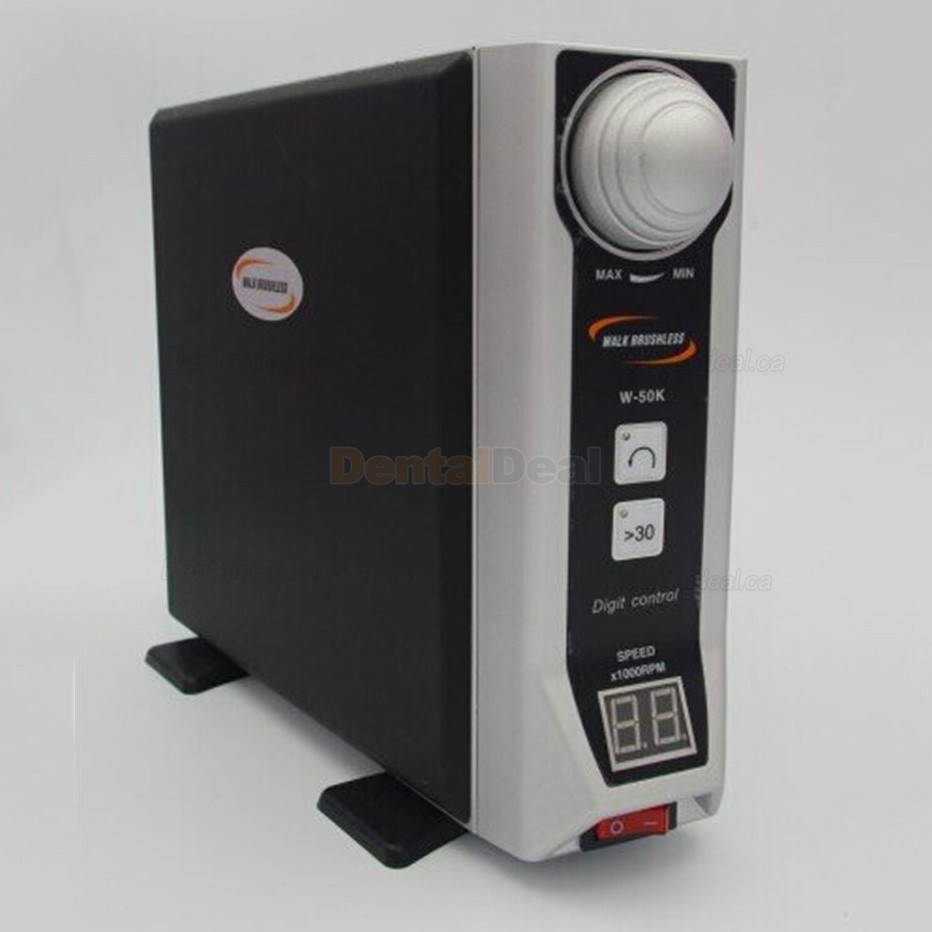

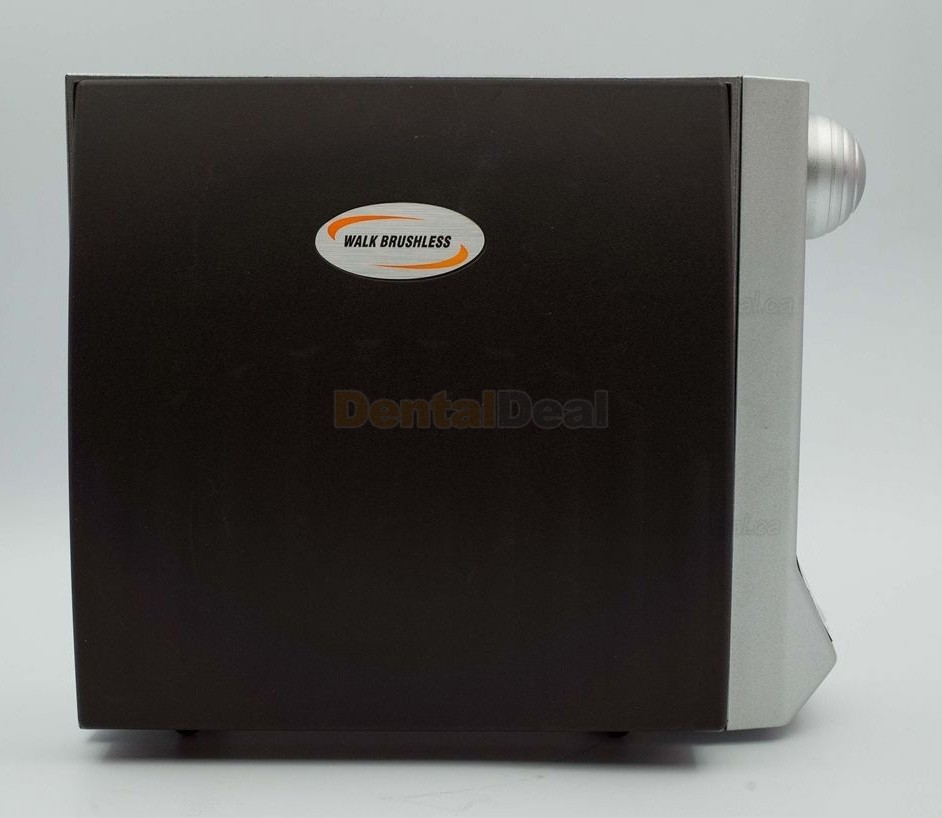

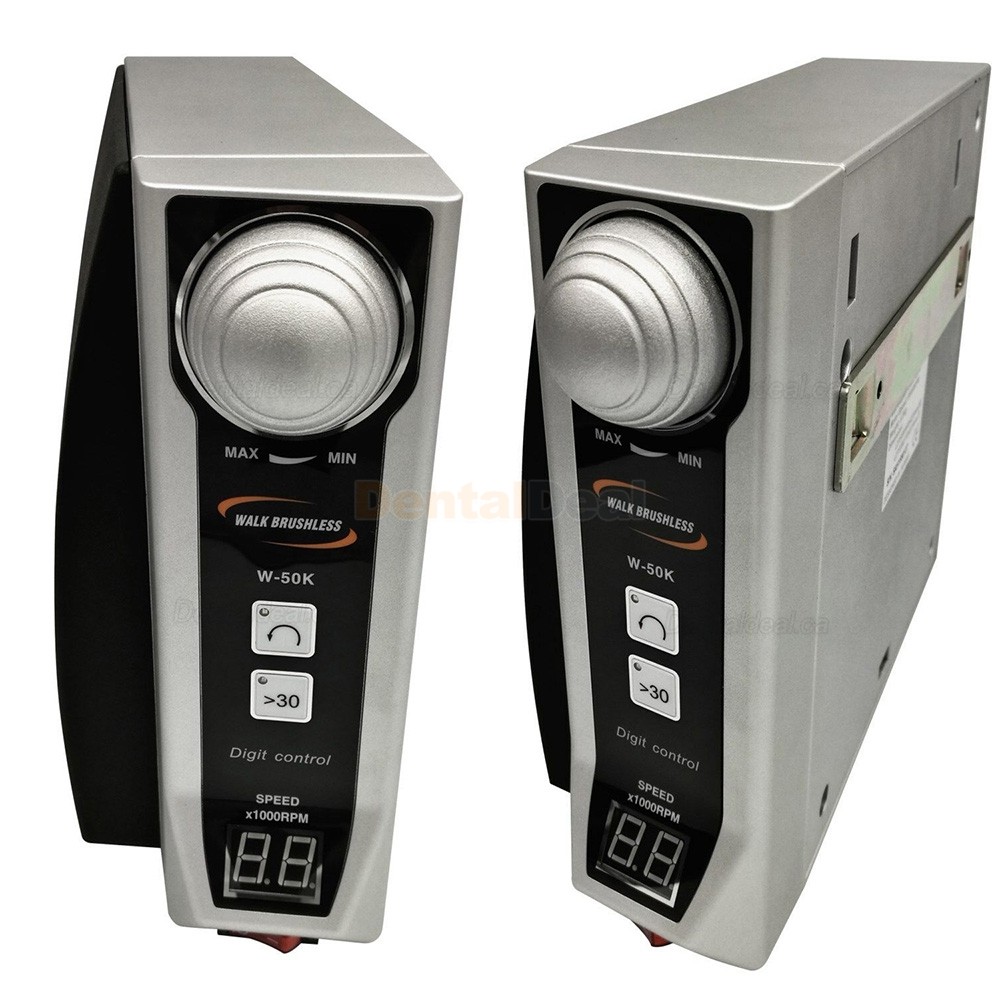

WALK BRUSHLESS Brushless Micromotor Polishing Micro Motor with 50000 RPM Handpiece

WALK BRUSHLESS Brushless Micromotor Polishing Micro Motor with 50000 RPM Handpiece

Specifications:

Controller box Size: 250×225×95mm(L×W×H)

Controller box Weight: 2.8kg(net)

Handset Size: 148x27mm (L×D)

Handset Weight: 320g (net)

Max output power: 220W

Standby power dissipation: <1W

Max. torque: 11Ncm

Temperature rise: No-load ,6℃ Max

Loaded: 14℃ Max

Speed setting : 0~30000~50000RPM

Speed ripple: < 1% of set speed

Power voltage: 250VAC/5A

Turnaround mode: Rotation direction settable

Inversion: < 5000RPM

Fault self-diagnosis: E0~E7 Display

Circuit protection: Overheat protection, overload protection, over-current protection

Dynamic response: (1.1s to start and 1.2s to stop)

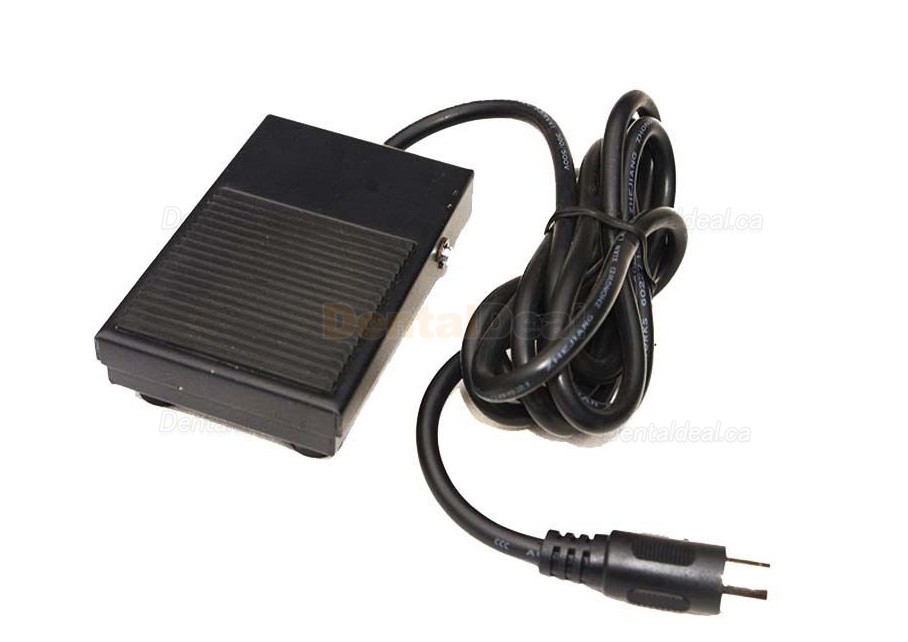

Drive Mode: On/off foot pedal, Manual operation

SKU: SA-D-W-50K-T-220-EU
