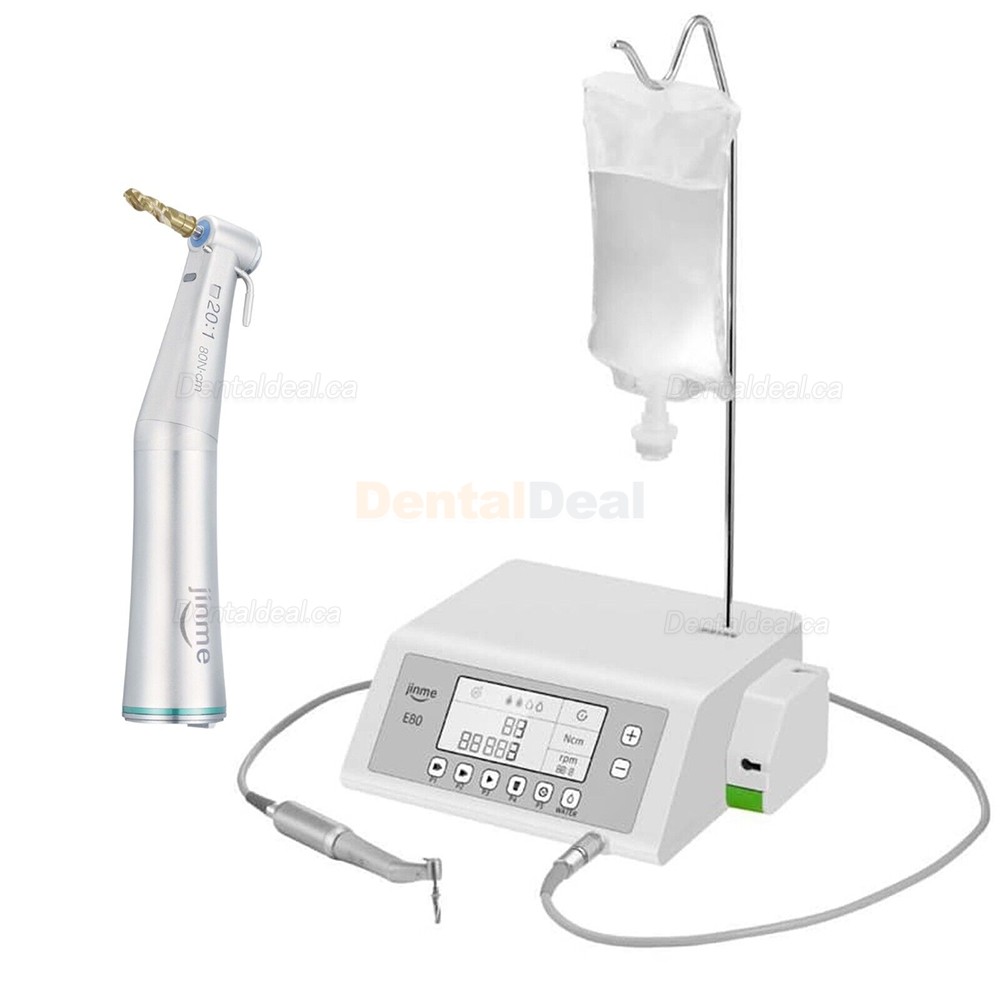

JINME Dental Brushless Implant Surgical Machine with LED 20:1 Surgical Contra Angle

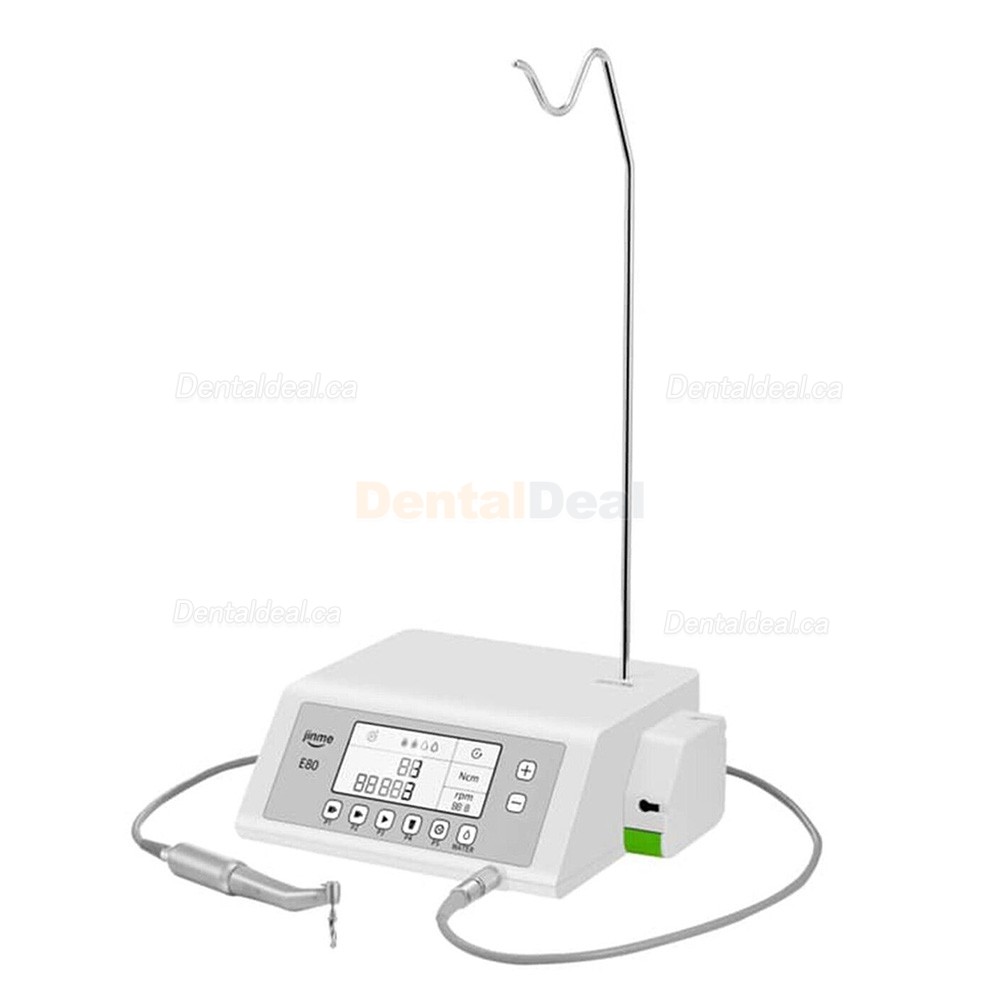

E80 Implant System

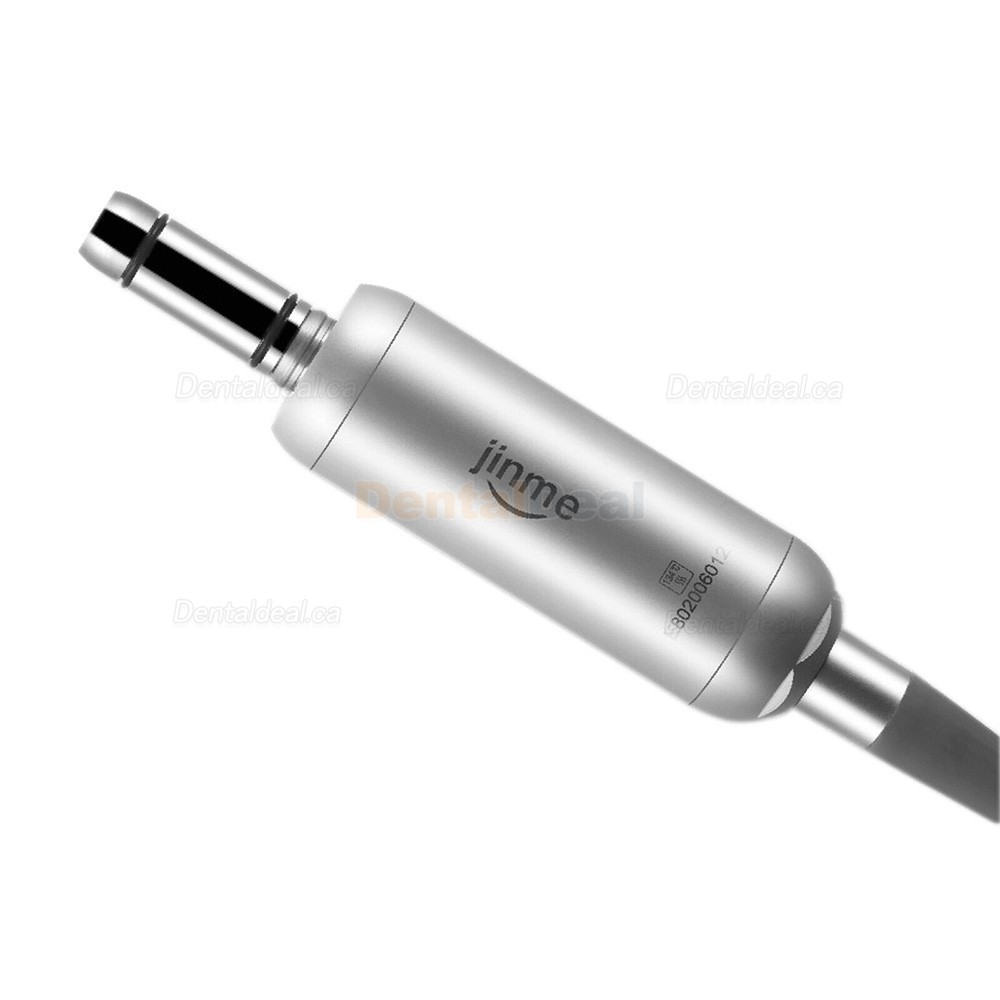

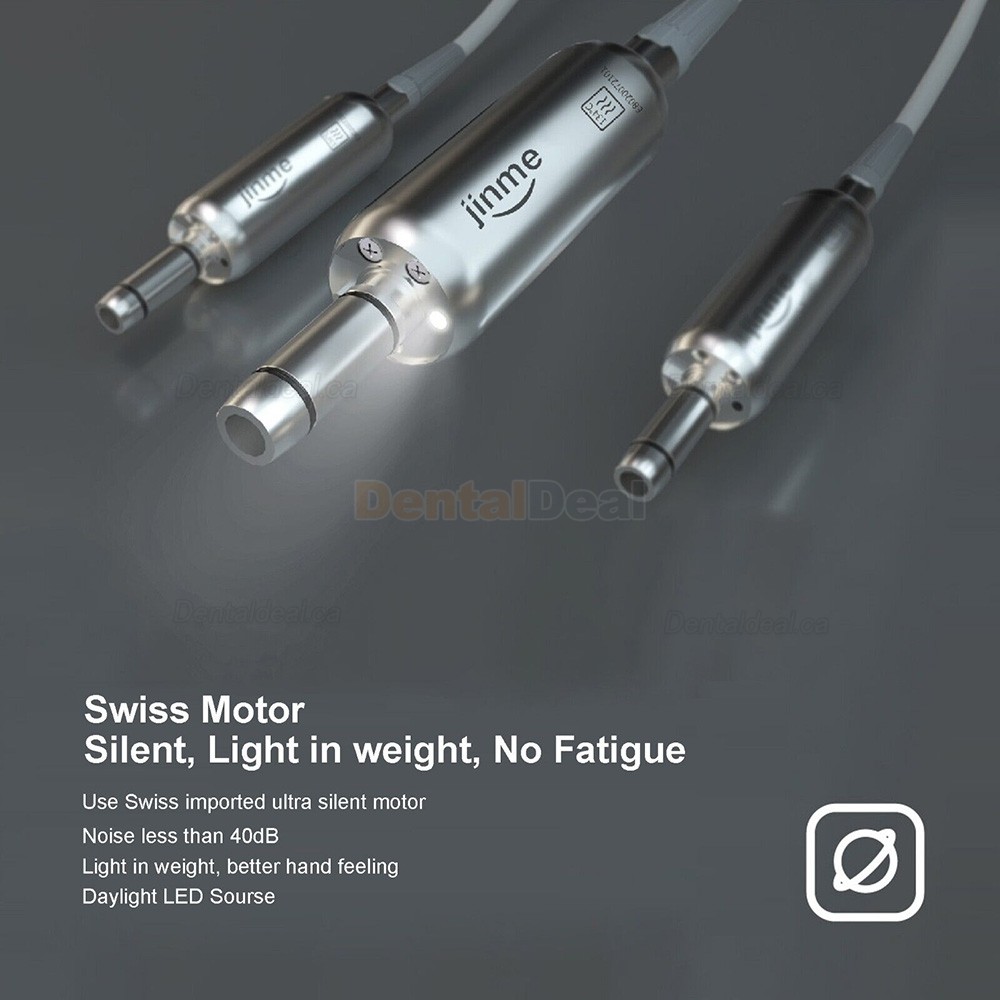

Equipped with an imported Swiss motor.
Fitted with German bearings;

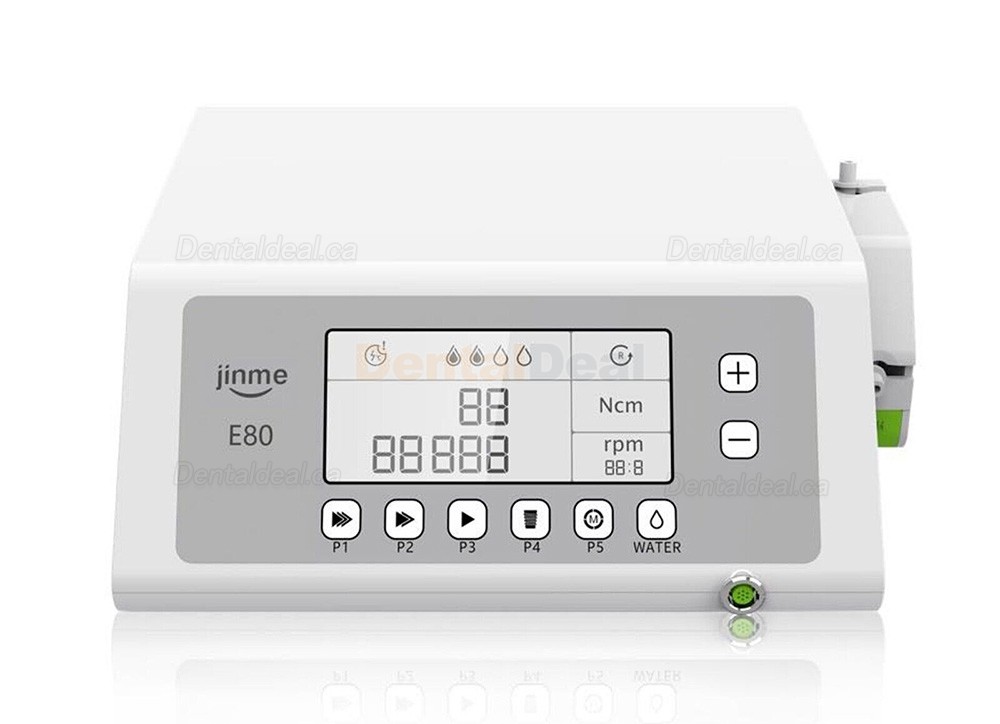

Features a large LCD screen for real-time display and adjustable parameters.
The system includes a variable transmission and a responsive foot pedal.
Auto-reverse function activates when resistance is detected.
Technical Specifications
Model: E80
Power Input: 110V or 220V
Current: 0.1–0.8 A
Motor Torque: Max 5.5 N·cm
Rotation Speed: 100–40,000 rpm
Net Weight: 5.7 kg
Gross Weight: 7.3 kg

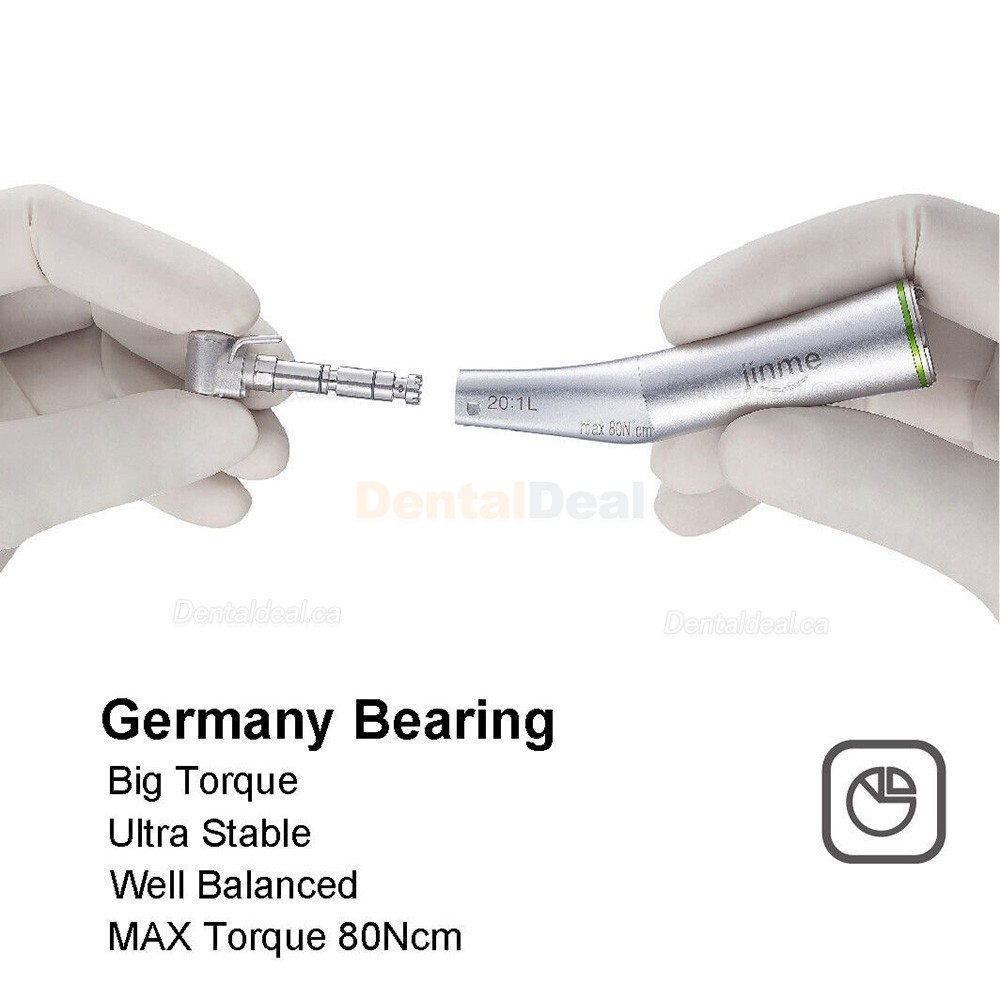

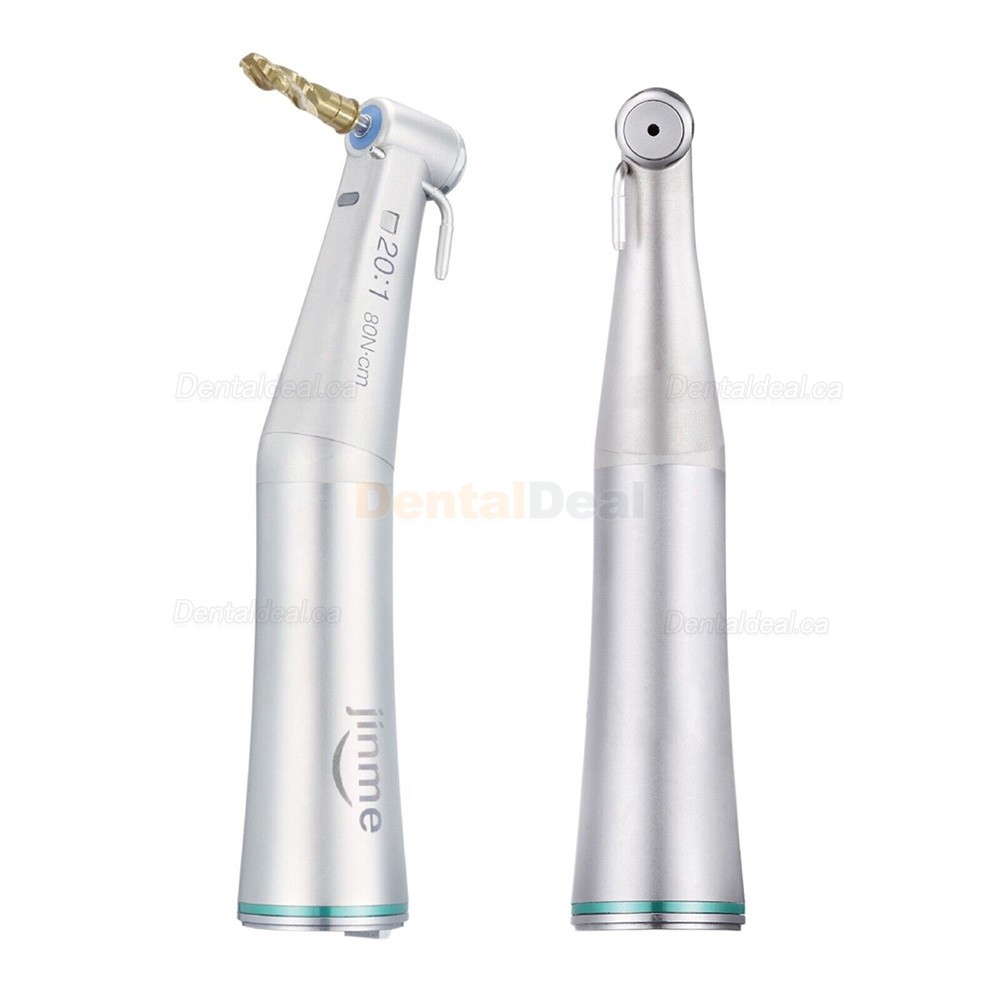

20:1 Fiber Optic Implant Contra Angle
This handpiece features a detachable head design and modular assembly structure;
The handpiece provides a torque output of up to 80 N·cm.
Constructed with stainless steel internally and externally.
The unit incorporates nine German-made bearings, contributing to low operating noise, typically measured below 50 dB.
The radial run-out is controlled within 0.03 mm.
Technical Details:
Max torsion: 80N.cm
Max bur length: 36mm
Max bur diameter: Φ4.7mm
Noise: 50db (typical)
Light source: LED optical fiber
Gear ratio: 20:1
Moving method: 360° rotation (may be limited by connected tubing)
Machine head diameter: Φ9.6mm
Radial run-out: 0.03mm (typical)
Bur changing method: push type
