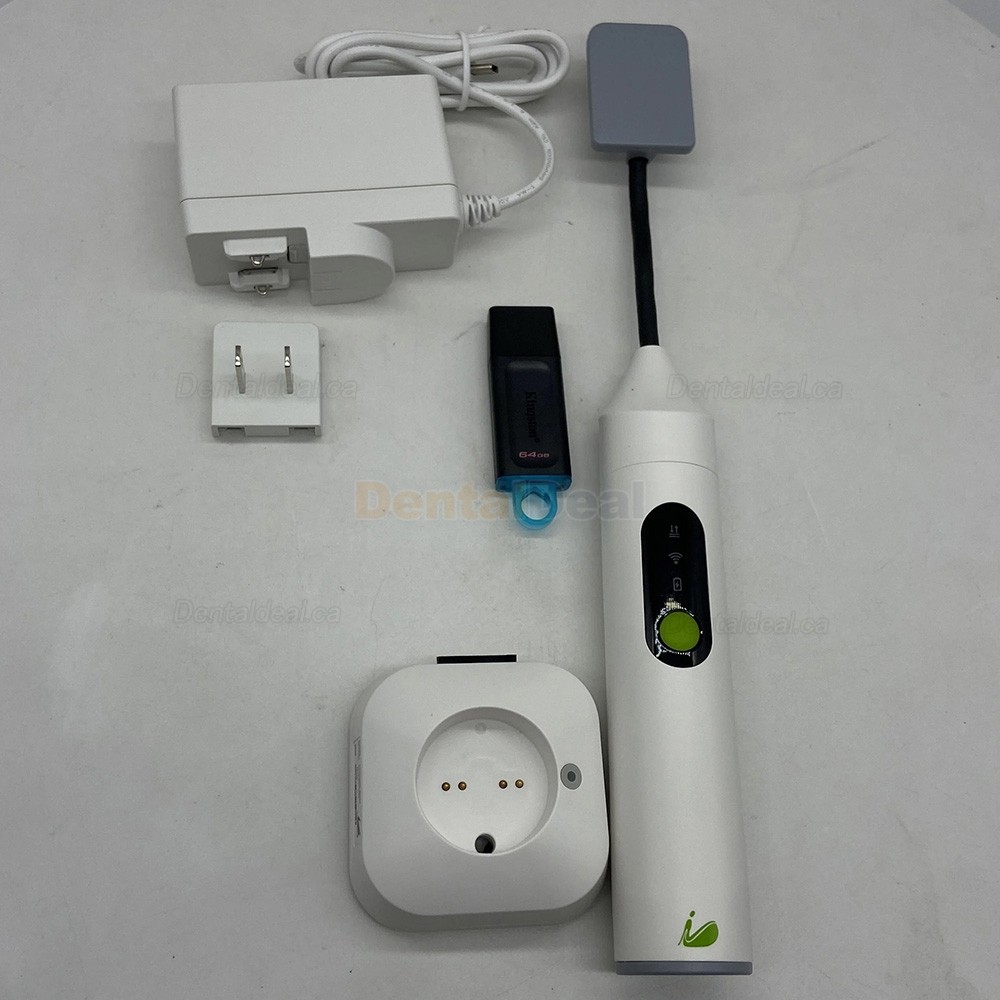

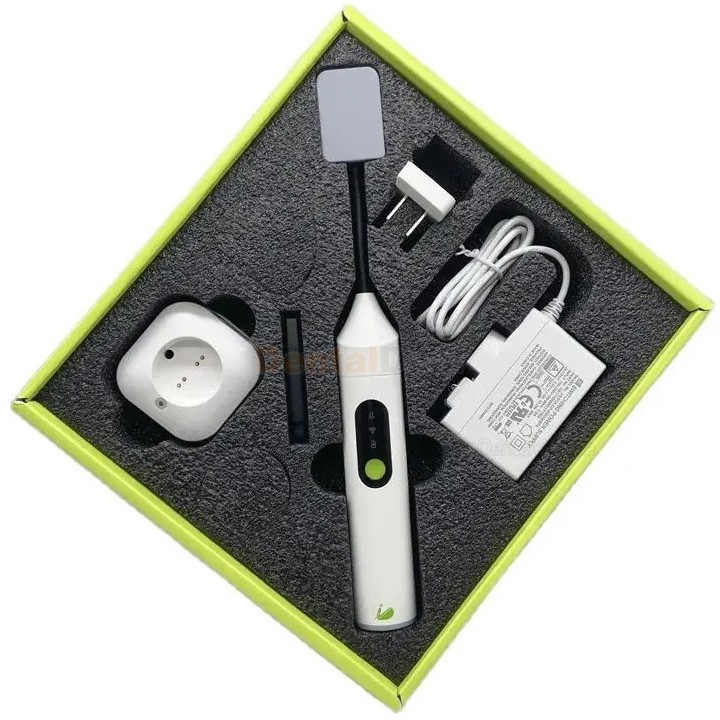

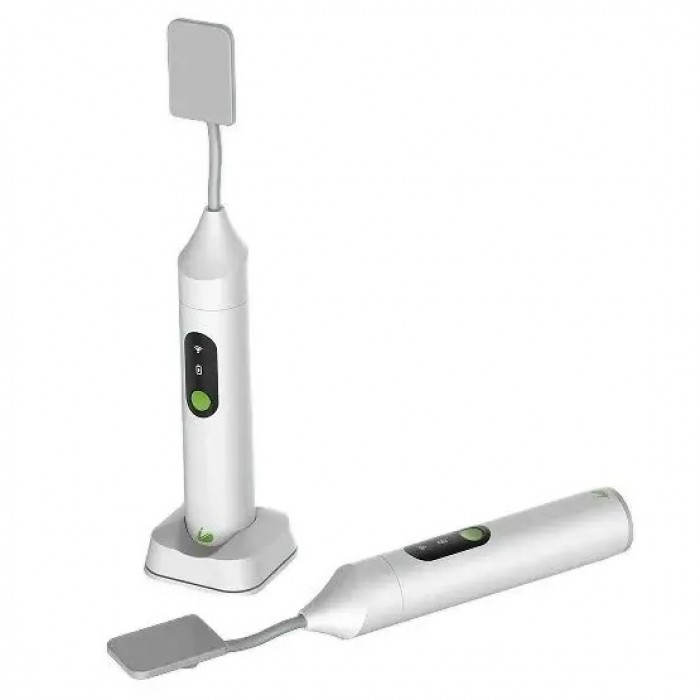

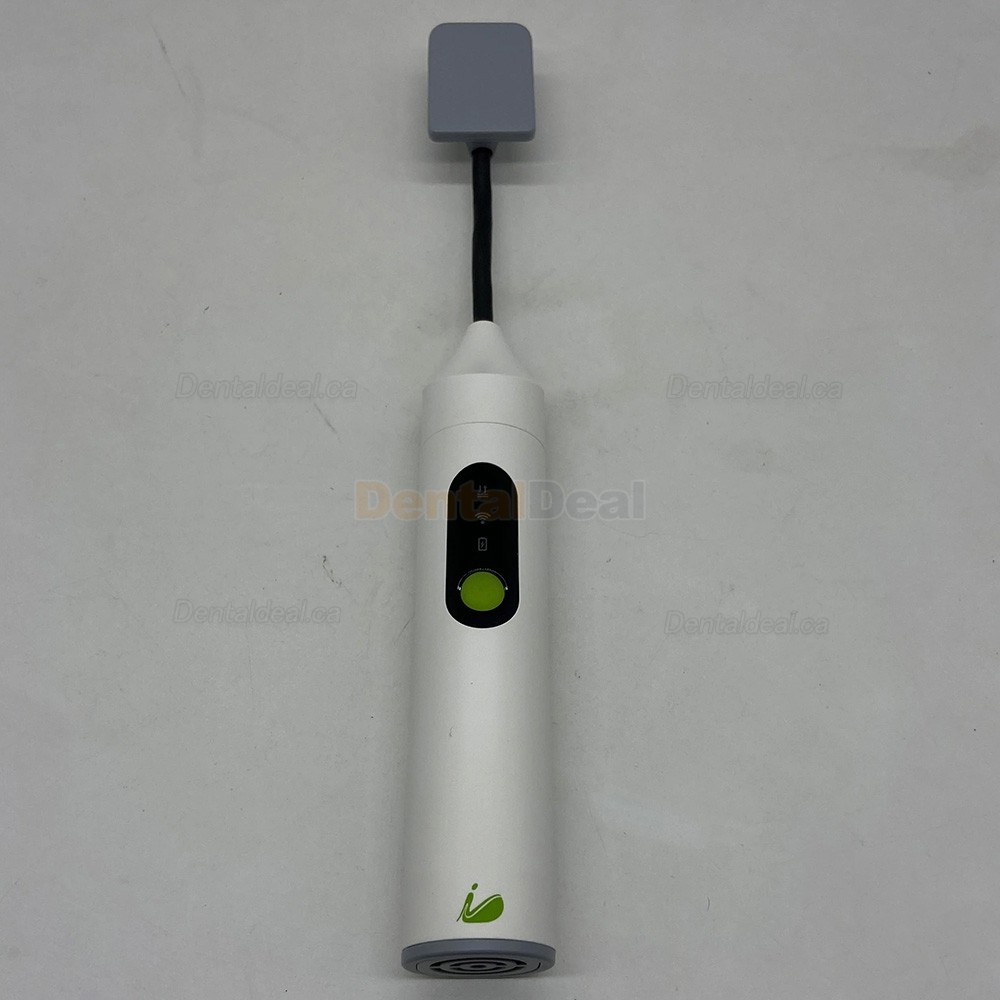

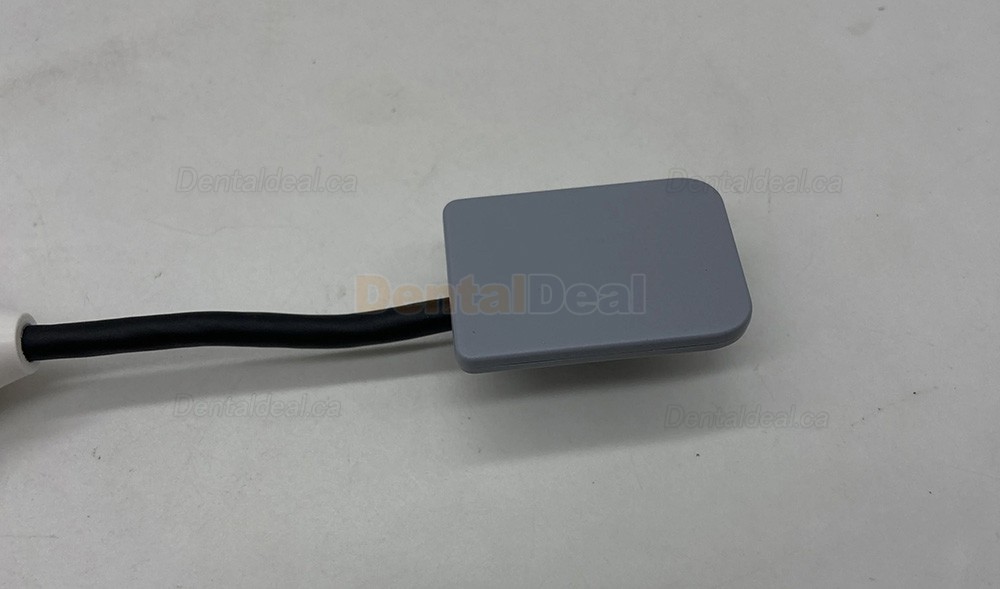

iRay Pluto 0002XW Wireless Dental Intraoral Sensor Digital X-Ray RVG Sensor

The Pluto 0002XW is a wireless intra-oral sensor developed by iRay. It features a 20 µm pixel pitch APS CMOS sensor with a CsI:Tl scintillator. It uses Wi-Fi for image transmission, removing the need for cables and simplifying the imaging process.







CMOS detector technology



Used for adult intra-oral imaging



Wireless data transmission









Detector Type: APS CMOS



Size (mm³): 31 × 45 × 4.5



Scintillator Type: Direct-grown cesium iodide



Pixel Size: 20 µm



Material: Kevlar fiber



Imaging Area: 26 x 36 mm²



X-ray Protection: Pb-shield behind active area



X-ray Exposure Window (s): 5



AD Conversion Bit: 14



Radiation Dose: ≥ 50Gy



X-ray Energy Range: 55～100kV



Data Interface: 5G Wi-Fi



Power: ≤ 0.8 W



Exposure Mode: AED mode



Protection Level: IP68



Operating Temperature: 10 ~ 40°C



Storage Temperature: -10 ~ 60°C



Operating Humidity: 20 ~ 90% RH (no condensation)



Storage Humidity: 10 ~ 95% RH (no condensation)
