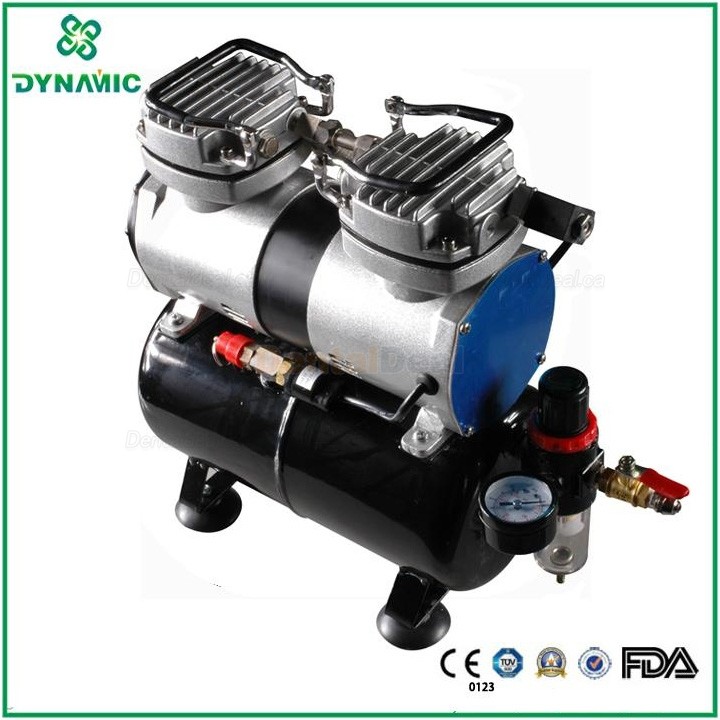

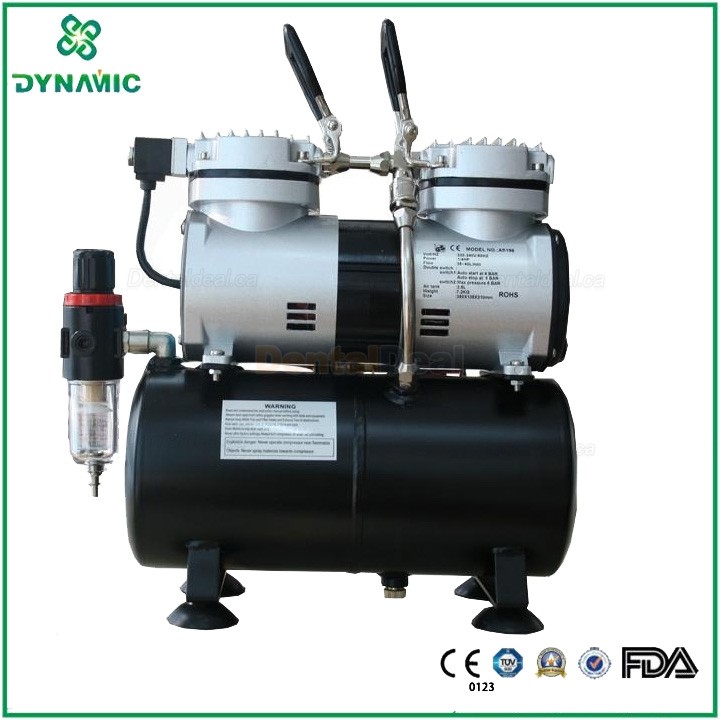

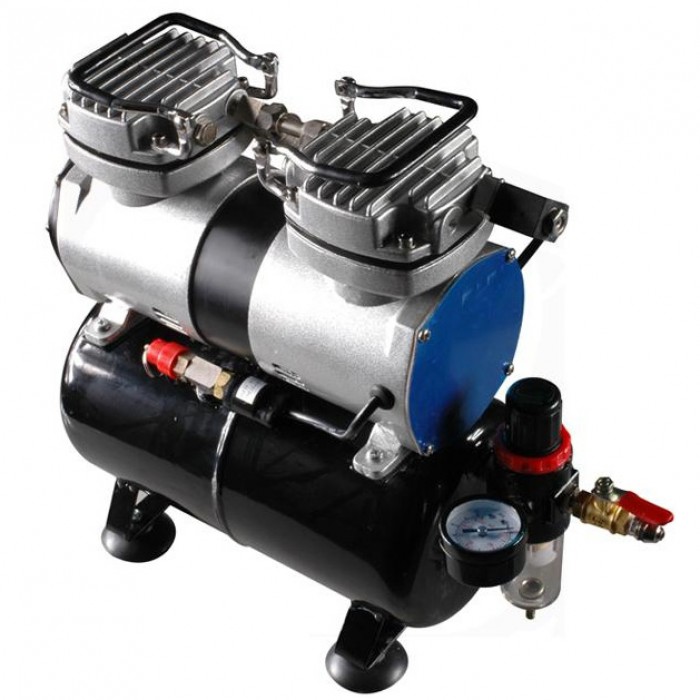

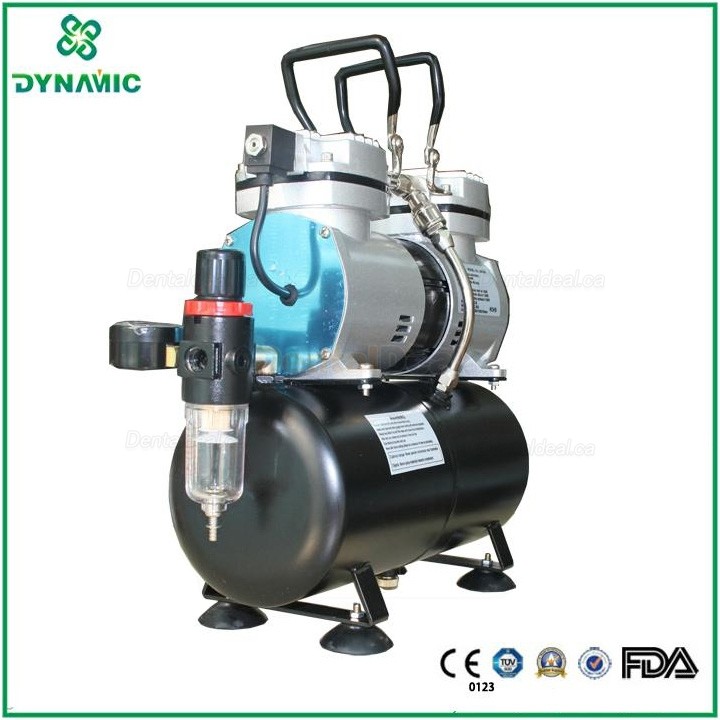

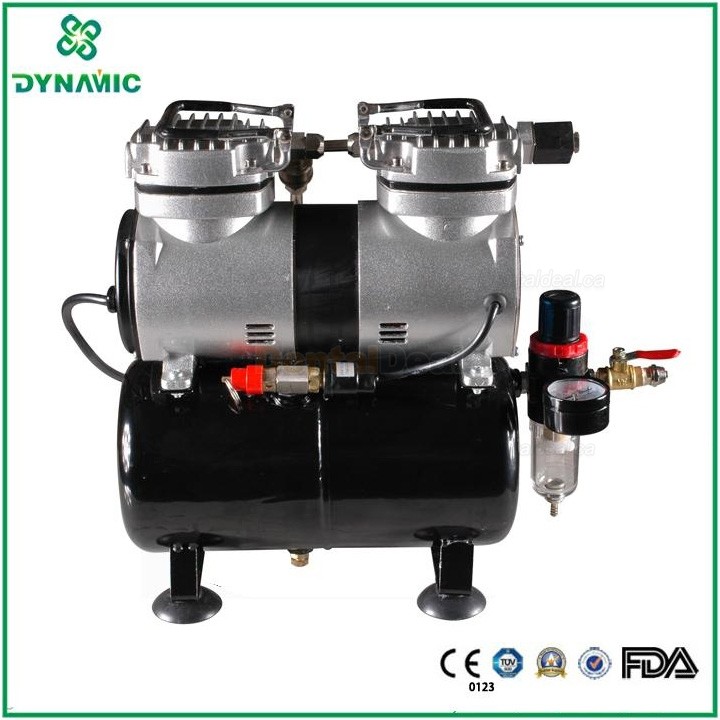

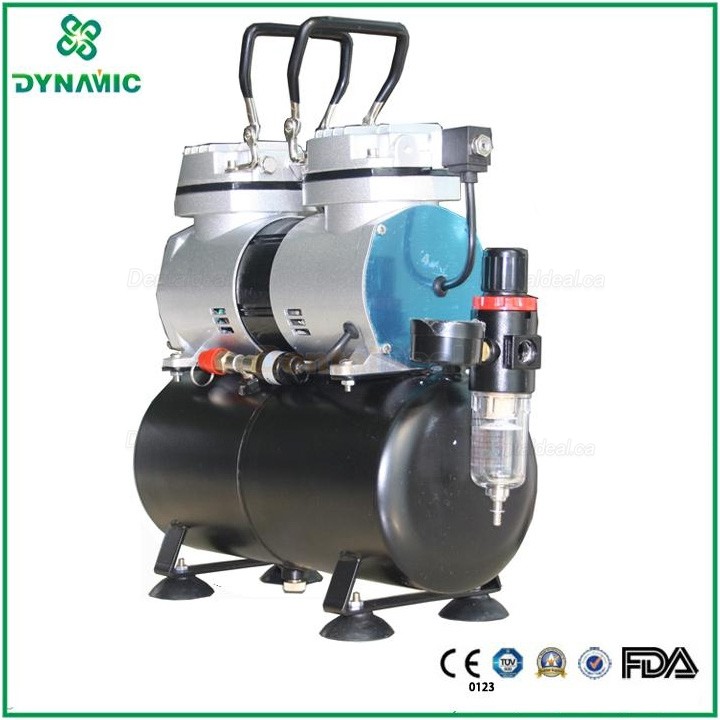

Dynamic TC196 250W(1/3HP) Silent Oil Free Portable Air Compressor

Dynamic TC196 250W(1/3HP) Silent Oil Free Portable Air Compressor

Characteristics:

Oil-free: Operates without lubricated oil.

Low noise: Operates at a noise level below 56dB(A).

Multi-stage filtration: Equipped with multi-stage filtration components.

Thermal protection: The motor is equipped with a thermal control mechanism.

Coated tank interior: The air receiver tank includes an internal epoxy coating.

Pressure control: A pressure switch is installed to regulate power according to pressure levels.

Adjustable pressure: Working pressure can be set to match requirements of various connected equipment.

Maintenance: No lubrication oil required during operation.

Warranty period: 2 years.

Specification:

Voltage: 100-240V

Power: 250W [1/3HP]

Air output per min. /liters30~35L/min

Double switch: Switch 1: Auto stop, start at 3BAR, stop at 4BAR

Switch 2: Max pressure at 6 BAR. Safety va e: Release the air pressure automatically

When the pressure over 6 BAR in the air tank.

Air tank: 3.5L

Pressure adjust range: 0.2~6 BAR

Fitting: Manometer; Pressure regulator; Air filter

Start-up pressure/OFF pressure: 0.55/0.8 Mpa

Connections: With connection 1/8'' BSP

Weight: 7.2KG

Dimension: 320X135X350MM

Work environment temperature: +5~+40 ºC

Work environment humidity: ≤ 80% RH

Work environment atmospheric pressure: 90~106 KPa

Continuous operating time: ≤ 4h
