BEYOND Denwell-4 Gutta Percha Obturation System (Heating Pen + Filling Gun)

BEYOND Denwell-4 Gutta Percha Obturation System (Heating Pen + Filling Gun)

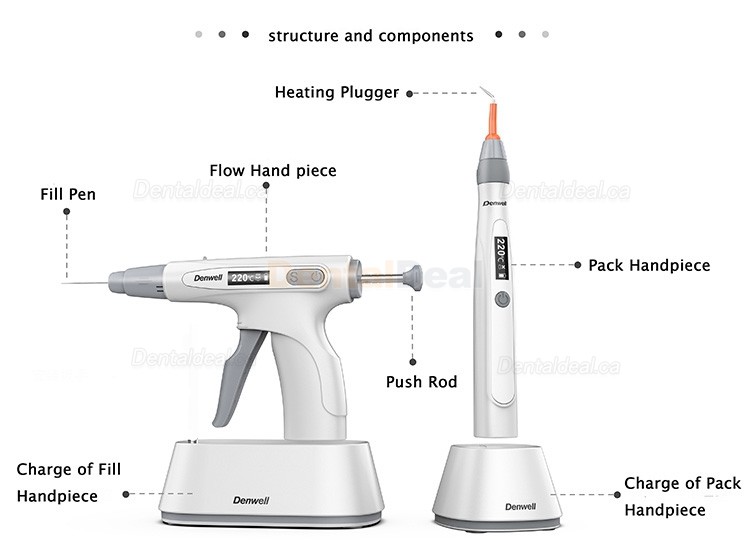

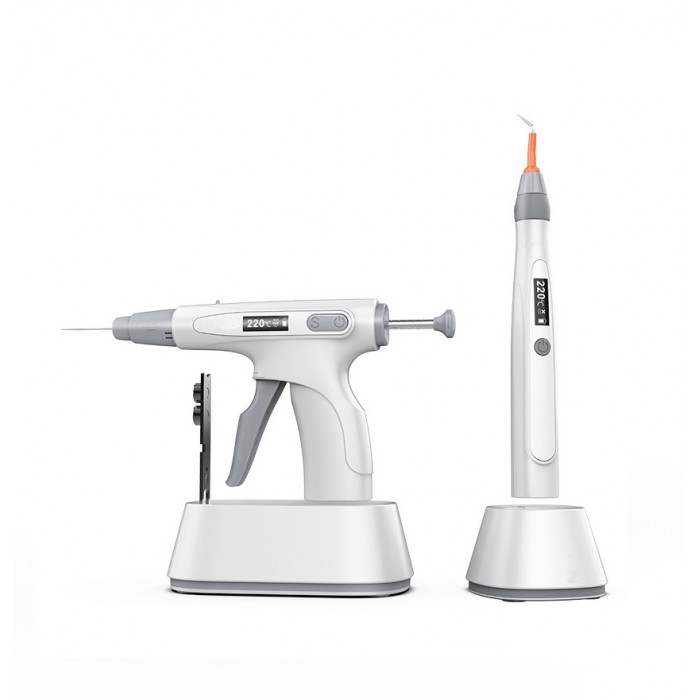

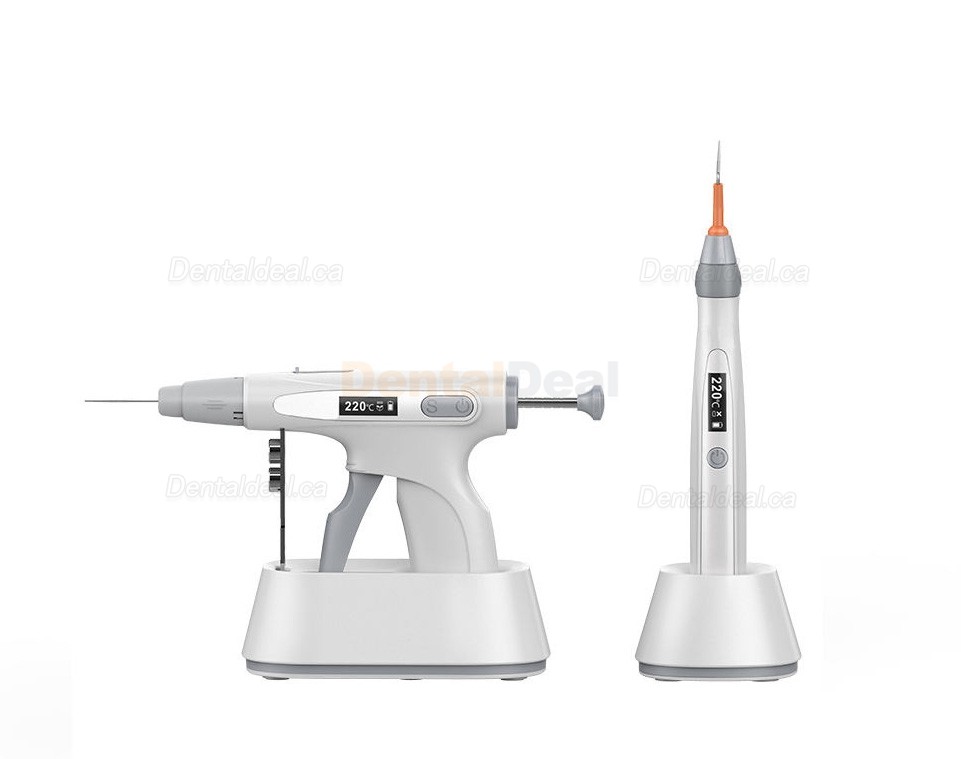

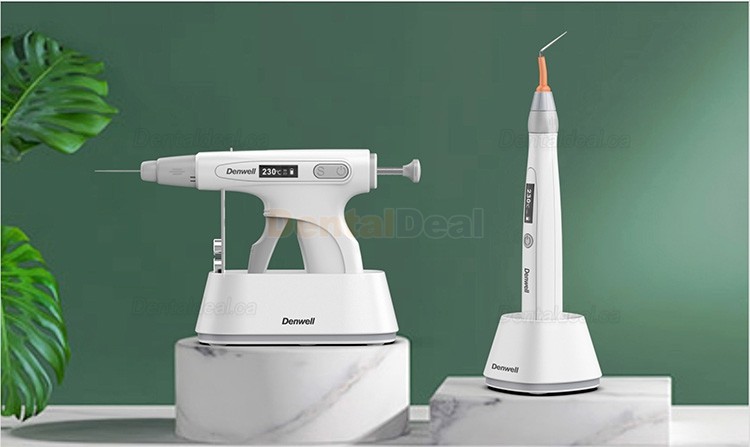

DFill Obturation System

1. D-Pack Heating Pen

Front-end heating structure for targeted thermal application

Heats to set temperature in approximately 1 second

360° ring button for heating control

Automatic power-off after 10 seconds of operation

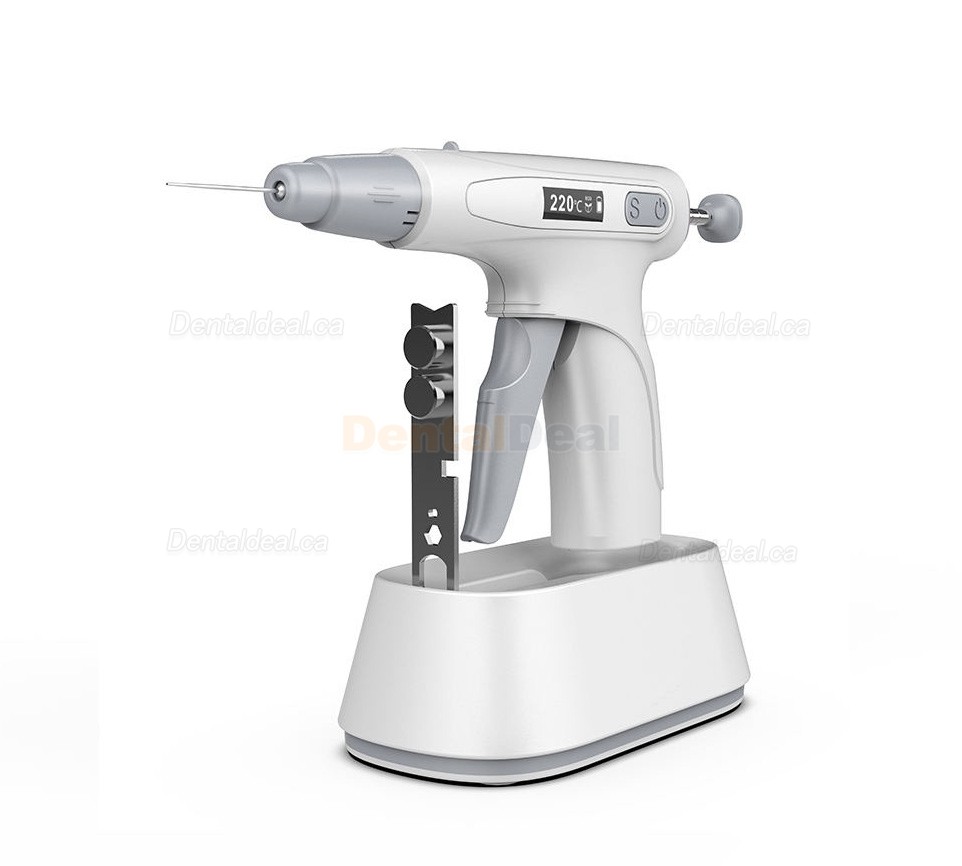

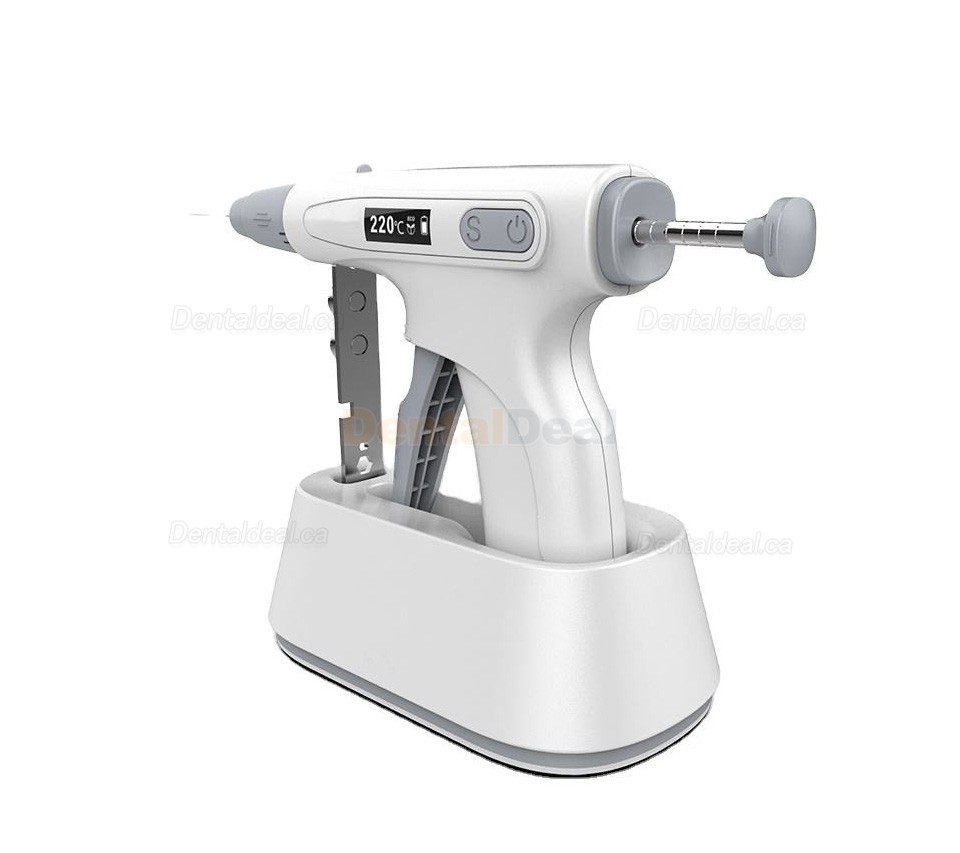

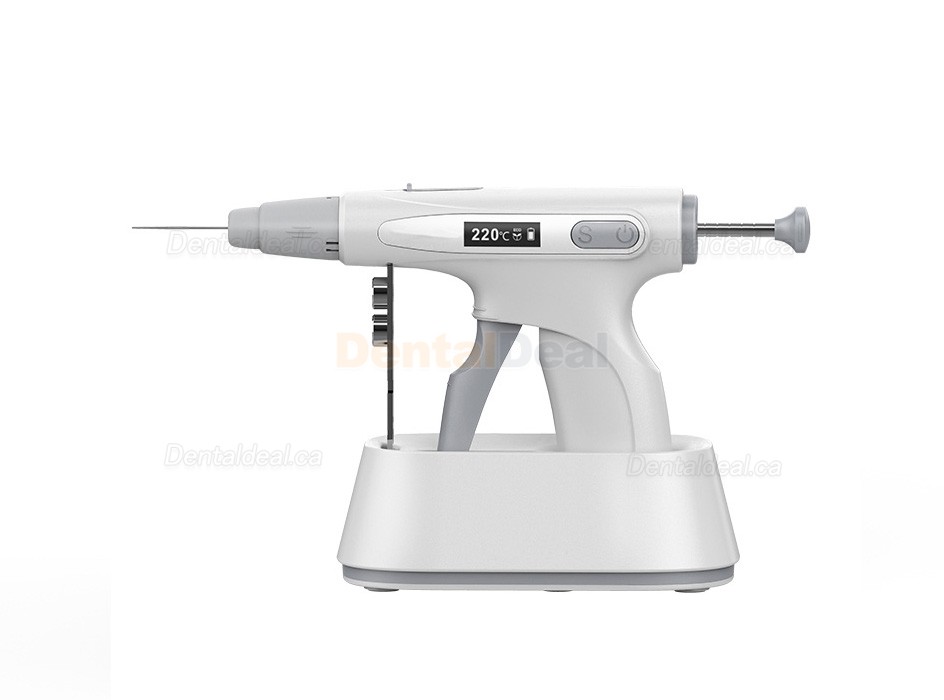

2. D-Fill Filling Gun

Leak-resistant glue path structure

Four selectable temperature settings: 150℃, 180℃, 200℃, 230℃

Includes cleaning mode and energy-saving mode

From room temperature, the heating element reaches approx. 200℃ in around 60 seconds

System Features:

Two-in-one structure for filling and heat compaction

Supplied with four heating needles in different specifications and two in varying lengths

Wireless charging for both devices

After full charge:

Filling gun operates continuously at 200℃ for approximately 60 minutes

User Interface and Design

Heating pen features a ring button for 360° control and a lightweight form factor

Power and Safety Management

Heating pen features a time-limited activation of 10 seconds

Real-time temperature display on the filling gun

If idle for 5 minutes, heating function shuts off automatically

Specifications:

Dimensions:

Heating Pen: 178 × 20 × 28 mm

Filling Gun: 168 × 32 × 112 mm

Weight:

Heating Pen: 85 g

Filling Gun: 186 g

Power Supply:

Adapter Input: AC 100–240V, 50/60Hz

Adapter Output: DC 5V, 1A

Battery:

Heating Pen: DC 3.7V, 2000mAh

Filling Gun: DC 3.7V, 2600mAh

Device Input Power: 16VA
