BEING 302PQ / 302PBQ Dental Fiber Optic High Speed Turbine Handpiece Fit KaVo Coupling 4 / 6 Hole

BEING 302PQ / 302PBQ Dental Fiber Optic High Speed Turbine Handpiece Fit KaVo Coupling 4 / 6 Hole

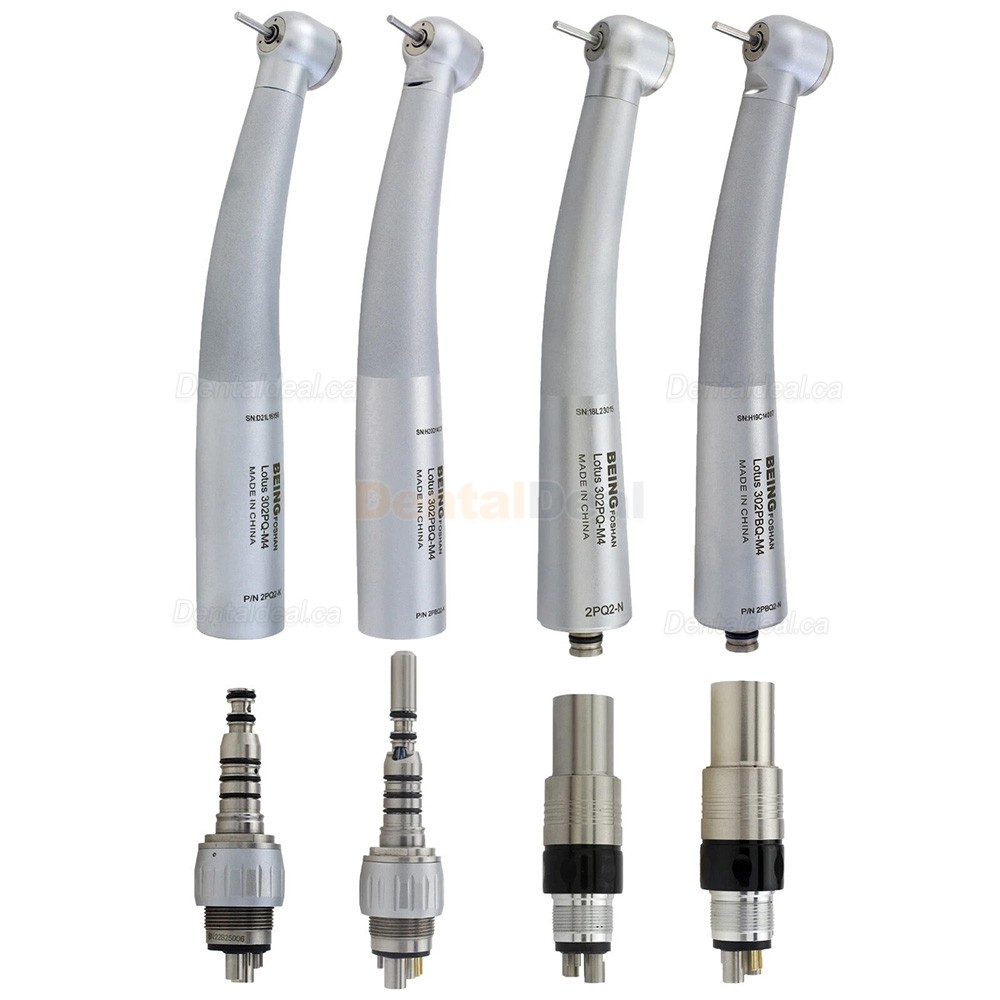

Model Available:

302PQ-K Handpiece(No Fiber Optic)

302PQ-K Handpiece with 4 Hole Coupling

302PBQ-K Handpiece(Fiber Optic)

302PBQ-K Handpiece with 6 Hole Coupling

302PQ-N Handpiece(No Fiber Optic)

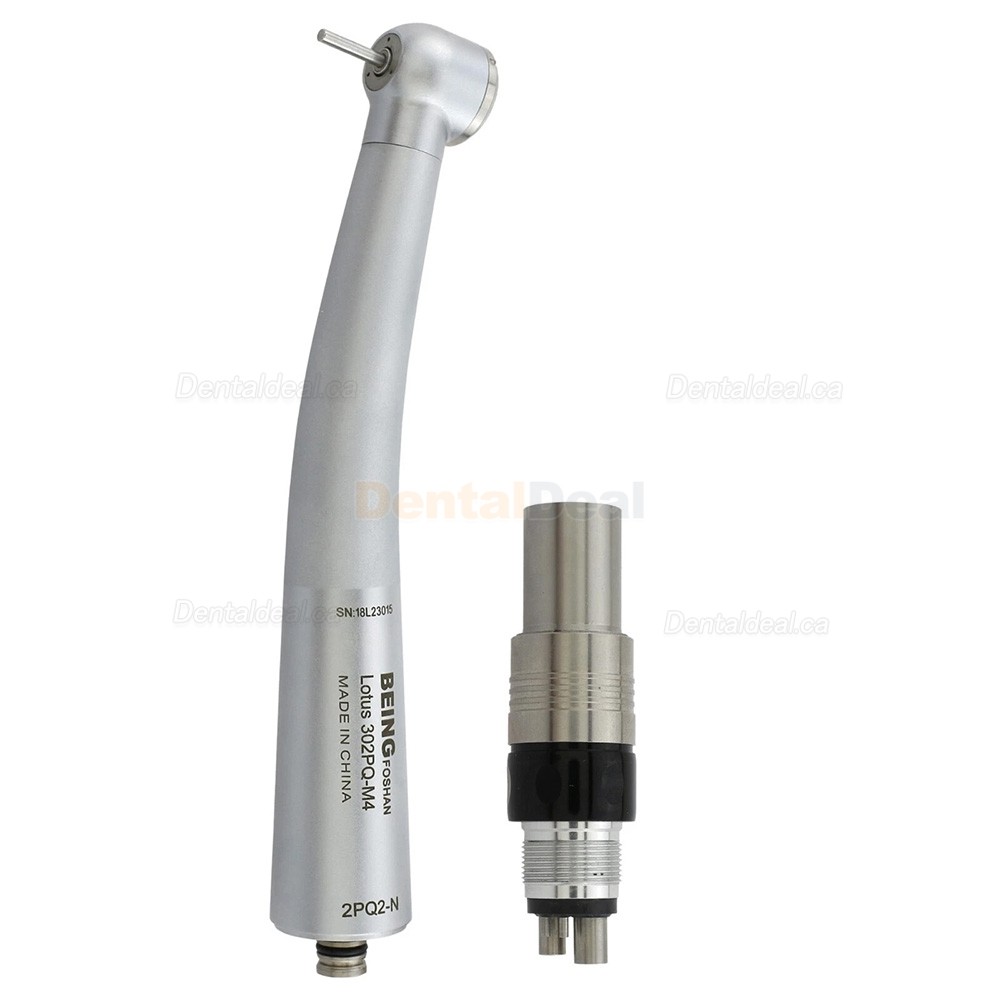

302PQ-N Handpiece with 4 Hole Coupling

302PBQ-N Handpiece(Fiber Optic)

302PBQ-N Handpiece with 6 Hole Coupling

302PQK-QC 4 Hole Coupler Fit Kavo

302PBQK-QC 6 Hole Coupler Fit Kavo

302PQN-QC 4 Hole Coupler Fit NSK

302PBQN-QC 6 Hole Coupler Fit NSK

Replacement Spare Rotor

The difference between the PQ302, PBQ-302, PQ303, PBQ-302?

The PQ302 and PBQ-302 is Torque Head

The PQ303, PBQ-302 is Standard Head.

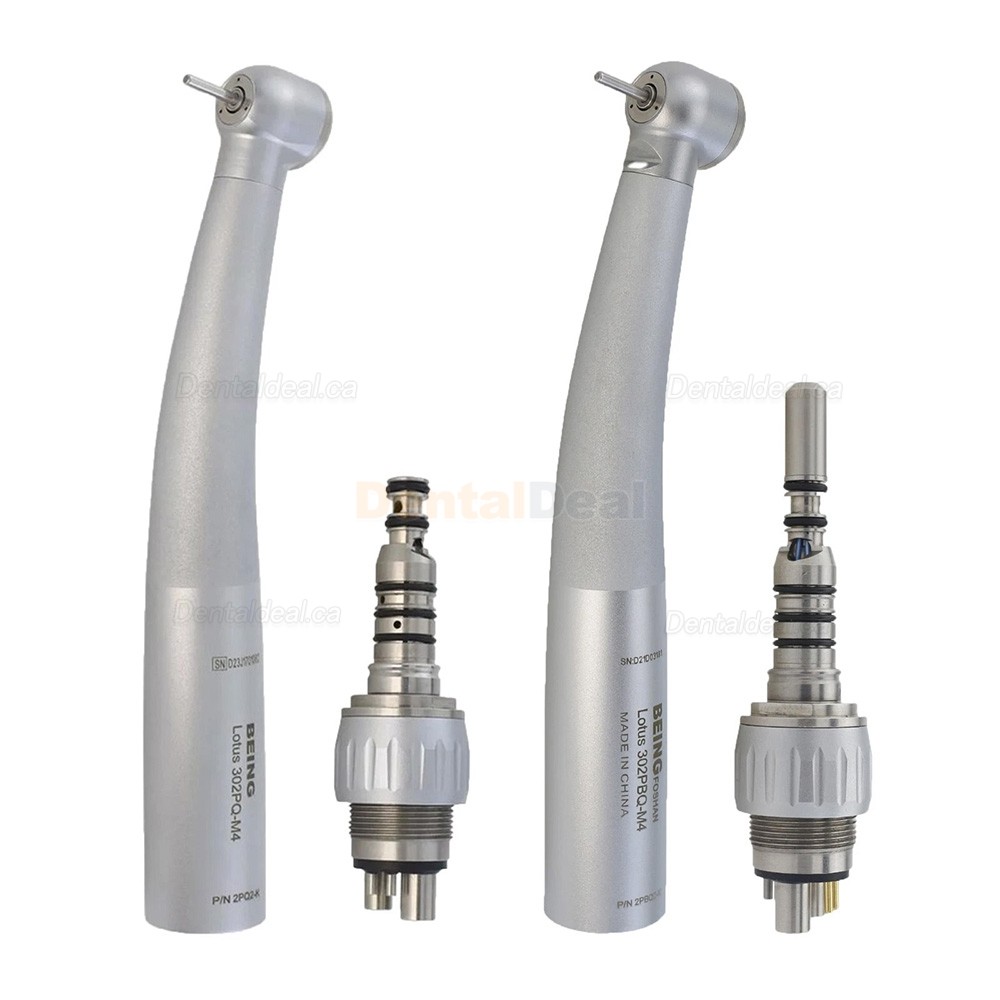

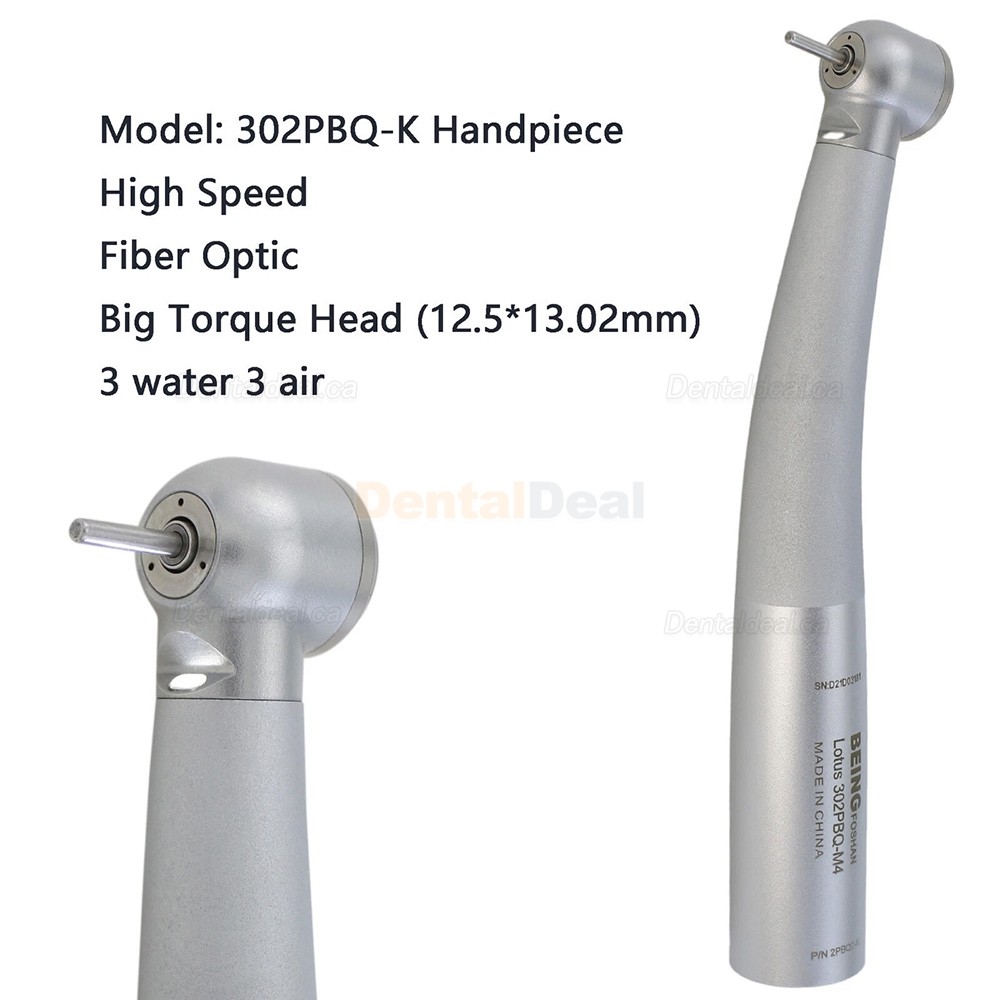

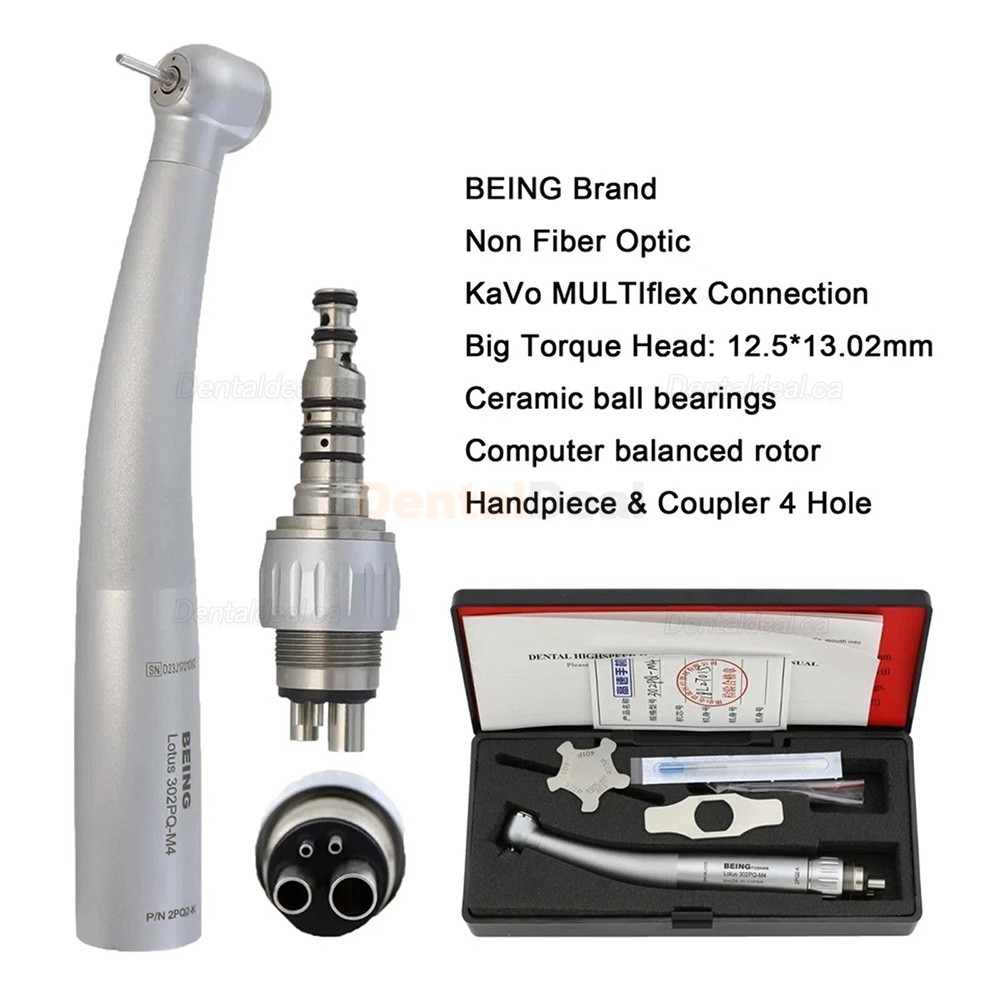

302PQ-K (No Fiber Optic) / 302PBQ-K (Fiber Optic)

Features:

Air turbine handpiece with big torque head design

302PQ-K: Compatible with KAVO MULTIflex / MULTIflex LUX Coupling

302PBQ-K: Compatible with KAVO MULTIflex / MULTIflex LUX LED Coupling

Ceramic ball bearings and computer-balanced rotor

Technical Details:

Head size: 12.5 × 13.02 mm

Rotation speed: 300,000 – 380,000 rpm

Applicable bur size: φ1.59 mm – φ1.6 mm × 21 mm – 23 mm

Noise level: ≤ 70 dB

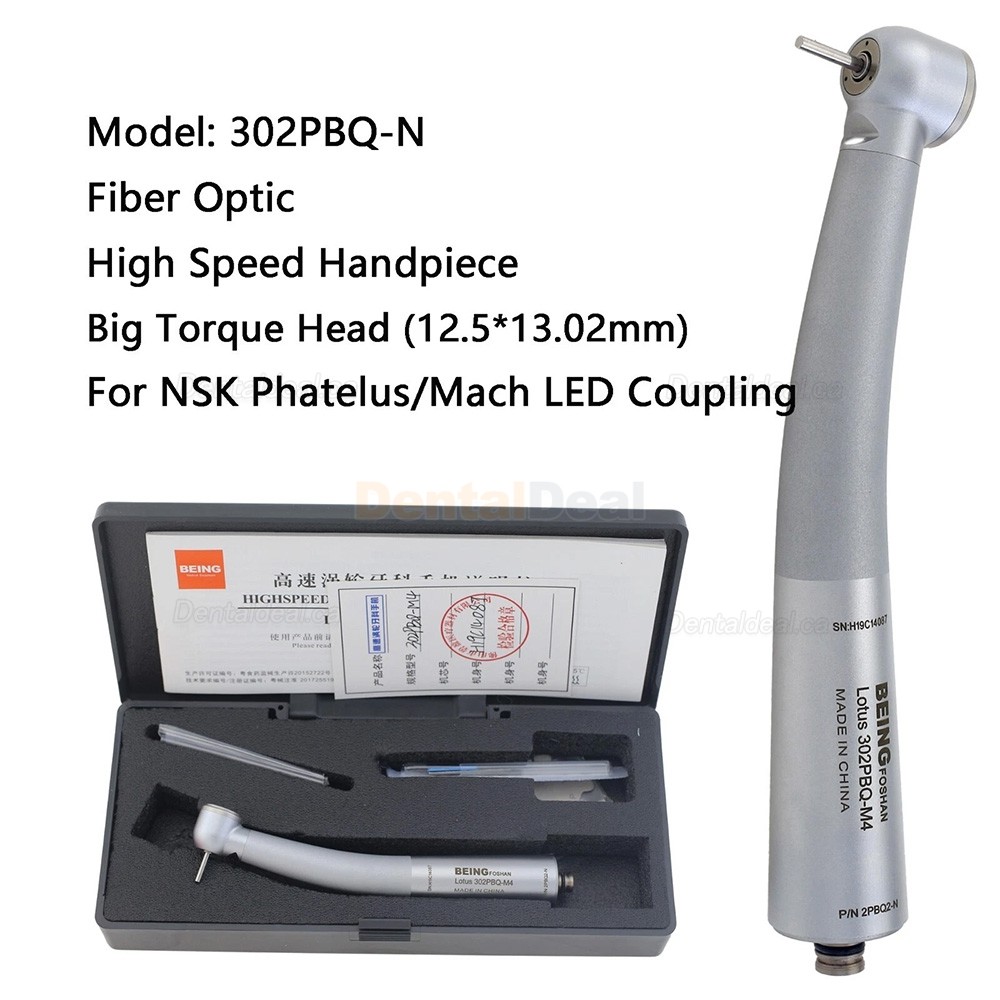

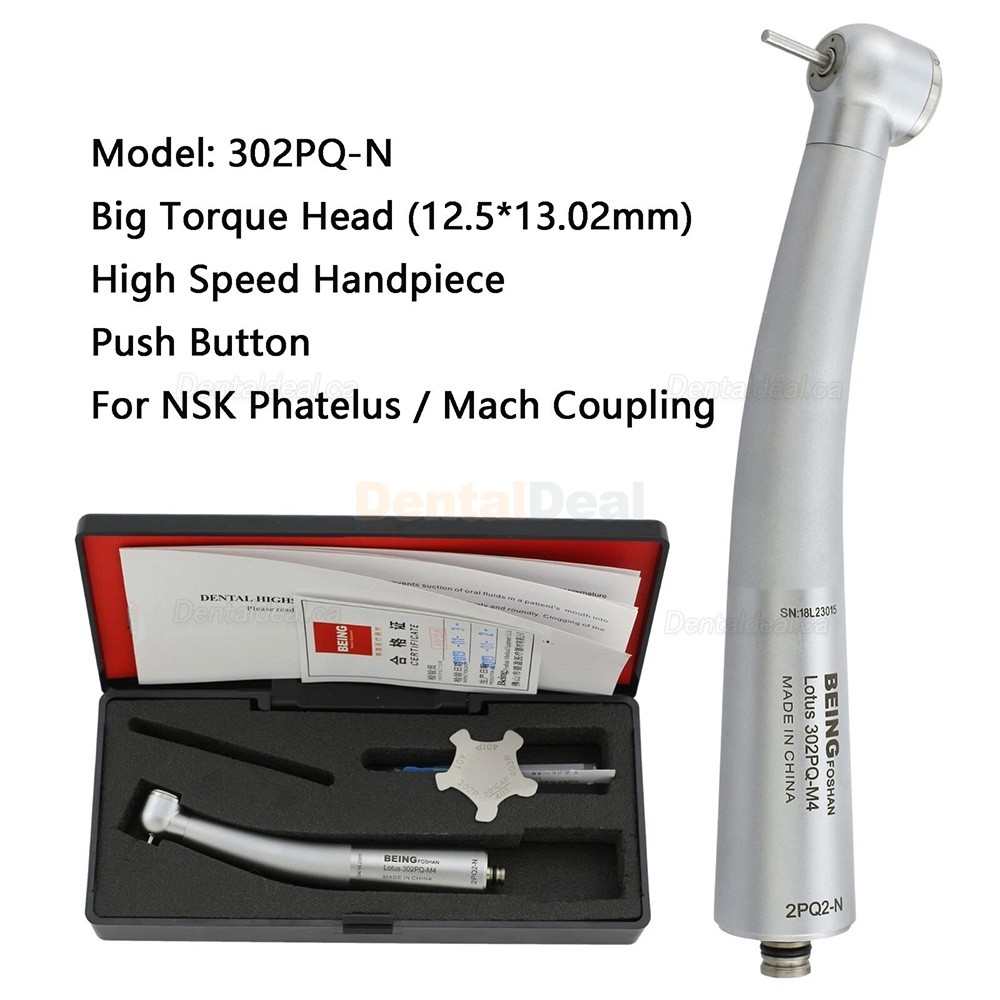

302PQ-N (No Fiber Optic) / 302PBQ-N (Fiber Optic)

Features:

Air turbine handpiece with ergonomic handle

302PQ-N: Compatible with NSK Phatelus / Mach Coupling

302PBQ-N: Compatible with NSK Phatelus / Mach LED Coupling

Autoclavable up to 135℃

Compact structure; Push-button type;

Triple water spray system;

Ceramic ball bearings and computer-balanced rotor

Anti-retraction mechanism helps limit backflow at the spray outlet.

Technical Details:

Rotation speed: 300,000 – 380,000 rpm

Head size: 13.02 × 12.5 mm

Applicable bur size: φ1.59 mm – φ1.6 mm × 21 mm – 23 mm

Light intensity: 25,000 lx

302PQK-QC (4-Hole Coupler Fit KAVO MULTIflex )

BEING brand

Midwest 4-hole type, without LED

Compatible with KAVO MULTIflex / MULTIflex LUX handpieces

Water Control: Adjustable water spray

Installation: Designed for quick connection and disconnection from dental unit tubing;

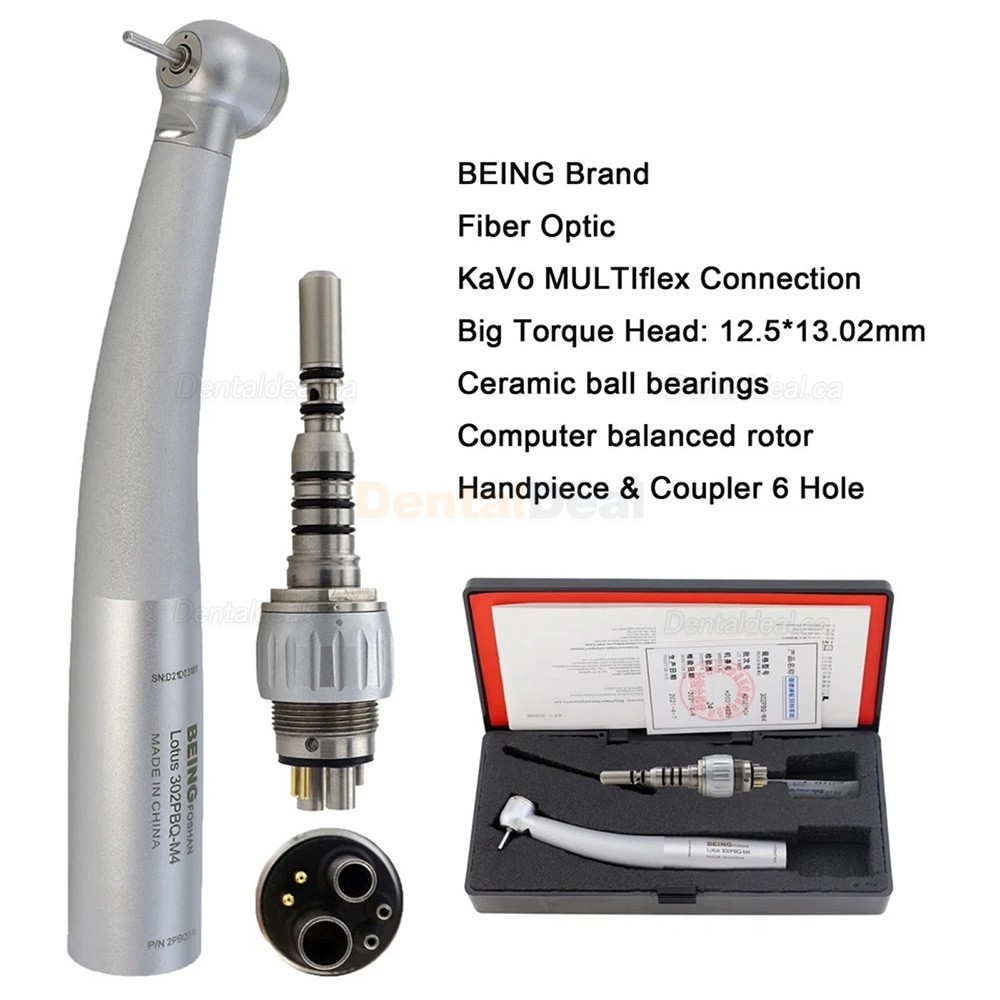

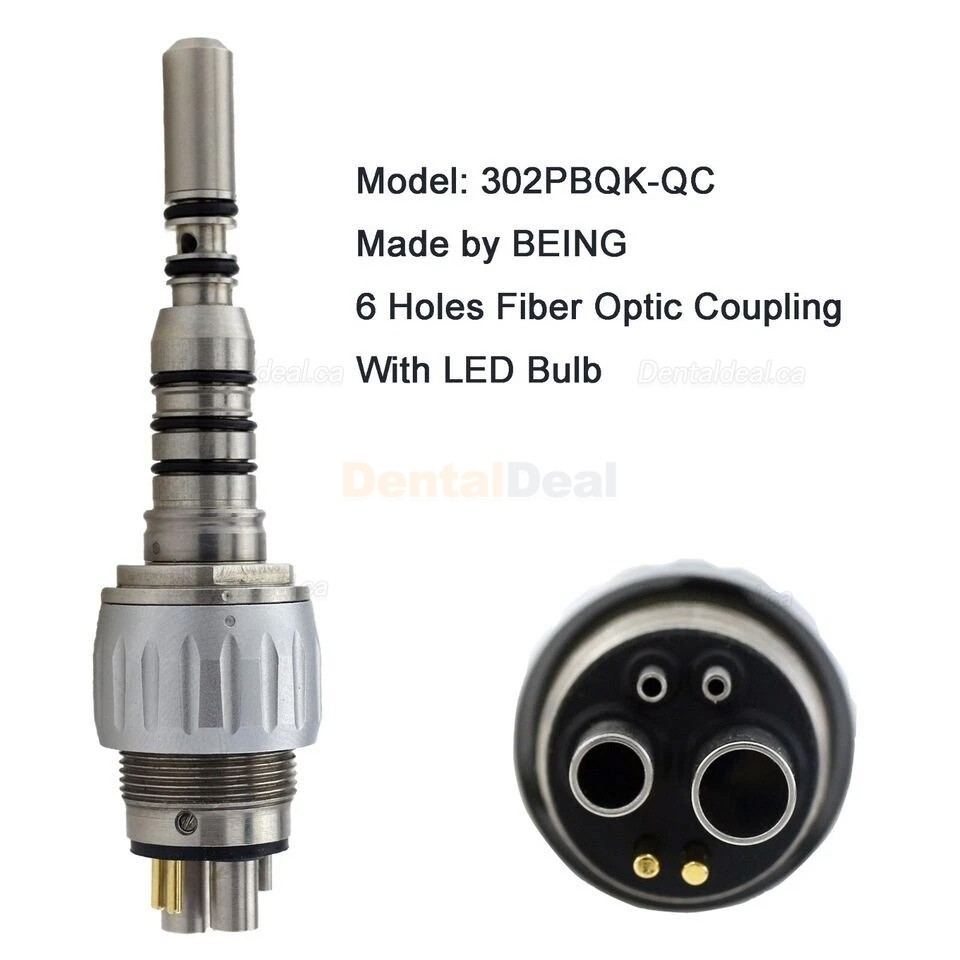

302PBQK-QC (6-Hole LED Coupler Fit KAVO MULTIflex)

BEING brand

6-hole fiber optic coupling

Integrated LED light

Compatible with KAVO MULTIflex / MULTIflex LUX handpieces

Water Control: Adjustable spray flow; maximum when aligned, adjustable to off position

Anti-retraction System: Built-in valve helps limit backflow into the dental unit

302PQN-QC Coupler Fit NSK Phatelus 4 Hole

BEING brand

4-hole configuration (non-LED type)

Compatible with NSK Machlite / Phatelus style quick coupling systems

Water Control: Water spray reaches full flow when alignment marks are level;

Anti-retraction System: Built-in valve helps limit water backflow into the tubing

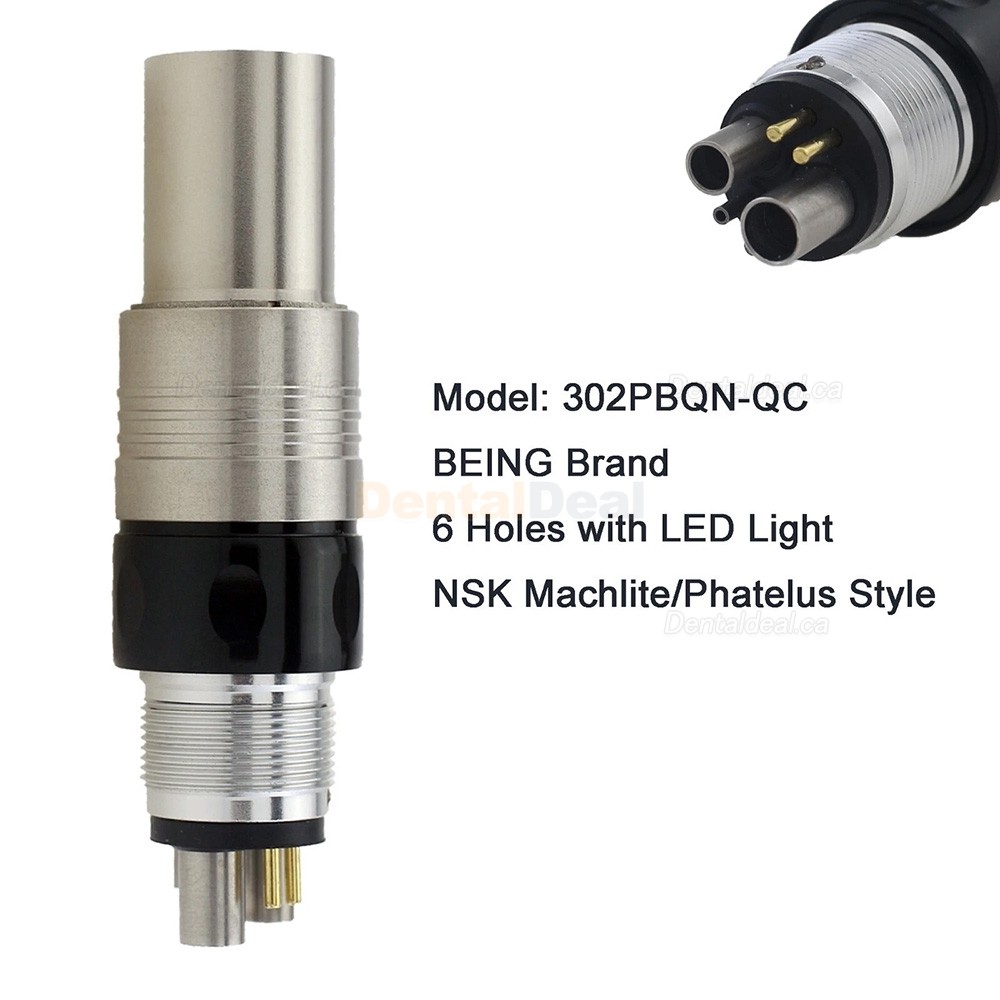

302PBQN-QC Coupler Fit NSK Phatelus 6-Hole with LED

BEING brand

6-hole configuration with integrated LED light

Compatible with NSK Machlite / Phatelus style fiber optic handpieces

Water Control: Water spray reaches full flow when alignment marks are level; flow can be adjusted by rotating the control section

Anti-retraction System: Equipped with a valve to help reduce the risk of water return into tubing

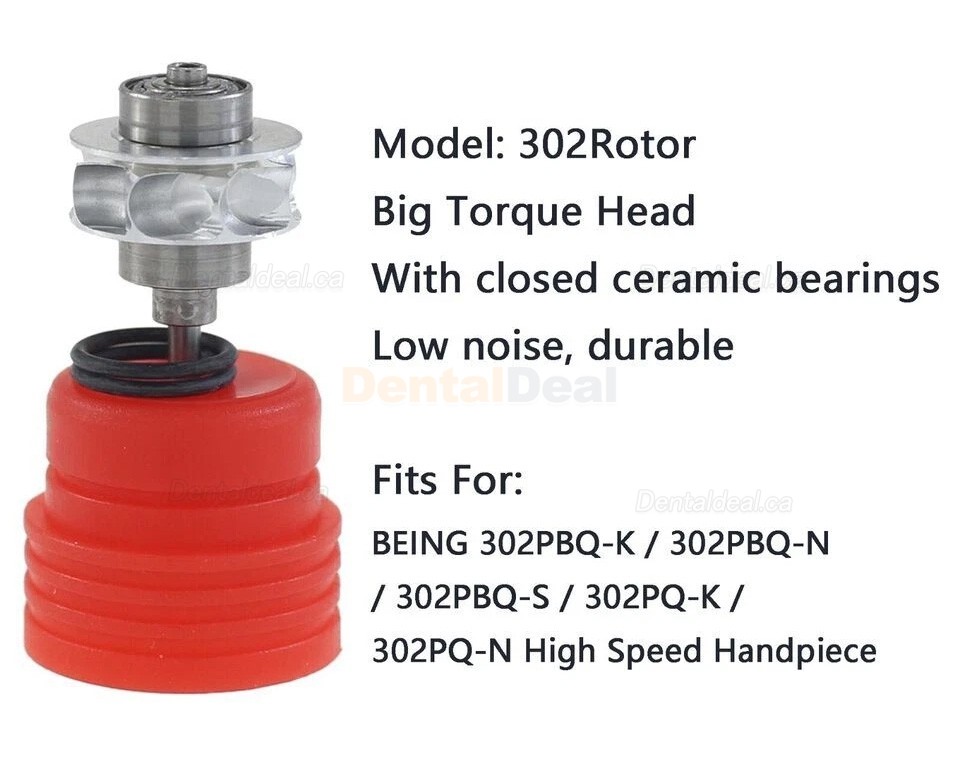

Spare Rotor

Manufactured by BEING

Compatible with 302PBQ-K / 302PBQ-N / 302PBQ-S / 302PQ-K / 302PQ-N / 302PB handpieces (Big Torque Head)

Push-button chuck type

Closed ceramic bearings

Each turbine is dynamically balanced
