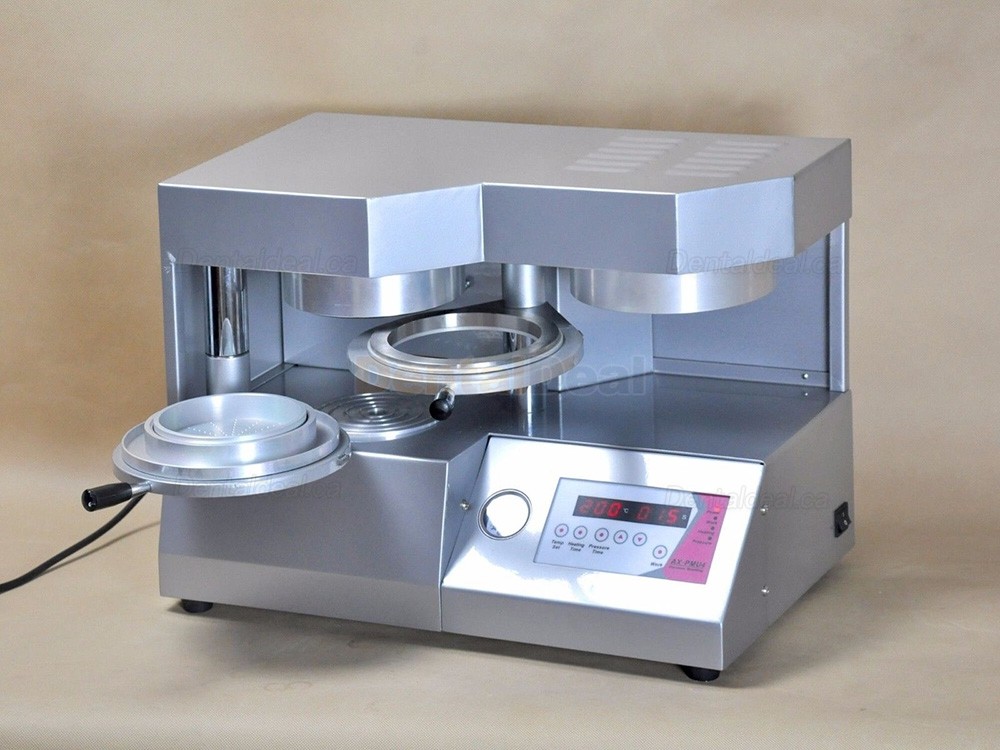

AiXin Dental Lab Pressure Moulding Unit Vacuum Forming Machine

AiXin Dental Lab Pressure Moulding Unit Vacuum Forming Machine

Features:

Dental plastic sheet forming unit.

For orthodontic trays, whitening trays, bruxism guards, and sports mouthguards.

Heating starts after activation.

Vertical pressing onto the model with surface pressure application.

Thermostatic heating control system.

Direct heating of the material side in contact with the model.

Surface temperature: up to 60 °C.

Positive pressure forming.

For material thicknesses up to approximately 4–5 mm.

Technical Data

Power Supply: 220V/110V 50/60Hz

Power Consumption:850W

Heating Time:10~120s (Adjustable)

Pressure Time:10~60s (Adjustable)

Temperature Range:Ambient Temp.~250℃

Pressure Range: 2~5Mpa

Film Diameter:125mm

Film Thickness:0.8~5mm

Optional Accessories:Oilless Air Compresspor

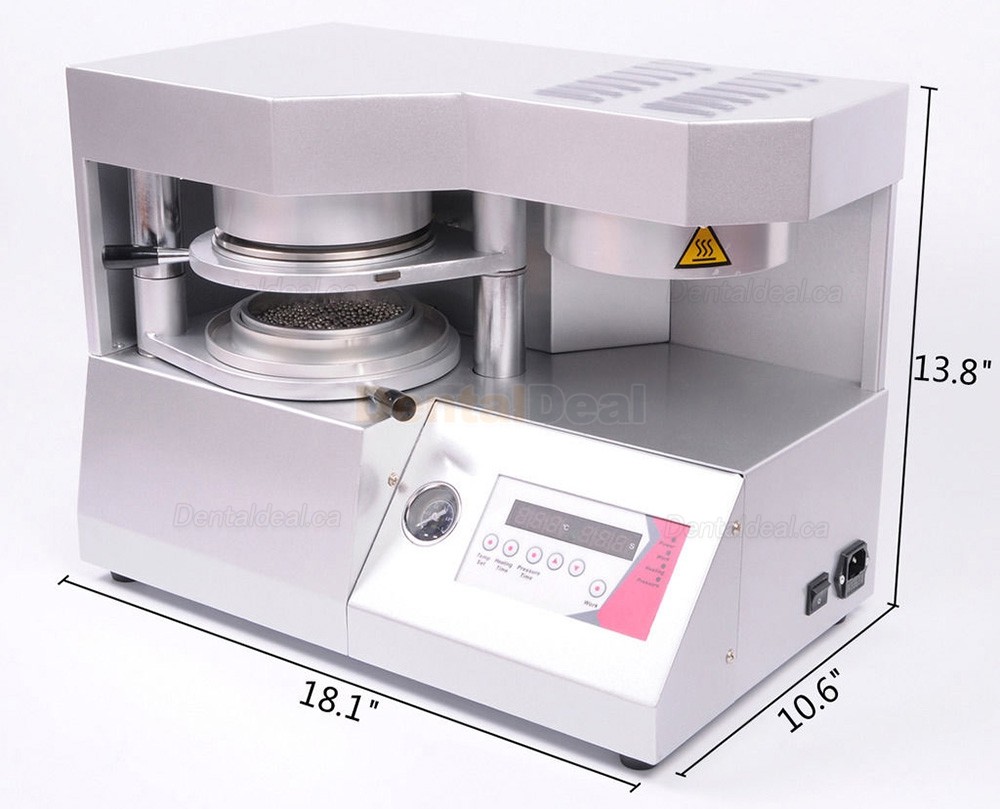

Dimensions: 40cm x 30cm x 22cm (H W D)

Shipping Dimensions: 46cm x 36cm x 30cm (H W D)

Weight: 16kg

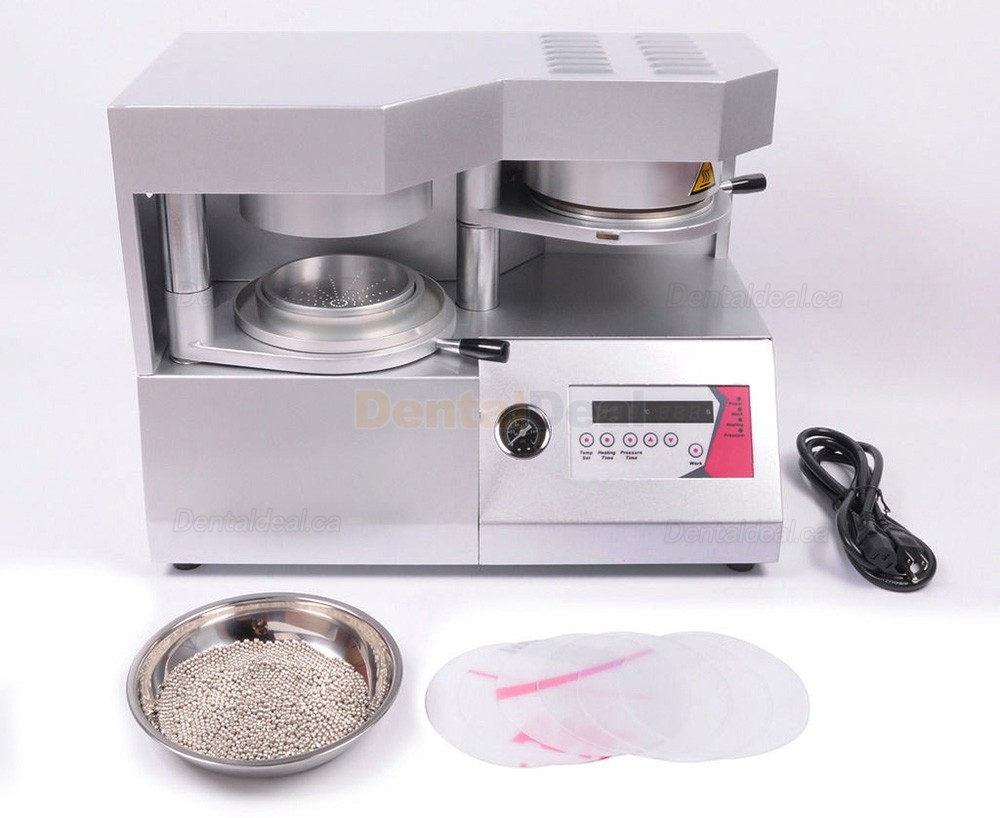

Parts Included

Machine×1

Manual×1
