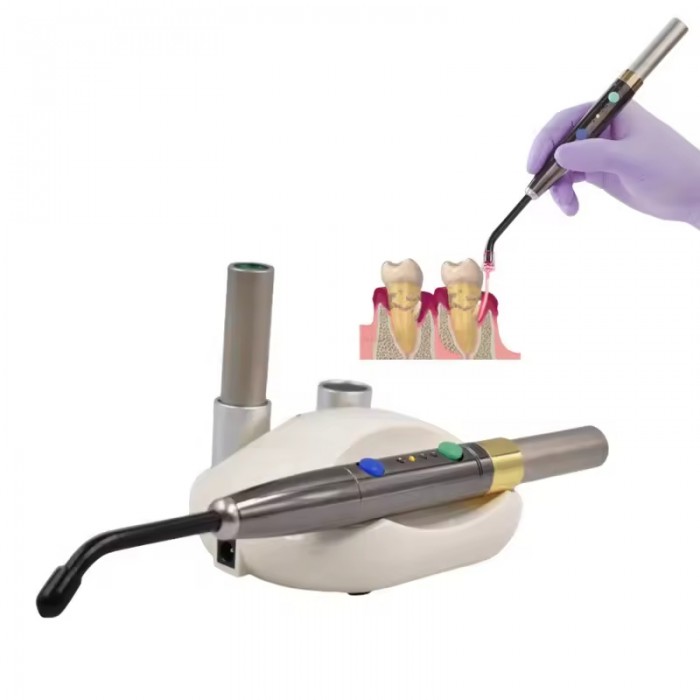

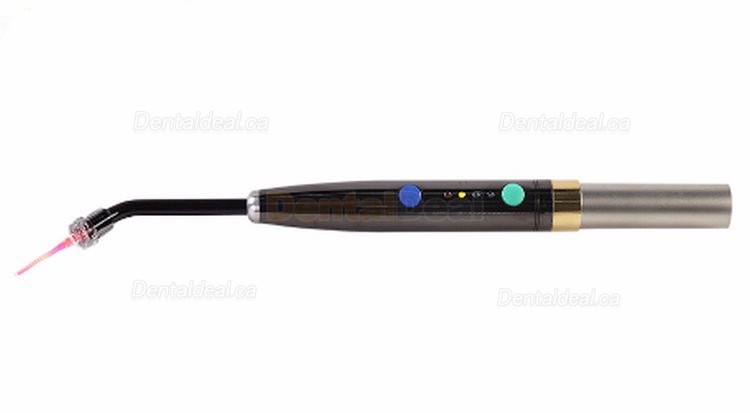

650nm Dental Laser Heal Laser Diode Photo-Activated Disinfection Light Lamp

650nm Dental Laser Heal Laser Diode Photo-Activated Disinfection Light Lamp

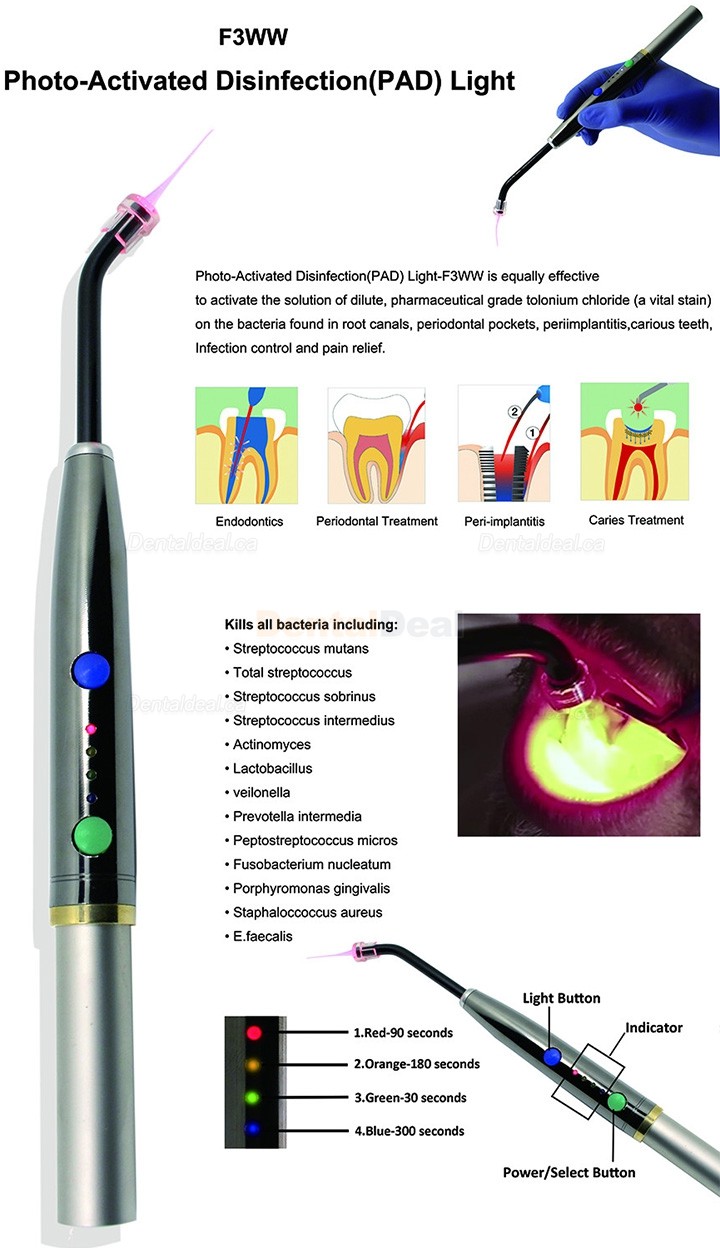

The PAD Light-F3WW provides 650 nm wavelength light for use during dental procedures.

2. Intended Use

The device is used in endodontic and periodontal procedures. Applicable areas include:

Root canals

Periodontal pockets

Carious lesions

Peri-implant sites

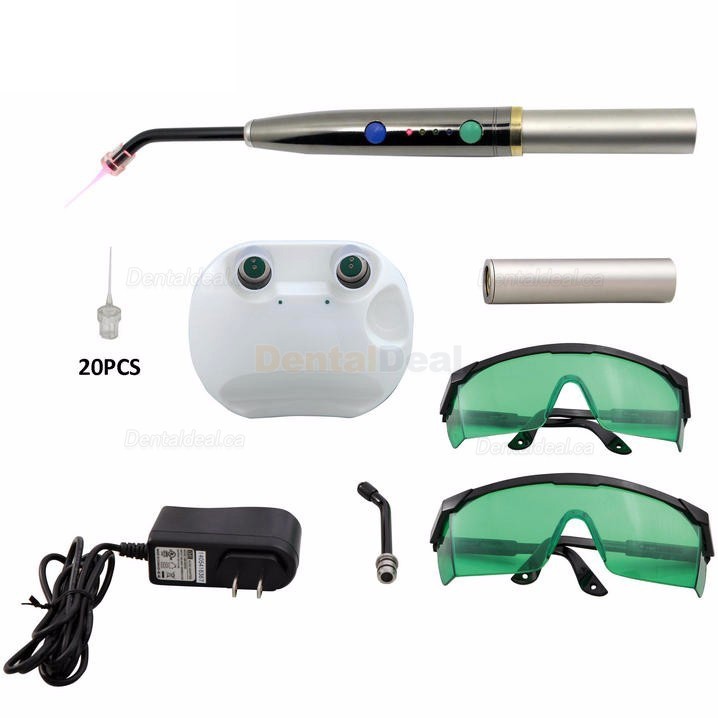

3. Main Components

PAD Light main unit ×1

Magnetic rechargeable batteries ×2

Protective goggles ×2

Light rod ×2

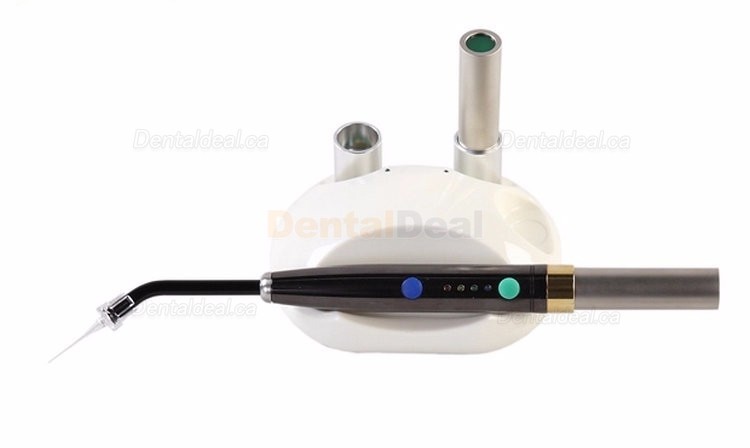

Charging station ×1

Power adapter ×1

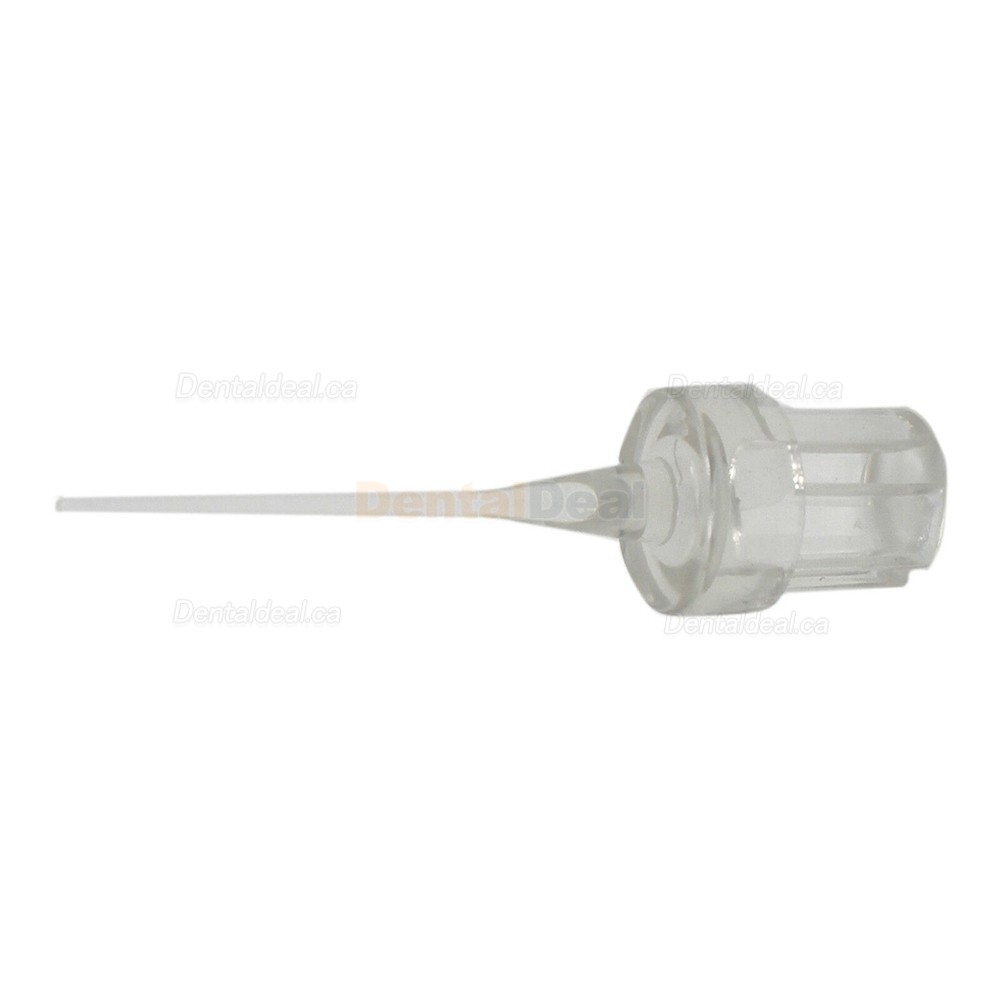

Disposable tips ×20

User guide ×1

4. Pre-use Cleaning

All parts that contact soft tissue must be cleaned and sterilized before patient use.

5. Battery Charging

Charge the unit before first use (approx. 12 hours).

Charging status is indicated by a green light. Full charge time: ~2 hours.

6. Technical Specifications

Wavelength: 650 ± 5 nm

Power Output: 200 mW

Device Diameter:18.5 mm

Device Length (without light rod): 102 mm

Weight: 1100g

Battery Type: 3.7V Lithium-ion, magnetic rechargeable

Output Diameter (Light Rod): 6 mm

Control: Button-operated

Signal: Audible indicator
